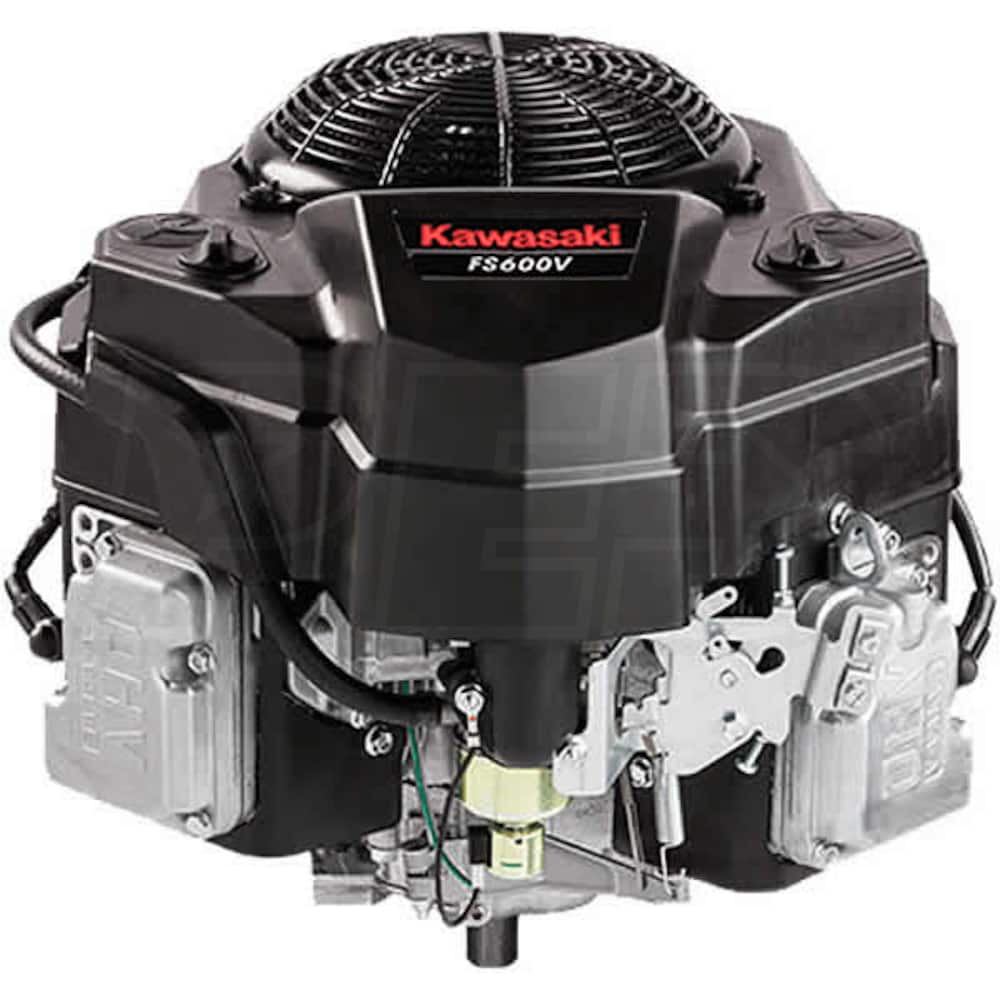

Kawasaki FS600V - 603cc 18.5HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Charging Coil, 1" x 80mm Crankshaft

Model:

FS600V-S00S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kawasaki FS600V - 603cc 18.5HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Charging Coil, 1
Kawasaki FS600V - 603cc 18.5HP OHV V-Twin Electric Start Vertical Engine, No Muffler, Charging Coil, 1" x 80mm Crankshaft
Model: FS600V-S00S
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • FS600V-ES00S - 1" x 80mm Crankshaft, 12V Start, Charging Coil, Separate C & T Controls
  • 3-Year Consumer & 3-Year Commercial Warranty
  • 1" x 80mm Crankshaft For Zero-turn riders, lawn tractors & wide-area walk behind mowers
  • Kawasaki FS600V Series Air-Cooled OHV V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 18.5 HP @3600 RPM
  • 90° V-Twin Cylinder Engineering
  • Smooth, well-balanced power output in a compact package
  • Cast Iron cyclinder liners provide increased protection & longevity
  • Overhead V-Valve (OHV) Technology
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System w/ Spin-On Oil Filter
  • 100-Hour Oil & 200-hour filter change intervals for less maintenance
  • Dual-Element Air Filtration System
  • Foam pre-cleaner element and paper primary filter for more air-particle removal
  • Two-Channel Forced Air-Cooling & Rotating Grass Screen
  • Prevents overheating while boosting efficiency on even those HOT days
  • Electronic Spark Ignition & 12V Electric Starter (Cables Not Included)
  • Auto-Compression realease plus an Internally-vented carbuerator for reliable, consistent starting
  • Also Includes Separate Choke & Throttle Control; Charging Coil
  • Designed to easily integrate with your current mower
  • Model Notes - Includes Engine Mounted Fuel Pump - No Fuel Tank or Muffler Included
  • 50-State CARB Compliant
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FS600V-S00S
specs product image PID-67527
Engine
Engine Series
Kawy FS
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
80.9 Lbs
CC
603 CCs
HP
18.5 HP
Max Torque
32.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.9 Inches
Compression Ratio
8.1:1
Stroke
2.8 Inches
Systems
Starting System
12-Volt (No Key)
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
57.6 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 80mm Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
80mm
Overview
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers

FS600V-ES00S, FS600V-S00S
