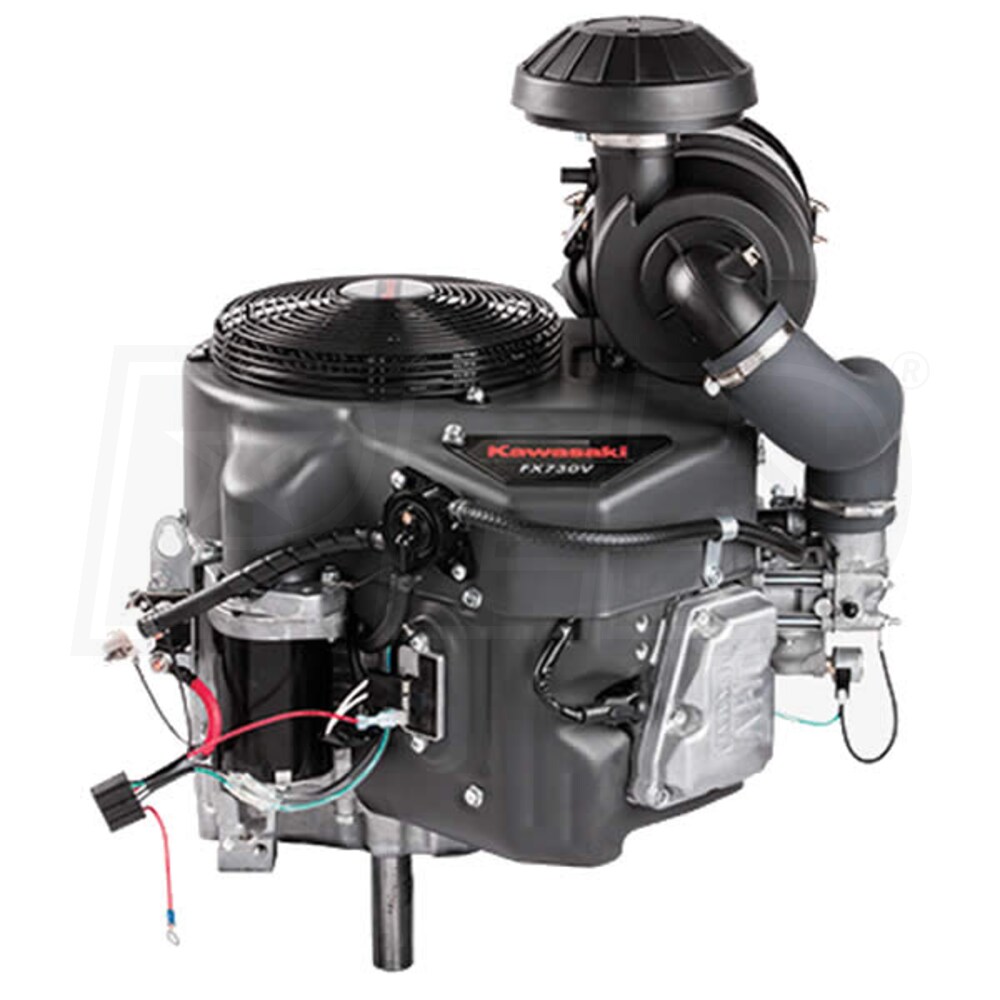

Kawasaki FX730V - 726cc 23.5HP V-Twin Electric Start Vertical Engine, 1-1/8" x 4-9/32" Crankshaft
Model:
FX730V-S00S
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Dale, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- FX730V-ES00S - Shift-Type Electric Start, 15-Amp Charging Coil, HD Can Air Fliter
- Supersedes FX730V-DS00S
- 3-Year Commercial & 3-Year Residental Warranty
- 1-1/8" x 4-9/32" (108.8mm) Crankshaft for commercial mowers & HD industrial/construction equipment
- Top Of The Line Kawasaki FX730 Series Air-Cooled V-Twin Critical Power Engine
- SAE Certified for consistent, accurate horsepower; Produces 23.5HP @3600 RPM
- 90° V-Twin Cylinder Engineering & Overhead V-Valve (OHV) Technology
- Smooth, well-balanced power output in a compact package
- For maximum power, quiet operation & ensures low emissions
- Pressurized Lubrication System & Spin-On Oil Filter
- Cast Iron cyclinder liners provide increased protection & longevity
- FX-Series Multi-Stage Dual-Element Canister Air Filtration System
- Never fear day-long continuous operation again
- Two-Channel Forced Air-Cooling Design
- Prevents overheating while boosting efficiency on even those HOT days
- Flywheel Magneto Ignition System & Heavy-Duty (Shift-Type) Electric Starter
- Auto-Compression realease plus an for reliable, consistent starting
- Internally-Vented Carbuerator w/ Fuel Shut-Off Solenoid
- More percise air/fuel mix for efficient operation in a wide range of temps.
- Metal Engine Cover w/ Integrated Clean-Out Ports
- Rotating metal grass chopper screen keeps the engine breathing "freely"
- 15-Amp Charging Coil, Separate Choke/Throttle Cables & High Capacity Fuel Pump
- Designed to easily integrate with your current mower
- Note - FX V-Twin Series Engines - Fuel Tank & Muffler NOT Included
- 50-State CARB Compliant
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
FX730V-S00S
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
101.4 Lbs
CC
726 CCs
HP
23.5 HP
Max Torque
39.9 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
3.0 Inches
Compression Ratio
8.2:1
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
70.4 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4-9/32 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4-9/32"
Overview
Weight
101.4 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers
FX730V-ES00S, FX730V-S00S
