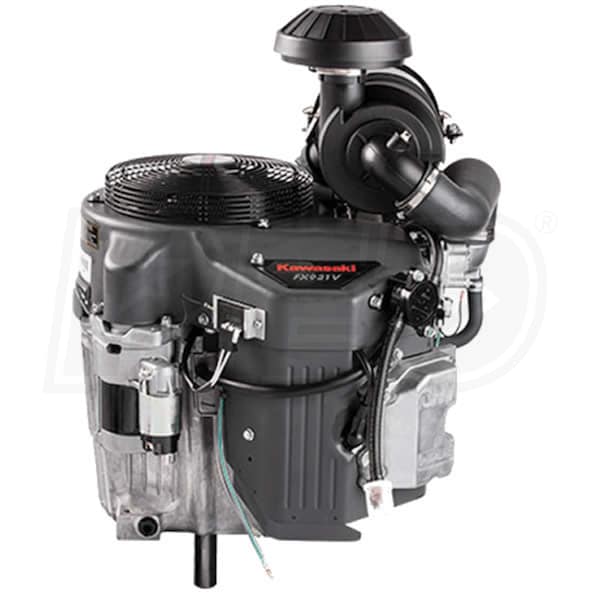

Kawasaki FX921V - 999cc 31HP V-Twin Electric Start Vertical Engine, 1-1/8" x 3-15/16" Crankshaft

Model:

FX921V-S00S

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kawasaki FX921V - 999cc 31HP V-Twin Electric Start Vertical Engine, 1-1/8
Kawasaki FX921V - 999cc 31HP V-Twin Electric Start Vertical Engine, 1-1/8" x 3-15/16" Crankshaft
Model: FX921V-S00S
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Dale, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • FX921V-FS00S - Shift-Type Electric Start, 15-Amp Charging Coil, HD Can Air Fliter
  • Supersedes FX921V-ES00S
  • 3-Year Commercial & 3-Year Residental Warranty
  • 1-1/8" x 3-15/16" (100mm) Crankshaft for commercial mowers & HD industrial/construction equipment
  • Top Of The Line Kawasaki FX921 Series Air-Cooled V-Twin Critical Power Engine
  • SAE Certified for consistent, accurate horsepower; Produces 31HP @3600 RPM
  • 90° V-Twin Cylinder Engineering & Overhead V-Valve (OHV) Technology
  • Smooth, well-balanced power output in a compact package
  • For maximum power, quiet operation & ensures low emissions
  • Pressurized Lubrication System & Spin-On Oil Filter
  • Cast Iron cyclinder liners provide increased protection & longevity
  • FX-Series Multi-Stage Dual-Element Canister Air Filtration System
  • Never fear day-long continuous operation again
  • Two-Channel Forced Air-Cooling Design
  • Prevents overheating while boosting efficiency on even those HOT days
  • Flywheel Magneto Ignition System & Heavy-Duty (Shift-Type) Electric Starter
  • Auto-Compression realease plus an for reliable, consistent starting
  • Internally-Vented Carbuerator w/ Fuel Shut-Off Solenoid
  • More percise air/fuel mix for efficient operation in a wide range of temps.
  • Metal Engine Cover w/ Integrated Clean-Out Ports
  • Rotating metal grass chopper screen keeps the engine breathing "freely"
  • 15-Amp Charging Coil, Separate Choke/Throttle Cables & High Capacity Fuel Pump
  • Designed to easily integrate with your current mower
  • Note - FX V-Twin Series Engines - Fuel Tank & Muffler NOT Included
  • 50-State CARB Compliant
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

FX921V-S00S
specs product image PID-71527
Engine
Engine Series
Kawy FX
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
138 Lbs
CC
999 CCs
HP
31 HP
Max Torque
54.3 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.5 Inches
Stroke
3.15 Inches
Compression Ratio
8.4:1
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Flywheel Magneto
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
80 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Twin Barrel
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 3-15/16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
3-15/16"
Overview
Weight
138 Pounds
Made in USA
Yes
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Additional Model Numbers

FX921V-FS00S, FX921V-S00S
