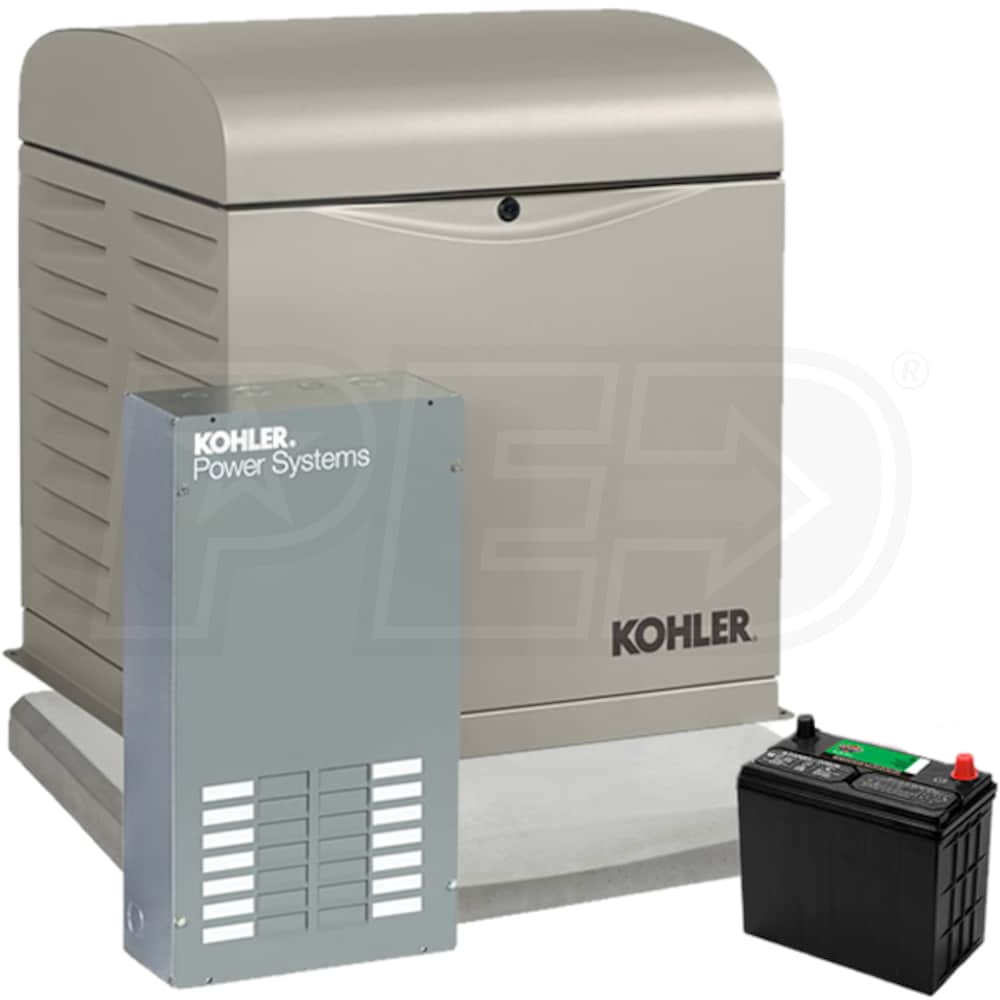

Kohler 10RESVL - 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch) + 3" Mounting Pad + Battery

Model:

EGD-10RESVL-100LC12-KIT

Write A Review
$4,519.98
rebate icon
$100 Mail-In Rebate - Click Here For Printable Form
$100 Referral Rebate
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Dec 4th
Shipping to60601
synchrony card logo
$80 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler 10RESVL - 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch) + 3
Kohler 10RESVL - 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch) + 3" Mounting Pad + Battery
Model: EGD-10RESVL-100LC12-KIT
$4,519.98
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Emergency

Style

Standby (Air Cooled)

Run Watts

10,000 Rated Watts

Voltage

120/240 Single-Phase

Fuel

LP/Natural Gas

Engine

Kohler

  • Includes 100-Amp Indoor ATS w/ 12-Space Load Center*
  • Kohler Series 7000 V-twin OHV Engine
  • Powerful and reliable engine with hydraulic valve lifters
  • Powerful Performance w/ PowerBoost™ Technology
  • Greater motor-starting ability for large electrical loads
  • Premium Power Quality (+/-1% Voltage Regulation)
  • Protects sophisticated electronics with low distortion (<5%THD)
  • Fast Response Time
  • Kohler™ generators restore power in as little as 10 seconds
  • New Silencer Reduces Sound Levels & Provides Quiet Operation
  • Maintains neighborhood solitude - approx 71 dB(A) Max
  • RDC2 Controller
  • ATS status via LED lights on controller; Built-In 2.5A Battery Charger
  • Glare-resistant, 2-line 16-character display - No More Codes
  • Real time clock allows you to easily set weekly exercise
  • Remote Monitoring System (Included)
  • Built-in Ethernet card, no hardware needed
  • Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)
  • KOHLER® Energy Management App
  • Get real-time alerts on generator status, remote control & maintenance records
  • Bold New E-Coat Dipped Steel Enclosure
  • Pained with a durable powder coat finish to minimize corrosion
  • ***Not Compatible For Off-Grid Applications***
  • Approved for stationary standby applications in locations served by a reliable utility source
  • Premium Warranty - 5-year/2,000-Hour Limited Warranty
  • *Please Note - Breakers not included
  • Product Includes
    • (1) Kohler 10RESVL-100LC12 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch) (10RESVL-100LC12)
    • (1) Kohler 3" Concrete Mounting Pad for 8/10/12kW Generators (GM92226)
    • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (V51-6)
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Kohler 10RESVL-100LC12 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch) (10RESVL-100LC12)
  • (1) Kohler 3" Concrete Mounting Pad for 8/10/12kW Generators (GM92226)
  • (1) UN2794, Battery, Wet, Filled with Acid,8 Emergency 800-424-9300 (V51-6)
EGD-10RESVL-100LC12-KIT
specs product image PID-121096
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
448 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
30.6 Inches
Product Width
28 Inches
Product Height
32.4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
120 ft³/hr
NG Fuel Consumption @ 100% Load
179 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
LP Fuel Consumption @ 100% Load
2.5 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67-71
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
12
Battery
Included
Enclosure
Steel
A/C Ton Rating
5-Tons
Mounting Pad
Composite (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
10RESVL-100LC12
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
448 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
30.6 Inches
Product Width
28 Inches
Product Height
32.4 Inches
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
120 ft³/hr
NG Fuel Consumption @ 100% Load
179 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
LP Fuel Consumption @ 100% Load
2.5 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m Learn More
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67-71
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
12
Battery
Not Included (500 CCA)
Enclosure
Steel
A/C Ton Rating
5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
GM92228-KP1-QS
General Information
Product Category
Generator Accessories
Overview
Product Category
Generator Accessories
Weight
135 Pounds
Product Length
34 Inches
Product Width
37 Inches
Product Height
3 Inches
