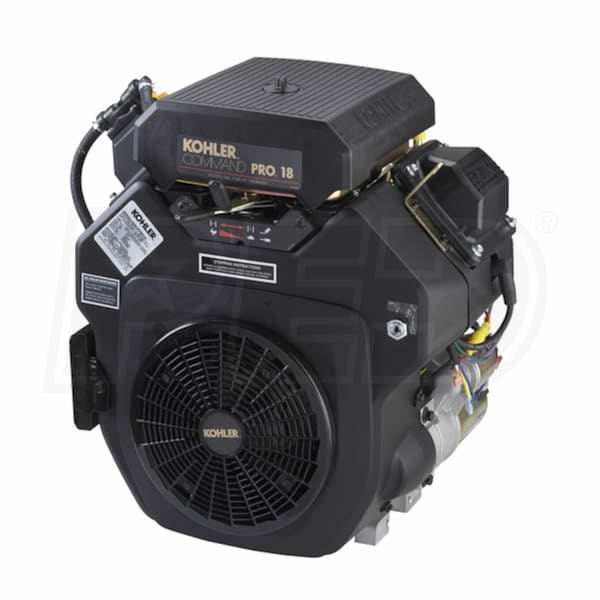

Kohler Command Pro CH620 674cc 19 Gross HP Electric Start Horizontal Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16" -20

Model:

PA-CH620-3103

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Kohler Command Pro CH620 674cc 19 Gross HP Electric Start Horizontal Engine, 1-1/8
Kohler Command Pro CH620 674cc 19 Gross HP Electric Start Horizontal Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16" -20
Model: PA-CH620-3103
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# CH620-3103, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20, W/ Panel
  • Utility / General applications like mowers, compressors & grain augers
  • KOHLER Command PRO™ CH620 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 35 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1940
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • Large Capacity In-Line Fuel Filter And Dual Element Air Filter
  • Extra protection against dirt particles that can clog fuel lines
  • Maximizes engine power and life
  • Overhead Valve Technology
  • Provides greater volumetric efficiency and higher compression ratio
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
  • KOHLER Command PRO
  • Generates a stronger spark at low cranking speed
  • Automatic Compression Release (ACR)
  • Allows compression to escape during cranking to reduce pull force
  • 12V Electric Starter & 15A Regulated Charging System
  • Mechanical Fuel Pump- Gas Tank Not Included
  • Model PA-CH620-3103 Superseded To Model PA-CH620-3157
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-CH620-3103
specs product image PID-68804
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
90 Lbs
CC
674 CCs
HP
19 HP
Max Torque
35 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
2.6 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
PTO Height
6-1/8 Inches
Overview
Weight
90 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14 Inches
Product Width
17.7 Inches
Product Height
19 Inches
Dimensions
14 x 17.7 x 19.0
