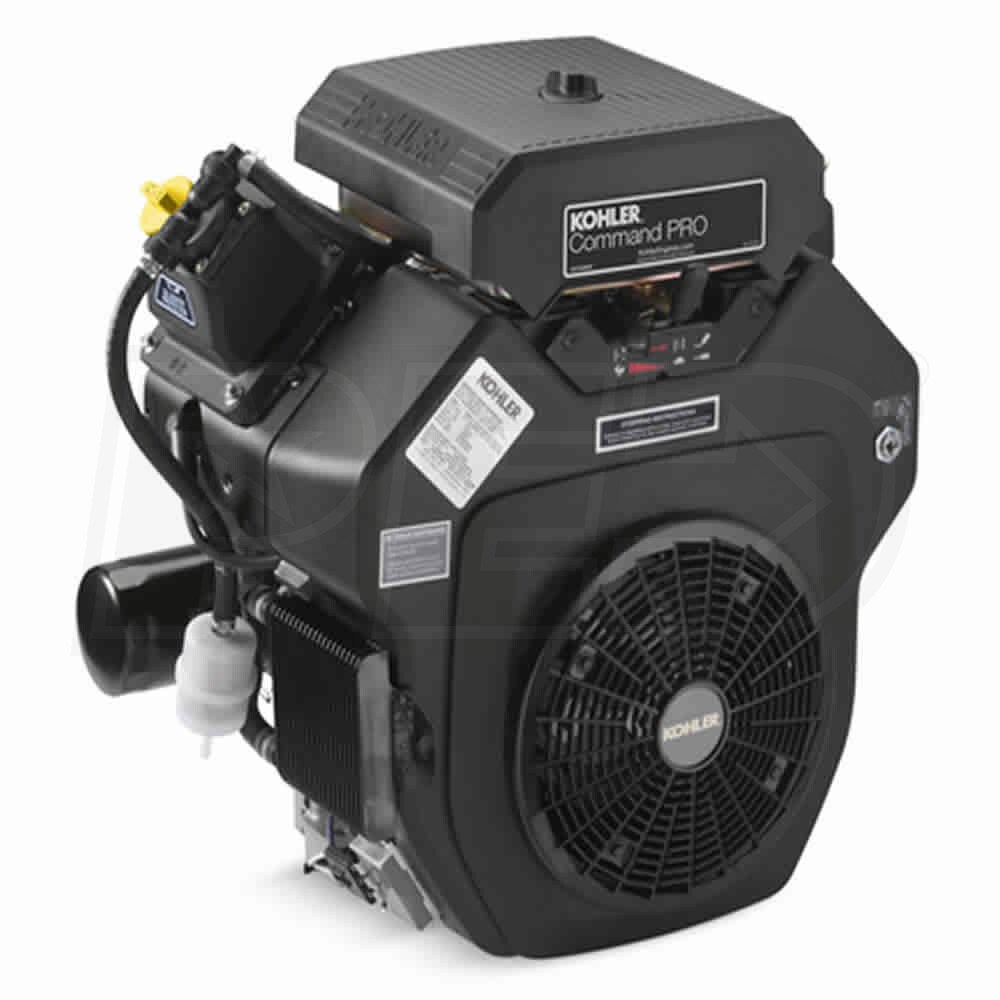

Kohler Command Pro CH640 674cc 20.5 Gross HP Electric Start Horizontal Engine, 1-7/16" x 4.46" Crankshaft, Tapped 5/8"-18
Model:
PA-CH640-3229
+
Share This Product
Features
- Model # PA-CH640-3229, 1-7/16" x 4.46" Crankshaft, Tapped 5/8"-18, W/O Panel
- Utility / General applications like mowers, compressors & grain augers
- KOHLER Command PRO™ CH640 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
- Produces 35 lbs./ft. peak torque- Power levels are stated gross torque per SAE J1954
- Fully Oil Pressurized Hydraulic Valve Lifters
- Push rods stay in constant contact with rocker arms
- Valve train is maintenance free- no adjustments needed
- Large Capacity In-Line Fuel Filter And Dual Element Air Filter
- Extra protection against dirt particles that can clog fuel lines
- Maximizes engine power and life
- Overhead Valve Technology
- Provides greater volumetric efficiency and higher compression ratio
- Produces more power, improved fuel economy/cooling, and reduces oil consumption
- Virtually no carbon buildup, reducing overall maintenance costs
- Variable Speed, Mechanical Governor
- Smooth performance, regardless of application or fluctuating demands for power
- KOHLER Command PRO
- Generates a stronger spark at low cranking speed
- Automatic Compression Release (ACR)
- Allows compression to escape during cranking to reduce pull force
- 12V Electric Starter & 15A Regulated Charging System
- Mechanical Fuel Pump- Gas Tank Not Included
- Model PA-CH640-3229 Replaces Model PA-CH640-3204
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
PA-CH640-3229
Engine
Engine Series
Command Pro
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
90 Lbs
CC
674 CCs
HP
20.5 HP
Max Torque
35.7 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.1 Inches
Stroke
2.6 Inches
Compression Ratio
8.5:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-7/16 x 4.46 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-7/16"
Crankshaft Length
4.46"
Crankshaft End Tapped Size
5/8"-18
Crankshaft Keyway Width
3/8 Inches
PTO Height
6-1/8 Inches
Overview
Weight
90 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14 Inches
Product Width
17.7 Inches
Product Height
19 Inches
Dimensions
14 x 17.7 x 19.0
