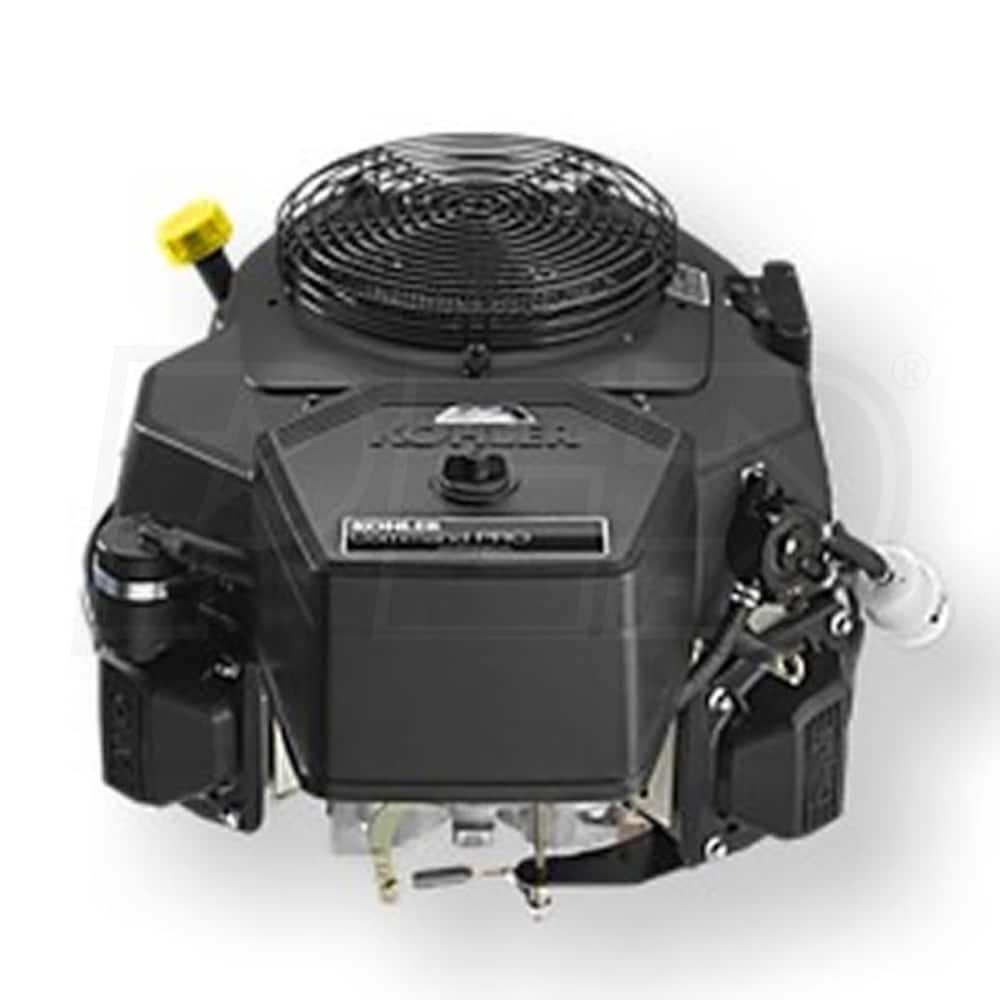

Kohler Command Pro CV740 725cc 25 Gross HP Electric Start Vertical Engine, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20
Model:
PA-CV740-0028
+
Share This Product
Features
- Model# CV740-0028, 1-1/8" x 4" Crankshaft, Tapped 7/16"-20
- For Excel SuperZ & Hustler models with remote canister air cleaner (no air filter included with engine)
- KOHLER Command PRO CV740 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
- Produces 39.2 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2014
- Fully Oil Pressurized Hydraulic Valve Lifters
- Push rods stay in constant contact with rocker arms
- Valve train is maintenance free- no adjustments needed
- Overhead Valve Technology
- Provides greater volumetric efficiency and higher compression ratio
- Produces more power, improved fuel economy/cooling, and reduces oil consumption
- Virtually no carbon buildup, reducing overall maintenance costs
- Variable Speed, Mechanical Governor
- Smooth performance, regardless of application or fluctuating demands for power
- Large Capacity In-Line Fuel Filter
- Extra protection against dirt particles that can clog fuel lines
- Maximizes engine power and life
- Smart-Choke™ Carburetor
- Eliminates need to choke and prime engine
- KOHLER Command PRO® Electronic Ignition System
- Generates a stronger spark at low cranking speed
- Automatic Compression Release (ACR)
- Allows compression to escape during cranking to reduce pull force
- High-Efficiency Fan and Screen
- Modulated cooling fan keeps engine cooler
- Integrated Oil Cooler
- Spin on, full-flow oil filter keeps debris and particles out of engine
- 12V Electric Starter & 15A Regulated Charging System
- Pulse Fuel Pump- Gas Tank Not Included
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov
Specifications
PA-CV740-0028
Engine
Engine Series
Command Pro
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
94 Lbs
CC
725 CCs
HP
25 HP
Max Torque
39.2 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.0:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Filter
Yes
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
None
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 4 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
94 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
17.8 Inches
Product Width
17.7 Inches
Product Height
14.1 Inches
Dimensions
17.8 x 17.7 x 14.1
