Kohler Engines PA-ECH749-3010
Kohler Engines PA-ECH749-3010
Hover to zoom
1 Of 5

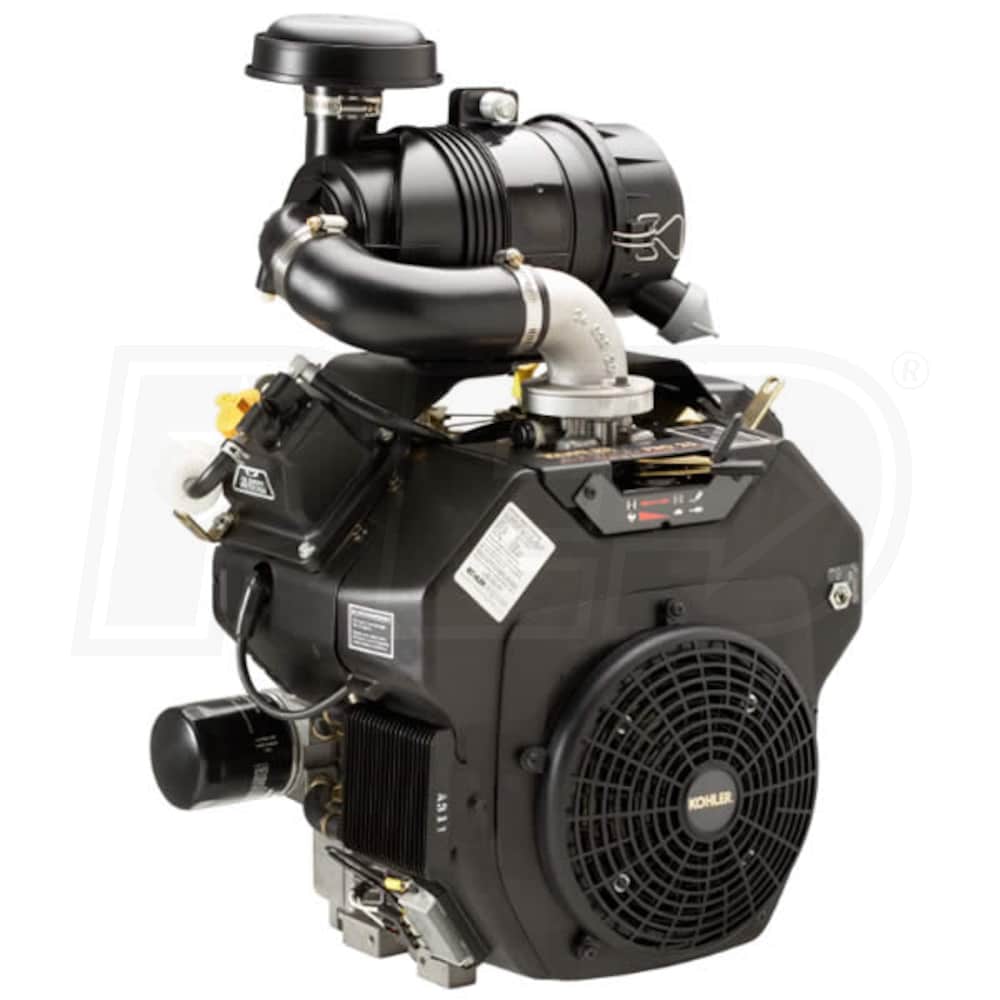

Kohler Command Pro EFI ECH749 747cc 26.5 Gross HP Electric Start Horizontal Engine, 1-1/8" x 2.63" Crankshaft With Flywheel PTO Shaft

Model:

PA-ECH749-3010

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Command Pro EFI ECH749 747cc 26.5 Gross HP Electric Start Horizontal Engine, 1-1/8
Kohler Command Pro EFI ECH749 747cc 26.5 Gross HP Electric Start Horizontal Engine, 1-1/8" x 2.63" Crankshaft With Flywheel PTO Shaft
Model: PA-ECH749-3010
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# ECH749-3010, 1-1/8" x 2.63" Crankshaft
  • Superceded by PA-ECH749-3007
  • KOHLER Command PRO EFI ECH749 V-Twin Cylinder Air-Cooled 4-Cycle Horizontal Gas Engine
  • Produces 40 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2002
  • EFI (Electronic Fuel Injected) For Increased Efficiency
  • Capable of saving up to 25% in fuel over similar-size carbureted engines
  • Advanced oxygen sensor analyzes the exhaust's air/fuel mixture and will adjust as needed
  • On top of the savings, you'll also refuel less, increasing your overall efficiency
  • Easy Dependable Starts
  • Optimized fuel injector placement and intelligent sensor pack deliver fuel when there is a demand for power
  • No-choke starting even in cold weather, when engine is hot or after long periods of storage
  • Less downtime and less maintenance for the life of the engine
  • No messy, gummed-up carburetor to clean or adjust
  • Top Mounted, Quick Change Oil Filter
  • Easy to reach- access to entire cylinder for thorough cleaning
  • Less mess- most of oil is drained before removal
  • Only one tool needed to remove cylinder cover
  • Overhead Valve Technology
  • Produces more power, improved fuel economy/cooling, and reduces oil consumption
  • Provides greater volumetric efficiency and higher compression ratio
  • Virtually no carbon buildup, reducing overall maintenance costs
  • Fully Oil Pressurized Hydraulic Valve Lifters
  • Push rods stay in constant contact with rocker arms
  • Valve train is maintenance free- no adjustments needed
  • KOHLER Command PRO
  • Generates a stronger spark at low cranking speed
  • Variable Speed, Mechanical Governor
  • Smooth performance, regardless of application or fluctuating demands for power
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-ECH749-3010
specs product image PID-68867
Engine
Engine Series
Command Pro EFI
Engine Style
Horizontal
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
108 Lbs
CC
747 CCs
HP
26.5 HP
Max Torque
40 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
9.1:1
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
None, EFI (Electronic Fuel Injection)
Muffler
Not Included
Air Cleaner
Mult-Stage Canister
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1-1/8 x 2.63 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
2.63"
Crankshaft End Tapped Size
5/8"-18
Crankshaft Keyway Width
1/4 Inch
PTO Height
6-1/8 Inches
Overview
Weight
108 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14.8 Inches
Product Width
18.9 Inches
Product Height
24.5 Inches
Dimensions
14.8 x 18.9 x 24.5
