Kohler Engines PA-KT735-3036
Kohler Engines PA-KT735-3036
Hover to zoom
1 of 1

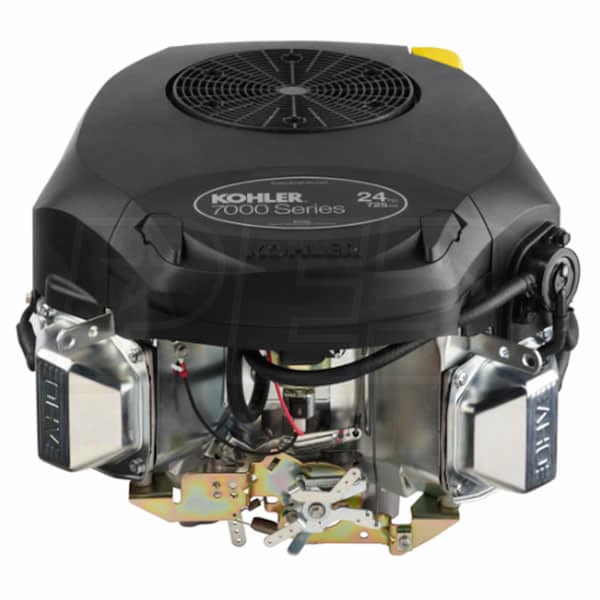

Kohler 7000 Series KT735 725cc 24 Gross HP Electric Start Vertical Engine, 1" x 3.16" Crankshaft

Model:

PA-KT735-3036

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler 7000 Series KT735 725cc 24 Gross HP Electric Start Vertical Engine, 1
Kohler 7000 Series KT735 725cc 24 Gross HP Electric Start Vertical Engine, 1" x 3.16" Crankshaft
Model: PA-KT735-3036
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals

Features

  • Model# KT735-3036, 1" x 3.16" Crankshaft
  • For use on MTD
  • KOHLER 7000 Series™ KT735 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 40.5 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2010
  • Consistent-Cut Technology
  • Consistent power to your deck to achieve the perfect cut
  • Easy-Access Air Filter
  • Quick inspection and maintenance
  • Dual-seal air filter keeps debris out of the engine
  • Service Points On The Same Side Of The Engine
  • Adds ease to maintaning your engine
  • High-Torque Inertia Drive Starter
  • Features extra-large output for quick, reliable starting
  • Long Life Design
  • Cast iron cylinder bores protect in dirty conditions
  • Pressurized lubrication system for consistent coverage
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-KT735-3036
specs product image PID-68891
Engine
Engine Series
7000 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
85 Lbs
CC
725 CCs
HP
24 HP
Max Torque
40.5 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.6 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.16 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.16"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
85 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
13.9 Inches
Dimensions
18.6 x 17.5 x 13.9

Reviews

(2)
Kohler Engines PA-KT735-3036 Reviews & Ratings
Verified Buyer
Verified Buyer
This Is The Best One
By Juan C.
Burlington, New Jersey
Purchased 06/01/2018 |
Review Posted 07/13/2018
This is a great store. I'm very happy with the engine. Fast shipping and available financing is a plus all the way. I would buy again and I would recommend this to anybody.
Juan C. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Exceeded Expectations, High Quality
Verified Buyer
Verified Buyer
Heck Yeah
By Bruce A.
Clay Center, Kansas
Purchased 06/07/2018 |
Review Posted 06/29/2018
Shipped quickly to the job site, great crate motor. Plug and play came with the fuel filter, fuel lines, and oil filter. All I did was install, plug in the harness, dump in 2 quarts of oil and start it up. Looking back I should have bought two.
Bruce A. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, Exceeded Expectations, I'd Buy It Again
