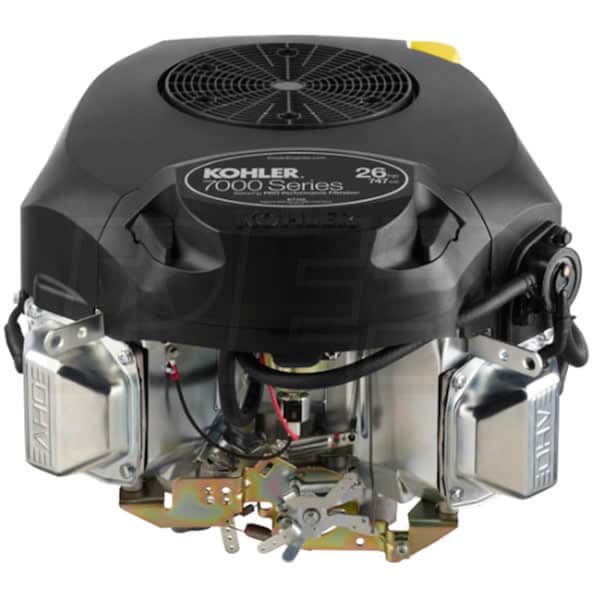

Kohler 7000 Series KT745 747cc 26 Gross HP Electric Start Vertical Engine, 1" x 3.22" Crankshaft

Model:

PA-KT745-3014

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler 7000 Series KT745 747cc 26 Gross HP Electric Start Vertical Engine, 1
Kohler 7000 Series KT745 747cc 26 Gross HP Electric Start Vertical Engine, 1" x 3.22" Crankshaft
Model: PA-KT745-3014
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# KT745-3014, 1" x 3.22" Crankshaft
  • For use on HOP Sears Craftsman
  • KOHLER 7000 Series™ KT745 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 42.4 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2013
  • Consistent-Cut Technology
  • Consistent power to your deck to achieve the perfect cut
  • Easy-Access Air Filter
  • Quick inspection and maintenance
  • Dual-seal air filter keeps debris out of the engine
  • Service Points On The Same Side Of The Engine
  • Adds ease to maintaning your engine
  • High-Torque Inertia Drive Starter
  • Features extra-large output for quick, reliable starting
  • Long Life Design
  • Cast iron cylinder bores protect in dirty conditions
  • Pressurized lubrication system for consistent coverage
California residents see
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm..
For more information go to: www.p65Warnings.ca.gov

Specifications

PA-KT745-3014
specs product image PID-68894
Engine
Engine Series
7000 Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
85 Lbs
CC
747 CCs
HP
26 HP
Max Torque
42.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Muffler
Not Included
Air Cleaner
Dual Element
Fuel Tank
Not Included
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
1 x 3.22 Inch
Crankshaft Type
Straight
Crankshaft Diameter
1"
Crankshaft Length
3.22"
Crankshaft End Tapped Size
7/16"-20
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
85 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
13.9 Inches
Dimensions
18.6 x 17.5 x 13.9
