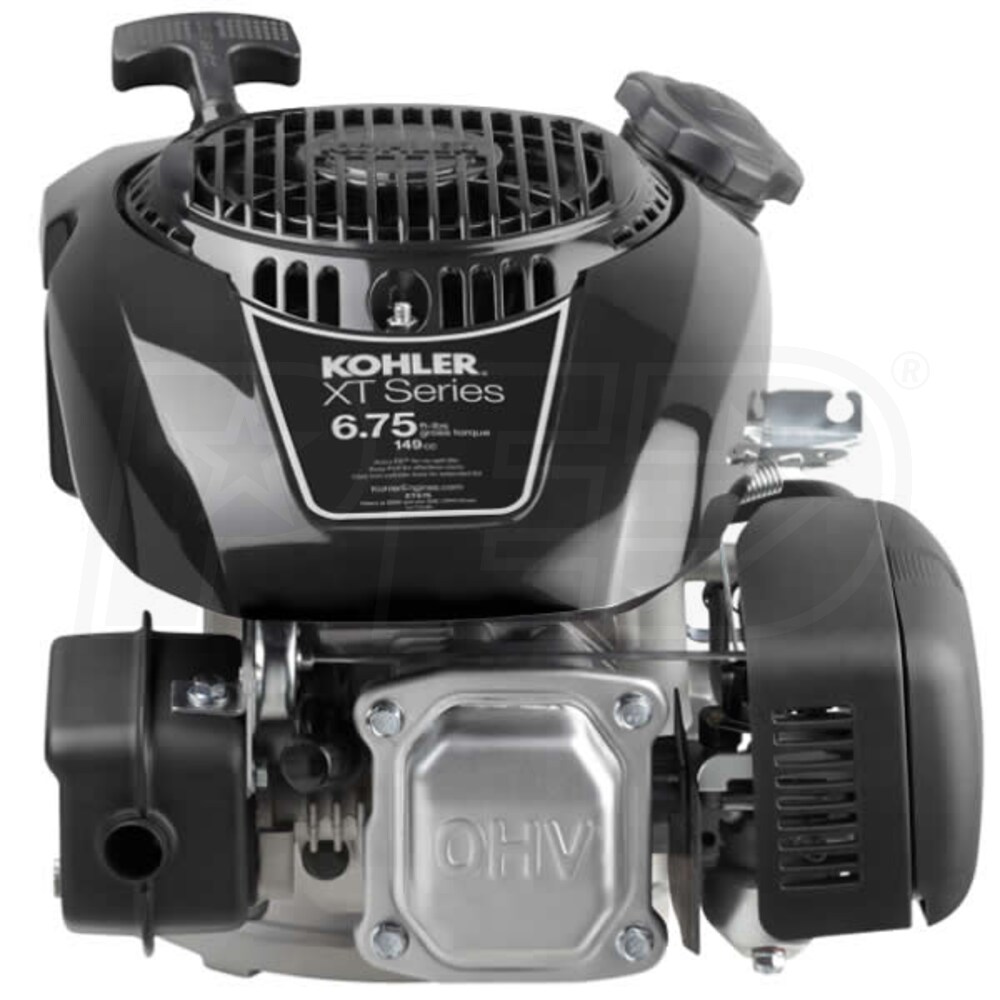

Kohler XT675 149cc OHV Vertical Engine, 25mm x 2.66" Crankshaft, Tapped 3/8"-24
Model:
PA-XT675-3038
+
Share This Product
Features
- Model# XT675-3038, 25mm x 2.66" Crankshaft, Tapped 3/8"-24
- KOHLER XT675 Single Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
- For use on walk behind mowers and utility equipment
- Cool-Running OHV Design Means Your Engine Will Last
- Avoid costly trips to the repair shop
- Tough, Cast-Iron Cylinder Liner
- Engine will last longer in harsh mowing conditions
- Front Tube Outlet Muffler
- Quiet operation is ensured
- Reduce Noise
- Muffler that directs exhaust away from you
- Consistent-Cut™ Technology
- Higher-quality cut
- Accu-Fill™ Technology
- Easy fill without spilling
- Large fuel tank for less frequent filling
- Easy-Pull™ Technology
- Easy starting
- Smart-Choke™
- Easy, no-prime starting
- Model PA-XT675-3038 Replaces Model PA-XT675-3016
Specifications
PA-XT675-3038
Engine
Engine Series
XT Series
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
1
Cooling System
Air
Dry Weight
23.8 Lbs
CC
149 CCs
Max Torque
6.75 Lbs
Cylinder Bore Type
Cast Iron
Bore
2.6 Inches
Stroke
1.8 Inches
Compression Ratio
9.2:1
CARB
No
Systems
Starting System
Recoil Only
Ignition System
Electronic Spark
Lubrication
Lubrication
Splash
Oil Filter
No
Oil Capacity
20 oz
Intake/Exhaust
Fuel
Gas
Muffler
Included
Air Cleaner
Dual Element
Crankshaft
Crankshaft Rotation Direction
Counterclockwise
Shaft Size
25mm x 2.66 Inches
Crankshaft Type
Straight
Crankshaft Diameter
25 mm
Crankshaft Length
2.66"
Crankshaft End Tapped Size
3/8"-24
Crankshaft Keyway Width
1/4 Inch
Overview
Weight
24 Pounds
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
14.4 Inches
Product Width
14 Inches
Product Height
10.5 Inches
Dimensions
14.4 x 14 x 10.5
