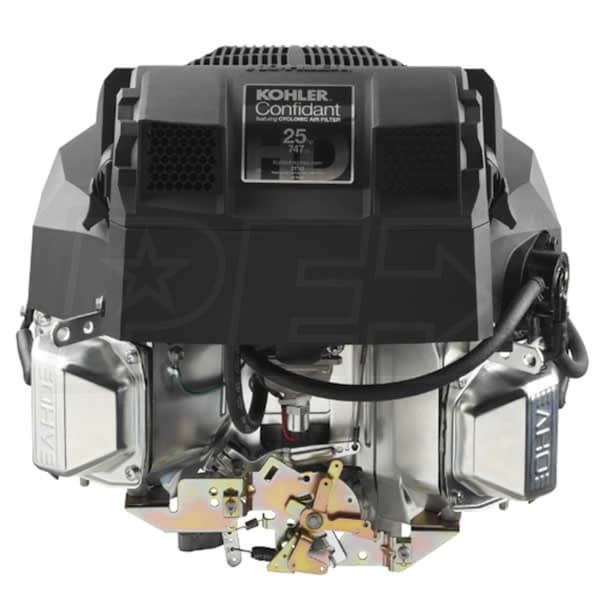

Kohler Confidant ZT740 747cc 25 Gross HP Vertical Engine, 1.125" x 4.36" Crankshaft, Tapped 7/16"-20

Model:

PA-ZT740-3011

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Kohler Confidant ZT740 747cc 25 Gross HP Vertical Engine, 1.125
Kohler Confidant ZT740 747cc 25 Gross HP Vertical Engine, 1.125" x 4.36" Crankshaft, Tapped 7/16"-20
Model: PA-ZT740-3011
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • Model# ZT740-3011, 1-1/8" x 4.36" Crankshaft, Tapped 7/16"-20
  • For use on wide-area walk-behind/stand-on mowers, ZTRs and high-end garden tractors
  • Expect The Performance Of A Pro-Grade Engine
  • Designed for commercial landscapers and property owners
  • KOHLER Confidant Series ZT740 V-Twin Cylinder Air-Cooled 4-Cycle Vertical Gas Engine
  • Produces 42.4 lbs./ft. peak torque- Power levels are stated gross torque per SAE J2005
  • Consistent-Cut™ Technology
  • Consistent power to your deck to achieve the perfect cut
  • Quad-Clean™ Air Filtration Technology
  • Heavy-duty cyclonic air filter
  • Trap fine contaminants for maximum power and engine life
  • Chopper Grass Screen Guard
  • Prevents grass and debris packing
  • High-Torque Inertia Drive Starter
  • Features extra-large output for quick, reliable starting
  • Long Life Design
  • Cast iron cylinder bores protect in dirty conditions
  • Pressurized lubrication system for consistent coverage
  • High-Impact Nylon Shroud And Valve Cover
  • Protect against bushes and branches damaging internal components

Specifications

PA-ZT740-3011
specs product image PID-79367
Engine
Engine Series
Confidant
Engine Style
Vertical
Engine Type
4-Cycle OHV
Cylinders
2
Cooling System
Air
Dry Weight
91 Lbs
CC
747 CCs
HP
25 HP
Max Torque
42.4 Lbs
Cylinder Bore Type
Cast Iron
Bore
3.3 Inches
Stroke
2.7 Inches
Compression Ratio
9.1:1
CARB
Yes
Systems
Charging System
15 Amps
Starting System
12-Volt Key Start
Ignition System
Electronic Spark
Lubrication
Lubrication
Pressurized
Oil Capacity
64 oz
Intake/Exhaust
Fuel
Gas
Carburetor
Float
Muffler
Not Included
Air Cleaner
Integrated Cyclonic Air Cleaner
Fuel Tank
Not Included
Crankshaft
Shaft Size
1-1/8" x 4.36" Inch
Crankshaft Type
Straight
Crankshaft Diameter
1-1/8"
Crankshaft Length
4.36"
Crankshaft End Tapped Size
7/16"-20
Overview
Weight
91 Pounds
Consumer Warranty
3 Years
Commercial Warranty
2 Years
Product Length
18.6 Inches
Product Width
17.5 Inches
Product Height
17 Inches
Dimensions
18.6 x 17.5 x 17
