Kohler RDT-CFNA-100B-MV04
Kohler RDT-CFNA-100B-MV04
Hover to zoom
1 Of 5

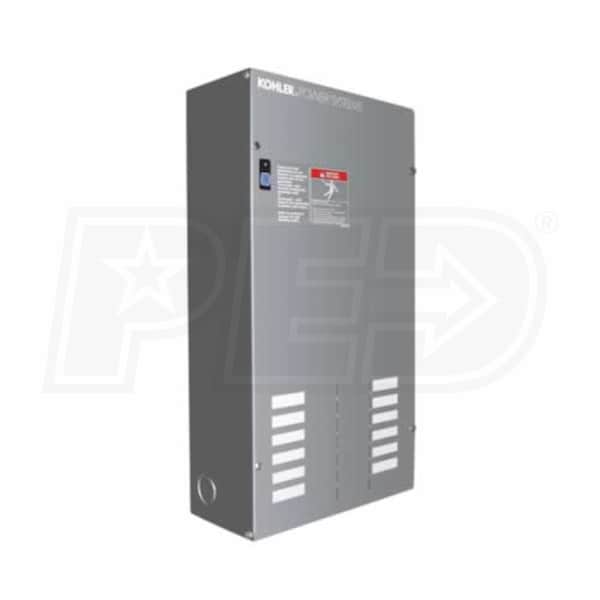

Kohler RDT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center

Model:

RDT-CFNA-100B-MV04

Write A Review
$745.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks
synchrony card logo
$125 / Month
Suggested monthly payments with 6 month financing.
Kohler RDT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Kohler RDT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model: RDT-CFNA-100B-MV04
$745.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Load Center

Amp Rating

Circuits

16

Voltage

120/240 Single-Phase

Enclosure

NEMA 1R

  • Prewired Square D type QO load center
  • 100 amp load centers use up to 16 circuit breakers - not included
  • Standard Features
  • UL listed
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 1 (indoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RDT-CFNA-100B-MV04
specs product image PID-2199
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
27 Pounds
Consumer Warranty
5 Years
Product Length
24 Inches
Product Width
13 Inches
Product Height
6 Inches
Additional Model Numbers

RDT-CFNA-0100B, RDT-CFNA-100B-MV04

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Enclosure
NEMA 1R
Number of Circuit Breakers
16
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes

Reviews

(1)
Kohler RDT-CFNA-100B-MV04 Reviews & Ratings

Product Q&A

Expert avatar photo
Be the First to Ask A Question Answered by Jared, the Generator Expert

How-To Articles

How To Pick the Perfect Automatic Transfer Switch
How To Pick the Perfect Automatic Transfer Switch
I recently spoke with someone who wanted to back up their home with a standby g...
How to Avoid Tripping a Generator With a Bonded Neutral
How to Avoid Tripping a Generator With a Bonded Neutral
Does your generator outlet trip every time you connect it to your home's transf...
How to Pick the Perfect Manual Transfer Switch
How to Pick the Perfect Manual Transfer Switch
During a sudden power outage, you probably don’t feel like running multip...
Power Equipment How-To Library
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts

Manuals


Media Gallery

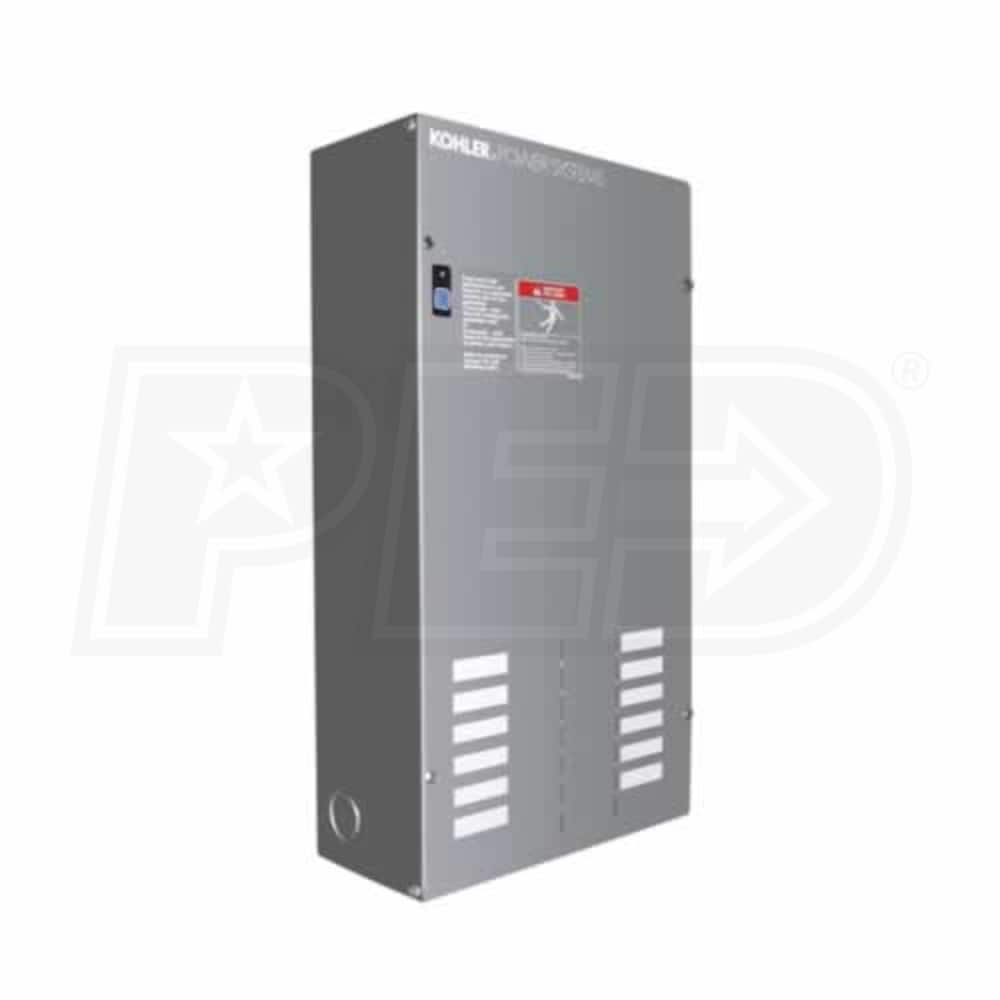

Kohler RDT Series 100-Amp Indoor Automatic Transfer Switch w/ 16-Circuit Load Center
