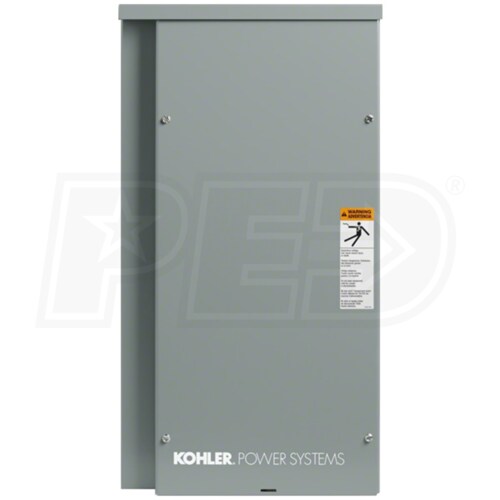

Kohler RDT Series 100-Amp Outdoor Automatic Transfer Switch w/ 16-Circuit Load Center
Model:
RDT-CFNC-0100B-QS7
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jared, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Type
Load Center
Amp Rating
100
Circuits
16
Voltage
120/240 Single-Phase
Enclosure
NEMA 3R
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Prewired Square D type QO load center
- 100 amp load centers use up to 16 circuit breakers - not included
- Standard Features
- UL listed
- Two-pole, single-phase, open-transition transfer switch
- Double throw inherently interlocked design
- Solid Neutral
- 220/240 VAC, 50/60 Hz (jumper)
- Contractor manually operable for maintenance purposes
- NEMA 3R (outdoor) enclosure
- MPAC™ 500 Controller Features
- User-friendly interface and easy-to-find international symbols
- LED indication of system faults
- Test button (with or without load)
- Exercise set button
- Single-phase voltage sensing on both sources
- Line-to-line frequency sensing
- Fixed time delays
- 5-year limited warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RDT-CFNC-0100B-QS7
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
18 Pounds
Consumer Warranty
5 Years
Product Depth
7 Inches
Product Width
16.4 Inches
Product Height
36.1 Inches
UPC
650531170996
Additional Model Numbers
RDT-CFNC-0100B, RDT-CFNC-0100B-QS7
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
100 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
16
Transfer Switch Style
Select Circuit
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
100 Amps
Max Generator Input
100 Amps
UL Listed
Yes
