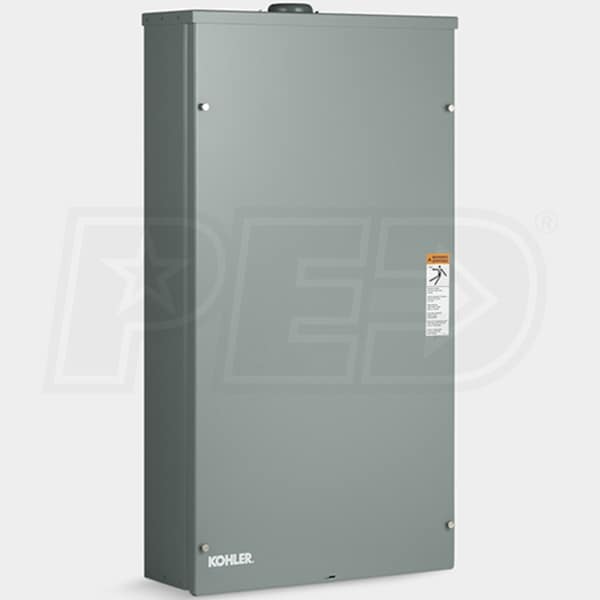

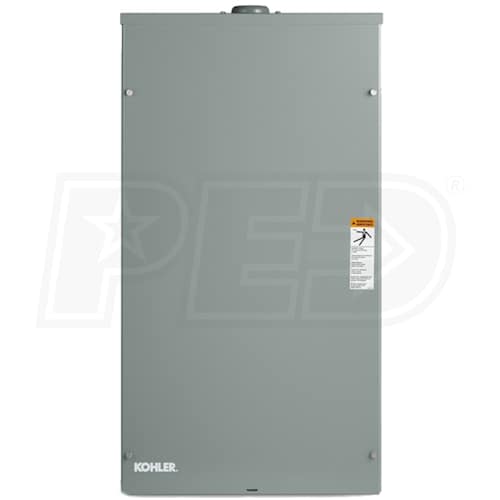

Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)

Model:

RDT-CFNC-200ASEQS4

Write A Review
$1,380.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 18th
Shipping to60601
synchrony card logo
$25 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch (Service Disconnect)
Model: RDT-CFNC-200ASEQS4
$1,380.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Service Disconnect

Amp Rating

200

Load Mgmt.

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Standard Features
  • Service Entrance Rated w/ a Square D type QOM circuit breaker
  • UL listed
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • Automatically Manages Up To Six Residential Loads
  • Two HVAC relays to control two independent air conditioner loads
  • Four customer-provided power relays can be connected for
  • Management of non-essential loads
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RDT-CFNC-200ASEQS4
specs product image PID-2207
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
26 Pounds
Consumer Warranty
5 Years
Product Depth
6.4 Inches
Product Width
18.6 Inches
Product Height
33.8 Inches
UPC
650531953179
Additional Model Numbers

RDT-CFNC-200ASE, RDT-CFNC-200ASEQS4

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Transfer Switch Amperage
200-Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes

Reviews

(5)
Kohler RDT-CFNC-200ASEQS4 Reviews & Ratings

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Jared, the Generator Expert
I have the 12res kohler generator. My electrician wants to use a 200 amp transfer switch because the house is on a 200 amp breaker. It looks as if the 200 amp is for 14 or higher generators.Will it be ok to use it on my generator. Thanks
Terry Harris
from Arkansas
October 10, 2012
I would like to use Kohler 14kw res with Briggs and Stratton automatic transfer switch with main disconnect and power management. I think its symphony 2. Is it ok to use two different brands or do i have to use Kohler ATS? Thanks Jan
Jan
from Connecticut
March 10, 2012
