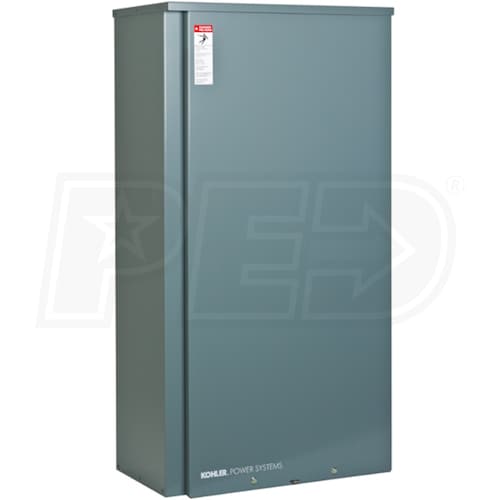

Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch

Model:

RXT-JFNC-0200A-QS7

Write A Review
$745.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601
synchrony card logo
$125 / Month
Suggested monthly payments with 6 month financing.
Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch
Kohler RXT Series 200-Amp Outdoor Automatic Transfer Switch
Model: RXT-JFNC-0200A-QS7
$745.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jared, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Type

Standard

Amp Rating

200

Load Mgmt.

Built-In

Voltage

120/240 Single-Phase

Enclosure

NEMA 3R

  • Kohler RXT Series 200-Amp Automatic Transfer Switch
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Combined Interface / Load Management Board
  • Built-In Load Shed - Manage (2) HVAC loads
  • Manage up to (4) Non-Essential loads***
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Rated at 200-Amps @ 240-Volts
  • ***Requires PRM (Sold Separately)
  • 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RXT-JFNC-0200A-QS7
specs product image PID-8059
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
15 Pounds
Consumer Warranty
5 Years
Product Depth
7.1 Inches
Product Width
13.2 Inches
Product Height
24.5 Inches
UPC
650531124739
Additional Model Numbers

RXT-JFNC-0200A, RXT-JFNC-0200A-QS7

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Load Shedding
Built-In
ATS Poles
2 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
