Features
- Inverter Technology
- LG's outdoor condensers are designed with efficient inverter technology. An electronic expansion valve and a variable speed compressor carefully regulate the refrigerant flow, reducing energy consumption and allowing for consistent, accurate temperatures.
- Gold Fin Protection
- To ensure the reliability and longevity of the LSU120HFV3's heat exchanger, LG employs a Gold Fin coating that prevents corrosion and improves durability.
- Quiet Design
- Thanks to a brushless direct current motor and a twin rotary compressor, the LSU120HFV3 is significantly quieter than traditional air conditioning systems. These components reduce mechanical sound, electrical sound, and vibrations within the unit.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris. Adding these accessories to your order will provide a complete, ready-to-install mini split system.

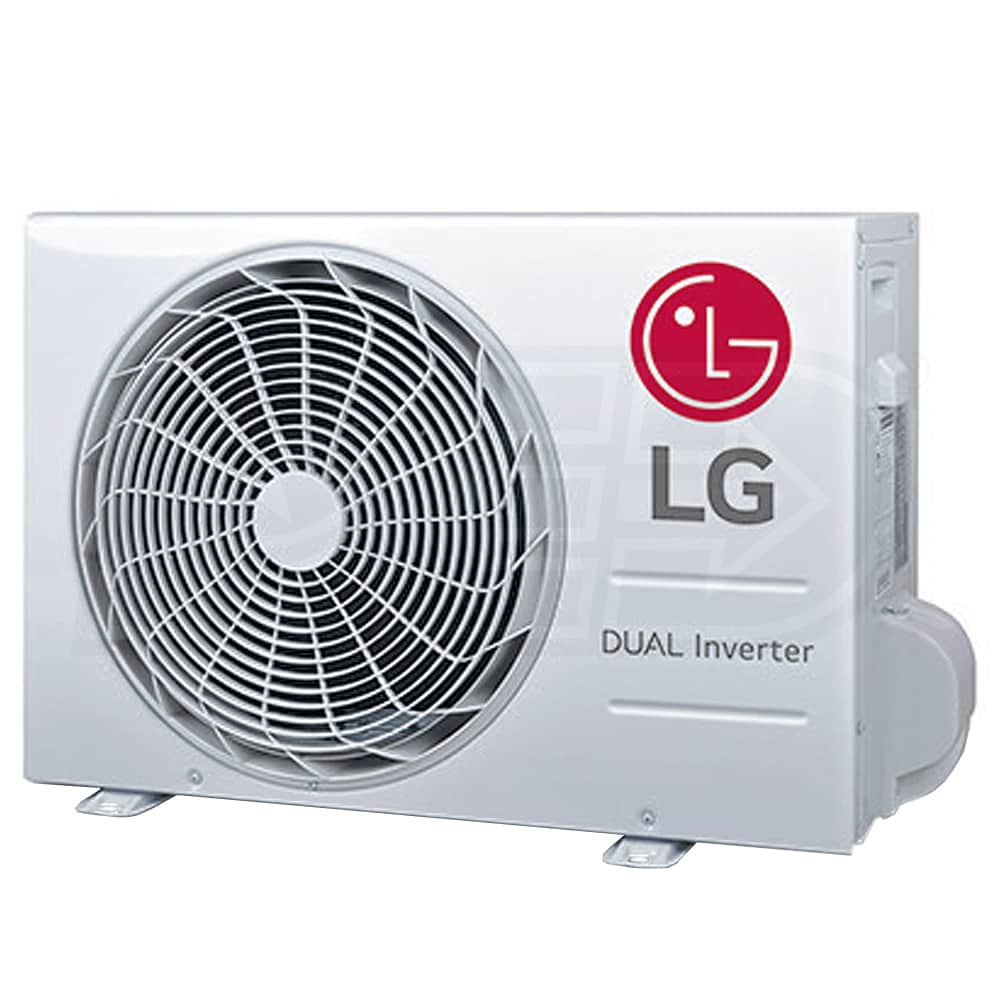

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The LSU120HFV3 is a single zone mini split outdoor condenser capable of supplying ductless heating and cooling to any room in your home. With inverter technology and quiet operation this well-rounded mini split outdoor condenser is an easy choice for any system. This product requires a compatible indoor unit for functionality.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for installation:
Specifications
LSU120HFV3
General Information
Type
Outdoor Condenser
Product Line
Standard Efficiency
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
UPC
195174013960
Performance
Cooling BTU
12000
Heating BTU
12000
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
50 dB
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
14 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10 Amps
Recommended Breaker Size
15 Amps
Dimensions
Maximum Line Length
49.2 Feet
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
19 1/2 Inches
Product Width
28 11/48 Inches
Product Depth
9 1/16 Inches
Product Weight
55.3 Pounds
Shipping Weight
60 Pounds
Certifications
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
