Features
- Control Options
- The PREMTC00U features inputs for On/Off, mode selection, fan speed, air flow direction, and static pressure.
- Auto Operation
- The controller's dual setpoint function automatically manages room temperature based on set cooling and heating temperatures to provide a comfortable environment.
- Multiple Sensor Options
- The PREMTC00U offers the ability to sense temperatures from the indoor unit, the controller, or thermistor.
- Product Compatibility
- Can be used to control up to 16 LG mini split indoor units in group control (available with indoor units equipped for this feature).

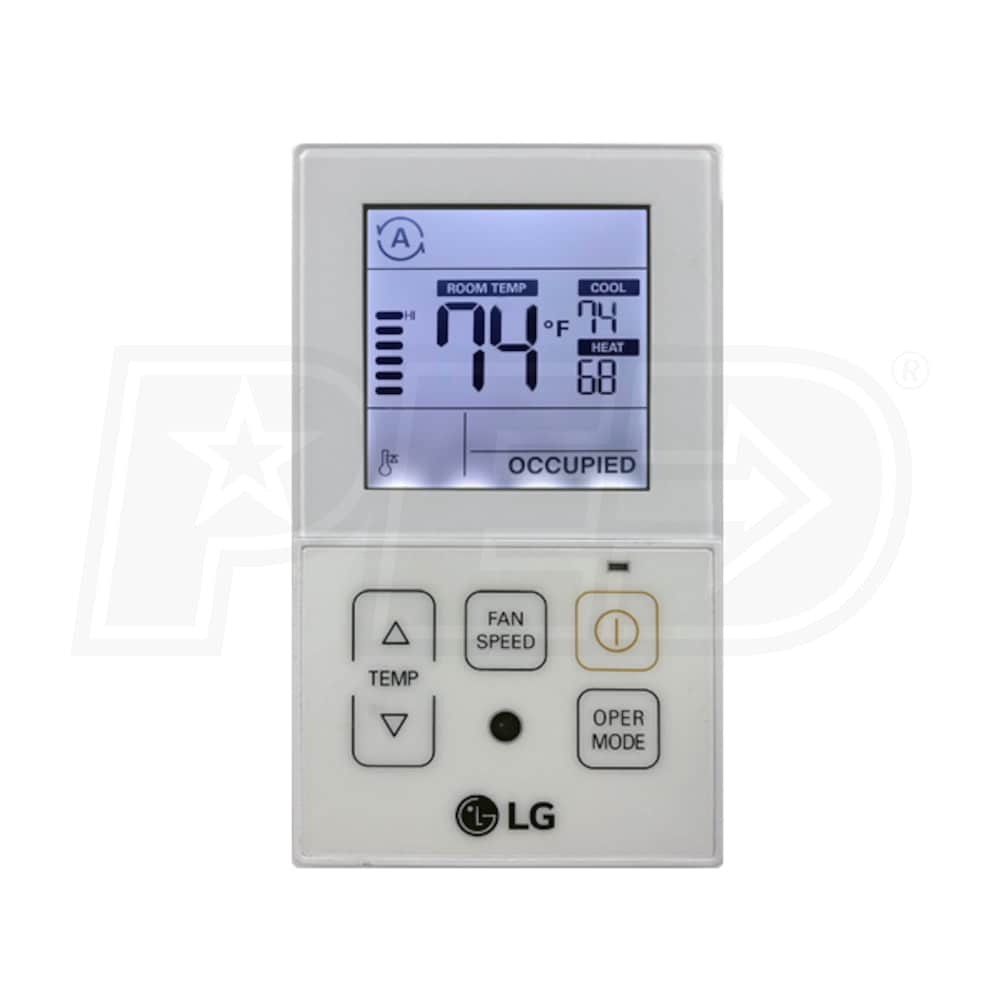

LG's simple wired controller allows for control of indoor LG systems. Options include fan speed, air flow direction, static pressure, and room temperature sensing location. The PREMTC00U also features mode selection for heating, cooling, dehumidifying, fan only, and auto modes. The PREMTC00U gives you the ability to control up to 16 LG mini split indoor units in group control. In addition, the communication cable can be extended to a maximum of 164 feet by using a field supplied cable, Wired Remote Group Control assembly (PZCWRCG3) or the Wired Zone Controller Extension Cable (PZCWRC1) (maximum four [4]).
Product Note
A field supplied cable, group control assembly (PZCWRCG3) or remote communication cable (PZCWRC1) is required for proper system operation. These can be found under the "Recommended Accessories" tab.
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
PREMTC00U
Overview
Product Category
Mini Split Accessories
UPC
048231385503
General Information
Type
Mini Split Controller
Product Category
Mini Split Accessories
Maximum Number of Zones
16
Power Source
Hard-Wired
Dimensions
Product Height
4 3/4 Inches
Product Width
5/8 Inch
Product Length
2 3/4 Inches
Product Weight
0.18 Pounds
