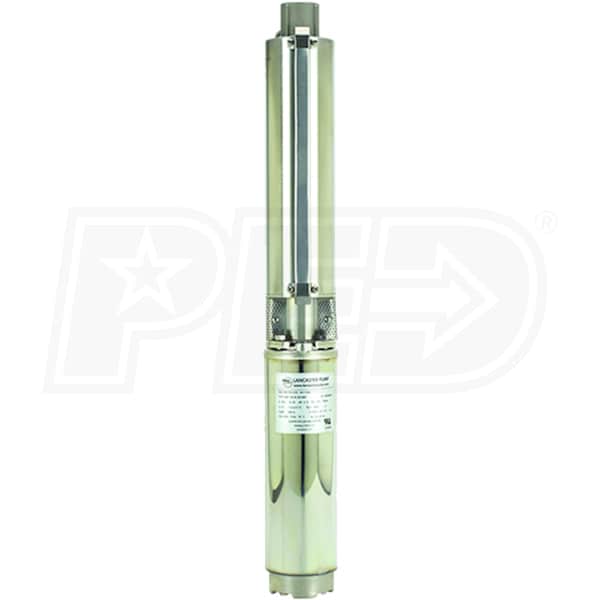

Lancaster Pump 2-2LSJ10017-2 - 1 HP 5 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)
Model:
2-2LSJ10017-2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Deep Well
GPM
5 Gallons
- SURVIVOR J-Series 5 GPM 4" Sub. Well Pump (2-Wire 230V)
- For 4" I.D. or + Wells (<500'); Two-Wire Starting - No Control Box Req
- 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
- Continuous duty rated, Induction run design w/ built-in starter
- Stainless Steel Motor Casing & Splined Shaft End
- Hermetically sealed, permanently lubricated, for greater heat exchange
- Built-In Lighting Arrestors & Automatic Reset Overload
- Provides surge and overhead protection for increased protection
- 1.25" Stainless Steel Discharge Head, Motor & Cable Support
- Superior strength and corrosion resistance for maximum life
- Field replaceable fluted internal check valve & molded jug handles
- Balanced Teflon® Impregnated Thermoplastic Impellers
- Reduces overall friction to maximize water flow
- Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
- Each stage has separate comp. thrust washer for added protection
- Heavy wall, High Quality SS Pump Casing & SS Intake Screen
- Sized inside for perfect stage alignment; wouldn't snap off during install
- Stainless Steel Hex Shaft w/ Slotted End For Test Turning
- Polyurethane bearing (top/end motor shaft) for wear resistance
- 3-Year Limited Warranty
Specifications
2-2LSJ10017-2
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
12
Wire
2-Wire
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
60
Total Head Lift
600 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
34 Pounds
Consumer Warranty
3 Years
Product Length
27.44 Inches
Product Width
3.81 Inches
Reviews
Lancaster Pump 2-2LSJ10017-2 Reviews & Ratings
Be the First to Write a Review
Do you own this product?
Please share your insights with fellow shoppers.
Please share your insights with fellow shoppers.
Product Q&A
(2)
Product Questions
Answered by Jim, the Water Pump Expert
Where is the motor manufactured?
John B.
from Pennsylvania
April 19, 2018
Do I need to buy a check valve or anything else with this pump?
Jim
from Connecticut
March 03, 2017
