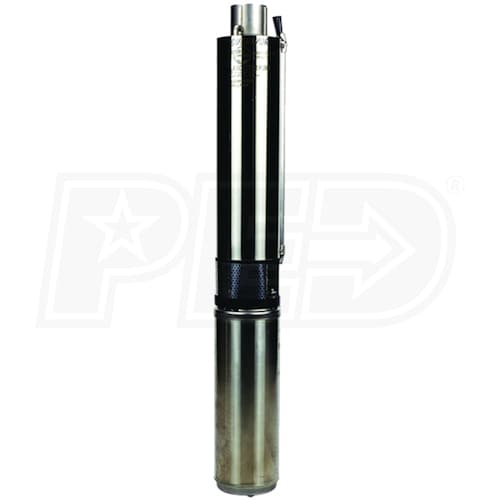

Lancaster Pump 2LSPJ5010-2 - 1/2 HP 5 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)

Model:

2-2LSPJ5010-2

Write A Review
$549.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability January 08, 2025
Shipping to60601

Lancaster Pump 2LSPJ5010-2 - 1/2 HP 5 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)
Lancaster Pump 2LSPJ5010-2 - 1/2 HP 5 GPM Deep Well Submersible Pump w/ SS Discharge (2-Wire 230V)
Model: 2-2LSPJ5010-2
$549.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

5 Gallons

  • SURVIVOR J-Series 5 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<300'); Two-Wire Starting - No Control Box Req
  • 1/2 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Splined Shaft End
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25 Stainless Steel Discharge Head & Noryl® Motor Support
  • Superior strength and corrosion resistance for maximum life
  • Field replaceable fluted internal check valve & molded jug handles
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • Stainless Steel Hex Shaft w/ Slotted End For Test Turning
  • Polyurethane bearing (top/end motor shaft) for wear resistance
  • 3-Year Limited Warranty

Specifications

2-2LSPJ5010-2
specs product image PID-57834
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
6.4
Wire
2-Wire
Pump
Gallons Per Minute
5 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
60
Total Head Lift
300 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
27.3 Pounds
Consumer Warranty
3 Years
Product Length
24.44 Inches
Product Width
3.81 Inches
