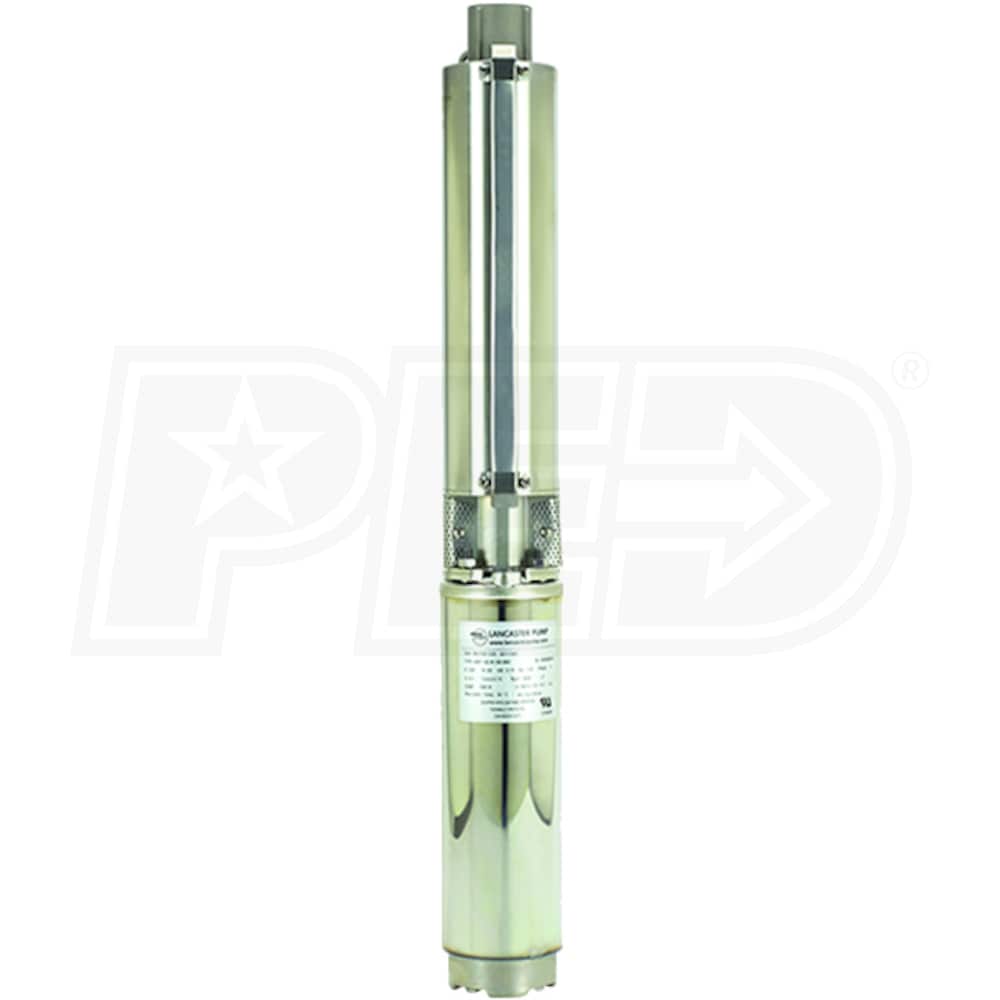

Lancaster Pump 2LSU10008-2 - 1 HP 15 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)

Model:

2-2LSU10008-2

Write A Review
$769.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Lancaster Pump 2LSU10008-2 - 1 HP 15 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)
Lancaster Pump 2LSU10008-2 - 1 HP 15 GPM Deep Well Submersible Pump w/ SS Disc & Motor Sup. (2-Wire 230V)
Model: 2-2LSU10008-2
$769.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

15 Gallons

  • SURVIVOR U-Series 15 GPM 4" Sub. Well Pump (2-Wire 230V)
  • For 4" I.D. or + Wells (<260'); 2-Wire Starting - No Control Box Required
  • 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Induction run design w/ built-in starter
  • Stainless Steel Motor Casing & Splined Shaft End
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head, Motor & Cable Support
  • Superior strength & corrosion resistance for max life; replaceable CV
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignmen; wouldn't snap off during install
  • 3-Year Limited Warranty

Specifications

2-2LSU10008-2
specs product image PID-57895
Motor
Voltage
240 Volt Single-Phase
Running Amps
8.4
Wire
2-Wire
Pump
Gallons Per Minute
15 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
111
Total Head Lift
260 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Assembly Required
Yes
Weight
31.8 Pounds
Consumer Warranty
3 Years
Product Length
26.97 Inches
Product Width
3.81 Inches
