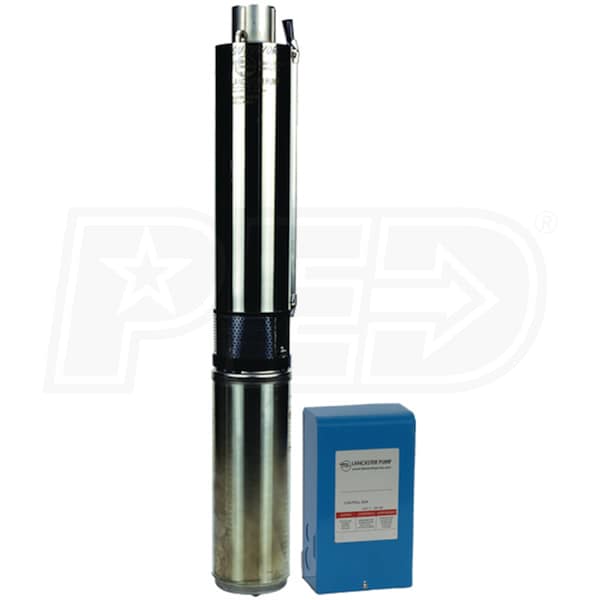

Lancaster Pump 3LSPW10007-2 - 1 HP 22 GPM Deep Well Submersible Pump w/ SS Discharge (3-Wire 230V) & CB

Model:

2-3LSPW10007-2

Write A Review
$774.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Lancaster Pump 3LSPW10007-2 - 1 HP 22 GPM Deep Well Submersible Pump w/ SS Discharge (3-Wire 230V) & CB
Lancaster Pump 3LSPW10007-2 - 1 HP 22 GPM Deep Well Submersible Pump w/ SS Discharge (3-Wire 230V) & CB
Model: 2-3LSPW10007-2
$774.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Deep Well

GPM

22 Gallons

  • SURVIVOR W-Series 22 GPM 4" Sub. Well Pump (3-Wire 230V)
  • For 4" I.D. or + Wells (<220'); 3-Wire Starting - Control Box Included
  • 1 HP Lancaster HYDRO-FORCE Encapsulated Sub. Motor
  • Continuous duty rated, Capacitor-start induction run (CSIR) - Req. Control Box (Included)
  • Stainless Steel Motor Casing & Glass-filled Noryl® Motor Support
  • Hermetically sealed, permanently lubricated, for greater heat exchange
  • Built-In Lighting Arrestors & Automatic Reset Overload
  • Provides surge and overhead protection for increased protection
  • 1.25" Stainless Steel Discharge Head & Thermoplastic Motor Support
  • Superior strength, while minmizing corrosion & Field replaceable check valve
  • Balanced Teflon® Impregnated Thermoplastic Impellers
  • Reduces overall friction to maximize water flow
  • Fully-Enclosed Thermoplastic Diffusers & Stage Plates w/ SS Wear Surfaces
  • Each stage has separate comp. thrust washer for added protection
  • Heavy wall, High Quality SS Pump Casing & SS Intake Screen
  • Sized inside for perfect stage alignment; wouldn't snap off during install
  • 1 HP HYDRO-FORCE Quick-Disconnect Control Box (230V)
  • Includes 230V relay, start capacitor & 2 ground/cable terminals
  • NEMR 3R Outdoor rated, painted steel enclosure, QD components
  • 3-Year Limited Warranty

Specifications

2-3LSPW10007-2
specs product image PID-57884
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
8.4
Wire
3-Wire
Pump
Gallons Per Minute
22 Gallons
Outlet Diameter
1-1/4 Inch
Pump Head Material
Stainless Steel
Housing Material
Stainless Steel
Impeller Material
Plastic
Maximum PSI
94
Total Head Lift
220 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Horsepower
1 HP
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
31 Pounds
Consumer Warranty
3 Years
Product Length
26.65 Inches
Product Width
3.81 Inches
Accessories
Control Box
Yes
