Features
Inlet Size
1-1/4 Inch
Style
Shallow Well
GPM
24.7 Gallons
- Keystone 1 HP Single-Stage Shallow Well Jet Pump
- Provides optimal pumping at lifts/depths up to 25'
- Heavy Duty Cast Iron Construction
- Gets you much longer life compared to thermoplastic pumps
- 115/230-Volt Dual Voltage Motor
- Voltage selector switch allows for easy right under motor cover
- 1 HP Square Flange Motor w/ Capacitor Start
- Capacitor provides extra torque for easier motor starting
- Thermal & Overload Protection w/ Automatic Reset
- Prevents significant damage to the motor during operation
- Thermoplastic Impeller, Diffuser & In-Line Nozzle/Venturi Valve
- Engineered for increased overall output and efficiency
- Stainless Threaded Motor Shaft & Upper/Lower Ball Bearings
- Minimizes corrosion and provides smoother and cooler operation
- 1" FNPT Discharge
- Easily connect this pump to most residential plumbing apps.
- Built-In Drain Plug
- Allows for easy servicing and winterizing
- Note* Includes 20/40 Pressure Switch (Not Shown)
- 3-Year Warranty
Specifications
SKS100
General Information
Product Category
Water Pump
Motor
Voltage
120/240 Volt
Pump
Gallons Per Minute
24.7 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1 Inch
Pump Head Material
Cast Iron
Pump Housing Drain
Yes
Housing Material
Cast Iron
Impeller Material
Plastic
Suction Head
25 Feet
Maximum PSI
58
Submersible
No
Engine
Oil-Cooled
No
Horsepower
1 HP
Overview
Product Category
Water Pump
Assembly Required
Yes
Weight
43 Pounds
Consumer Warranty
3 Years
Product Length
21.25 Inches
Product Width
6.75 Inches
Product Height
8.2 Inches
Additional Model Numbers
1-SKS100, SKS100
Reviews
(1)
Lancaster Pump SKS100 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Jim, the Water Pump Expert
How-To Articles
How to Pick the Perfect Well Pump
Using centrifugal force, a well pump shoots water from its underground reservoi...
Priming Your Well Pump
Well pumps have been around for centuries, but the days of using a bucket and r...
How to Pick the Perfect Specialty Water Pump
All water pumps are built for the same purpose: moving water. But there are sp...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

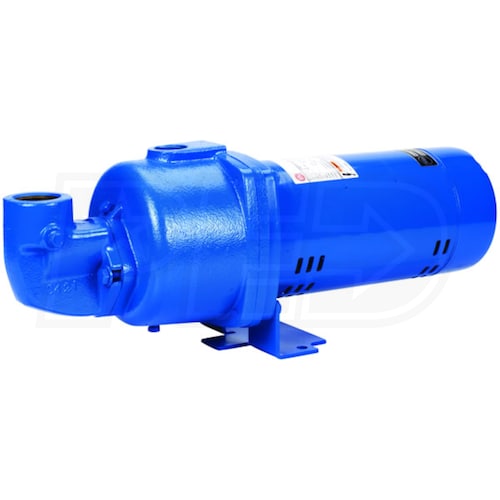

Lancaster Pump SKS100 - 24.7 GPM 1 HP Cast Iron Shallow Well Jet Pump
