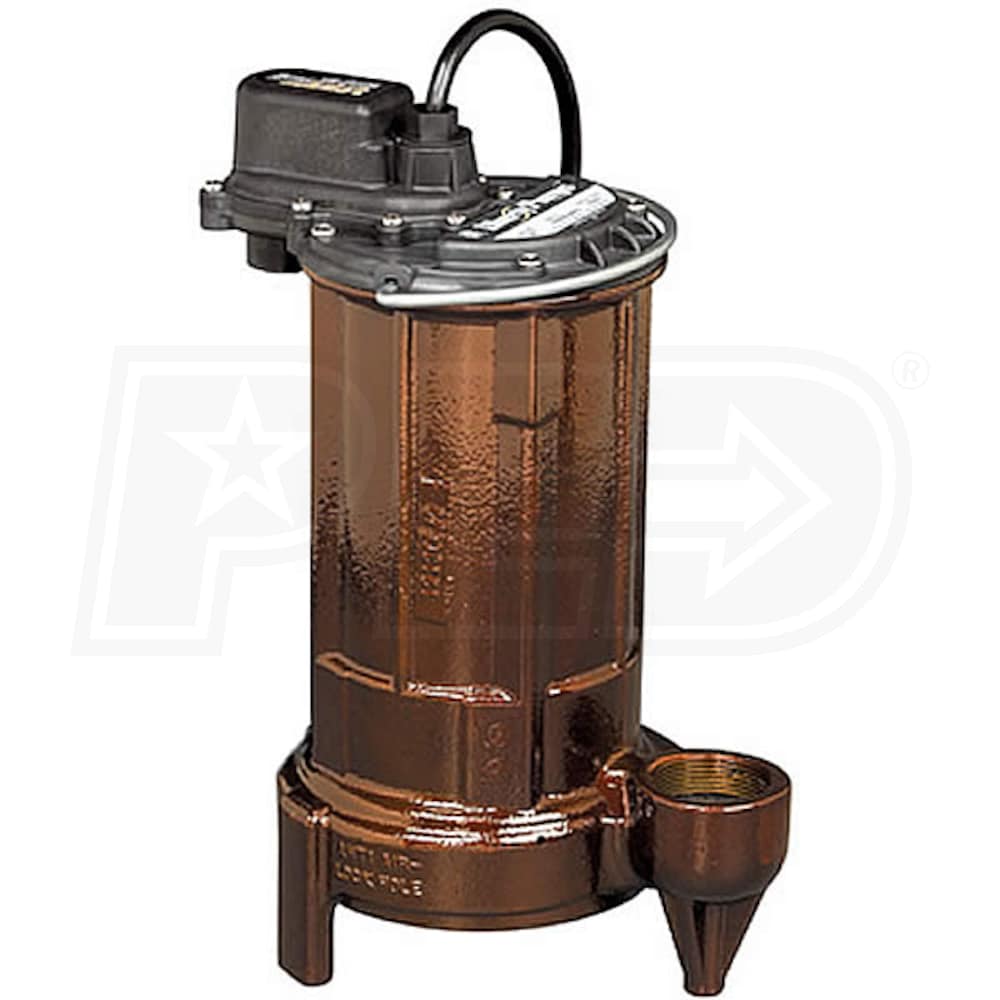

Liberty Pumps 290HV - 3/4 HP Cast Iron Submersible Sump / Effluent Pump (Non-Automatic) (208-230V)
Model:
290HV
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5040 Gallons
Switch Type
None
- 208-230V ***NON-AUTOMATIC - Requires Float Switch***
- Submersible Cast Iron Sump Pump
- For high head (up to 30') and/or high output applications
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Rugged, Energy Efficient & Thermally Protected 3/4 HP Motor (208-230V)
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge (3/4" Solid Handling)
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- Removable Stainless Steel Bottom Screen
- Keeps larger debris from damaging the pump
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
290HV
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
5.3
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Nominal Voltage
120 Volt
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
3/4 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
5040
GPH @ 5 feet
4680
GPH @ 10 feet
4320
GPH @ 15 feet
3900
GPH @ 20 feet
3540
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Max Head
30 Feet
Engine
Oil-Cooled
Yes
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
30 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
671812120868
