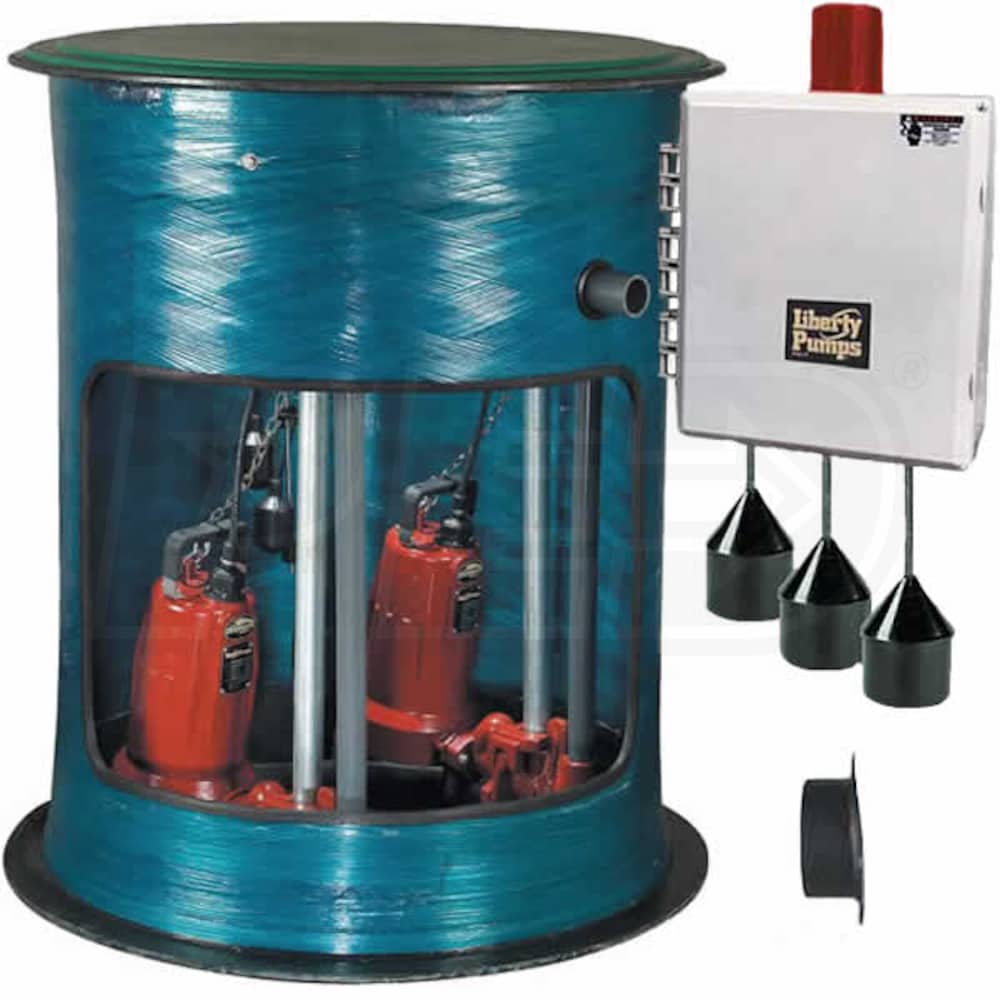

Liberty Pumps D3648LSG202 - 2 HP D3648 Duplex Grinder Pump System (36"x48" - 208/230V)

Model:

D3648LSG202

Write A Review
$9,349.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

Liberty Pumps D3648LSG202  - 2 HP D3648 Duplex Grinder Pump System (36
Liberty Pumps D3648LSG202 - 2 HP D3648 Duplex Grinder Pump System (36"x48" - 208/230V)
Model: D3648LSG202
$9,349.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

3000 Gallons

Switch Type

Piggy-Back Tether



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

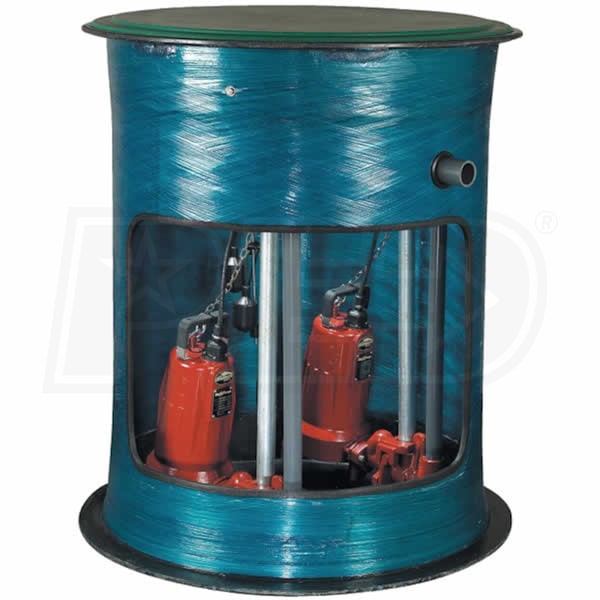

  • Liberty D3648-Series Duplex Grinder Pump System (208/230V 1P)
  • Factory pre-assembled reduces job site labor & potential errors
  • 36" x 48" (211-Gal.) Fiberglass Basin/Cover w/ 2" Discharge
  • Anti-floatation collar, unmounted 4" Inlet hub & rubber seal
  • NEMA 4X Standard Control Panel (AE24H=3) w/3-Level Control Floats
  • Alternates operation - equalizing wear & extends pump life
  • HOA Switch, CBs, visual/audio alarms, run indicator & aux. contacts
  • (2) 2 HP LSG200-Series Omnivore® Grinder Pump (208/230V 1P)
  • Heavy-duty, oil-filled, thermally protected motor w/ Up to 100' Lift
  • Uni-Body Epoxy Powder Coated Cast Iron Construction
  • Assures max heat dissipation & color motor operating temps.
  • V-Slice® Cutter Technology (440 Stainless Steel)
  • Provides improved shredding performance over radial cutters
  • SS Rotor Shaft w/ Carbon Ceramic & Viton® Double-Lip Seal
  • Durable design, extends the life of the pump
  • Pre-Assembled Guide Rail System & QuickTree® Float System
  • Factory set @ 13" Off & 25" On (31" Alarm); 62-Gal per cycle
  • Pre-Mounted NEMA 4X junction box & SS Lift Chain
  • 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

D3648LSG202
specs product image PID-11142
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
15
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
53
Pump
Housing Material
Cast Iron
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
3000
GPH @ 15 feet
3000
GPH @ 20 feet
3000
Discharge Port Size
2 Inch
Float On
25 Inches
Float Off
13 Inches
Manual Override
Yes
Engine
Horsepower
2 HP
Overview
Weight
470 Pounds
Consumer Warranty
3 Years
Product Width
36/40 Inches
Product Height
48 Inches
UPC
671812118964
