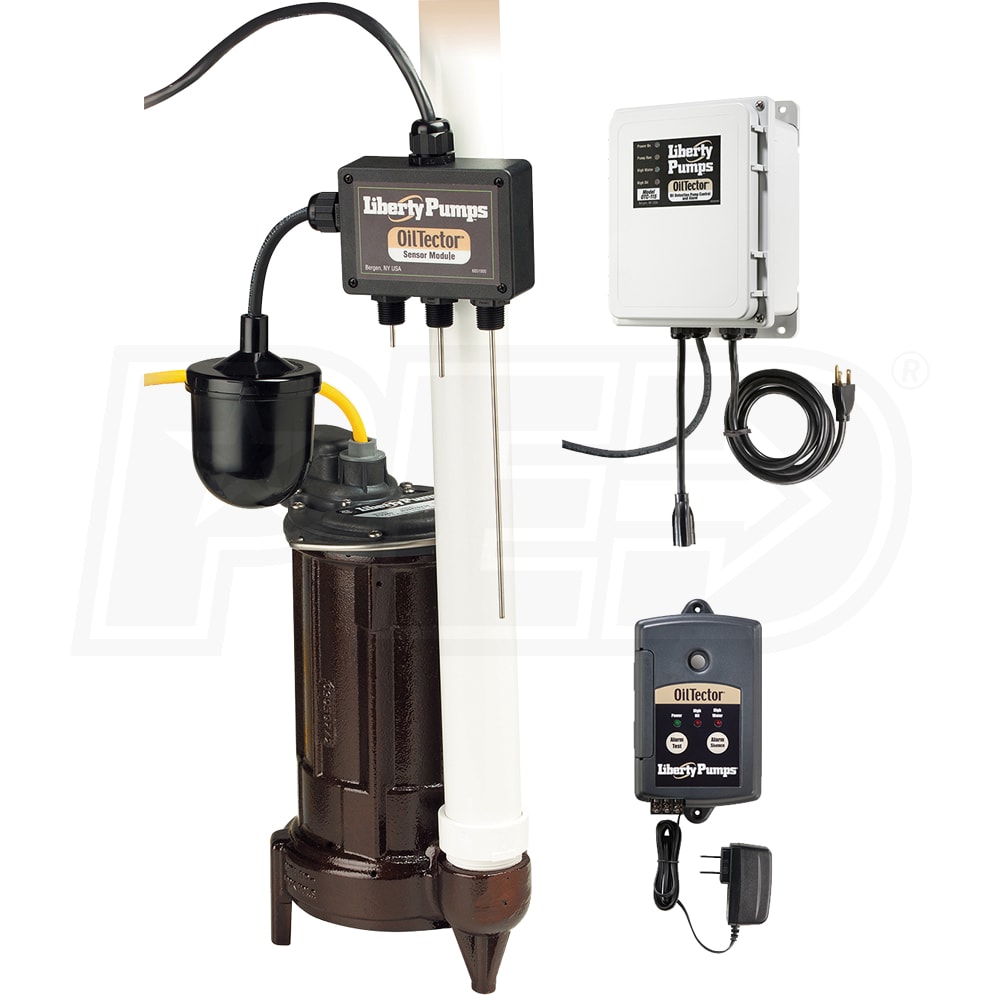

Liberty Pumps ELV290 - 3/4 HP Cast Iron Elevator Sump Pump System w/ OilTector® Control & Alarm
Model:
ELV290
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
4980 Gallons
Switch Type
Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 3/4 HP ELV-Series OilTector® Elevator Sump Pump System
- For elevator sump pits, transformer vaults and other applications
- For applications where oil and water must be detected
- OilTector® System - ASME A17.1 Compliant
- Activates the pump to remove water from the pit
- Stops the pump before oil/harmful substances are discharged
- Heavy-Duty Cast Iron 3/4 HP Sump Pump
- With 25-foot oil-resistant SJEOOW cord for added protection
- Easy Installation
- No field adjustments required, just install & plug-in
- NEMA 1 Control Panel
- Separate pump and control circuits for added protection
- Remote Alarm w/ Audio/Visual Warnings
- Also provides additional auxiliary (24 VDC) contacts
- For connection to building automation system or SCADA system
- Easy To Read Warning Lights
- Power on, pump run, high water and high oil
- Includes:
- 3/4 HP Sump Pump, Level Sensor, Alarm & Control Panel
- 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
ELV290
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
24
Pump
Housing Material
Cast Iron
Impeller Material
Composite
Solids Handling Size
.75 inch
Float Type
Tether Switch
GPH @ 0 feet
4980
GPH @ 5 feet
4620
GPH @ 10 feet
4380
GPH @ 15 feet
3960
GPH @ 20 feet
3480
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
Adjustable
Float Off
Adjustable
Manual Override
Yes
Engine
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
41 Pounds
Consumer Warranty
3 Years
Product Style
Elevator
UPC
671812121179
