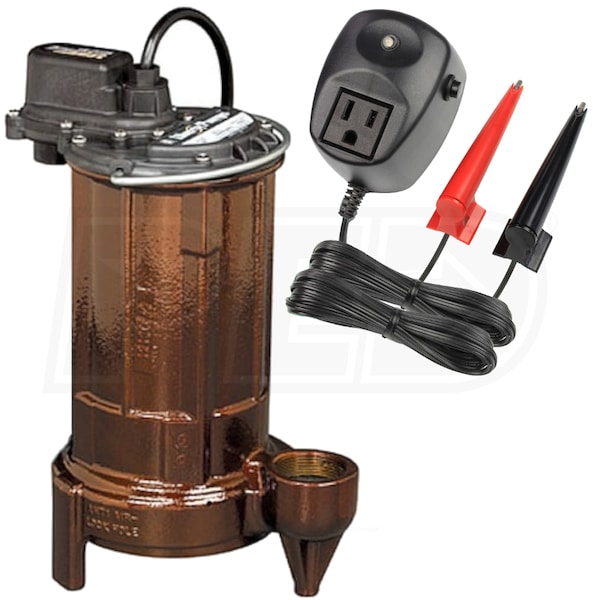

Liberty Pumps 280 - 1/2 HP Cast Iron Submersible Sump/Effluent Pump & HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms
Model:
SPD-280 PUMP-HC6000v2
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
4080 Gallons
Switch Type
Electronic
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

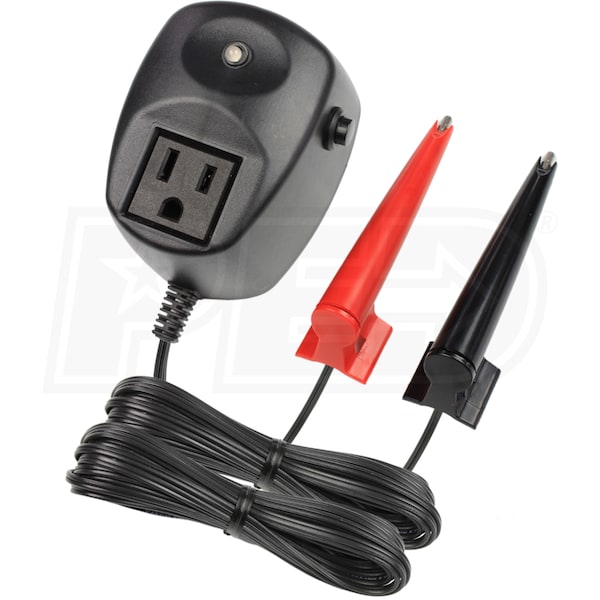

- Includes HydroCheck HC6000v2

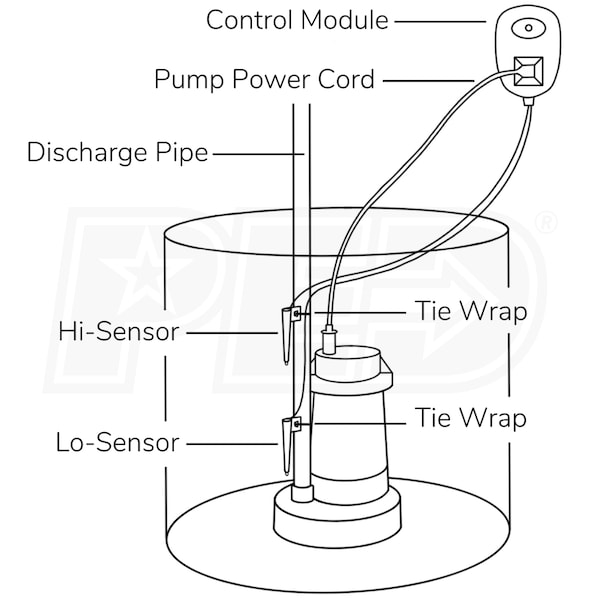

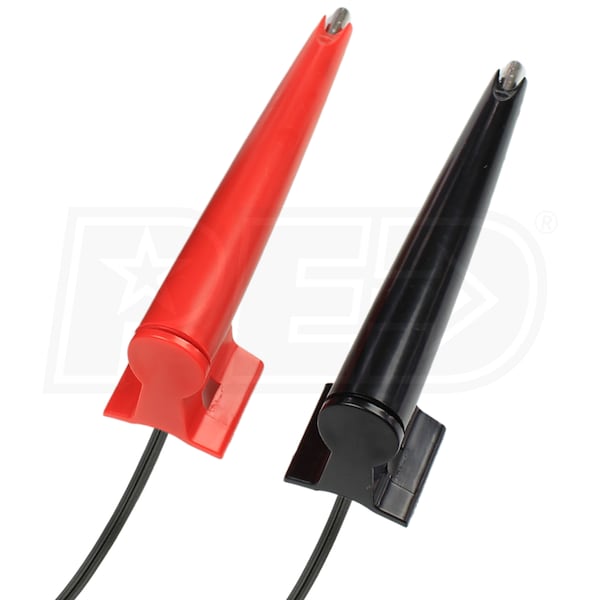

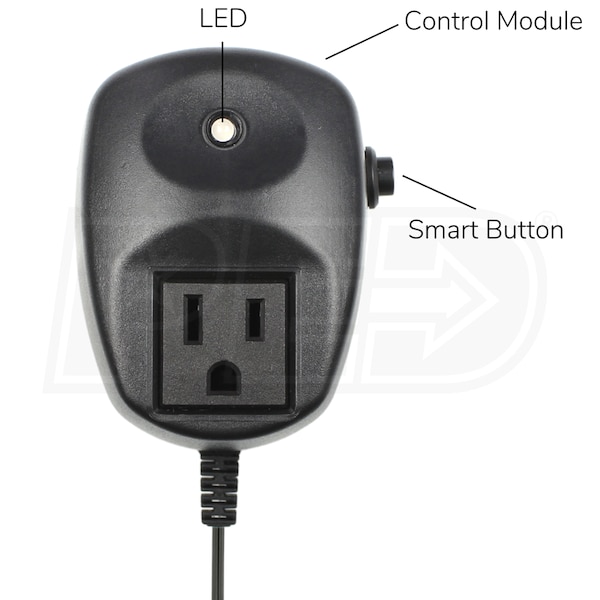

- Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms
- Submersible Cast Iron Sump Pump
- For high head (up to 30') and/or high output applications
- Liberty's UNI-BODY Casting w/ Epoxy Coated Powder Coat Finish
- A solid, one-piece housing that eliminates lower motor seal
- Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Non-Corrosive Stainless Steel Fasteners
- Increases the lifespan of the pump even in the harshest sump pits
- 416 Stainless Steel Rotor Shaft
- With permanently lubricated bearings for extended pump life
- Removable Stainless Steel Bottom Screen
- Keeps larger debris from damaging the pump
- 3-Year Limited Warranty
- (1) Liberty Pumps 280 - 1/2 HP Cast Iron Submersible Sump/Effluent Pump (Non-Automatic) (280 PUMP)
- (1) HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms (HC6000)
Product Includes
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Liberty Pumps 280 - 1/2 HP Cast Iron Submersible Sump/Effluent Pump (Non-Automatic) (280 PUMP)
- (1) HydroCheck HC6000v2 - Electronic Hi-Lo Pump Switch w/ Dual Sensors & Built-In Alarms (HC6000)
SPD-280 PUMP-HC6000v2
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
23
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Electronic

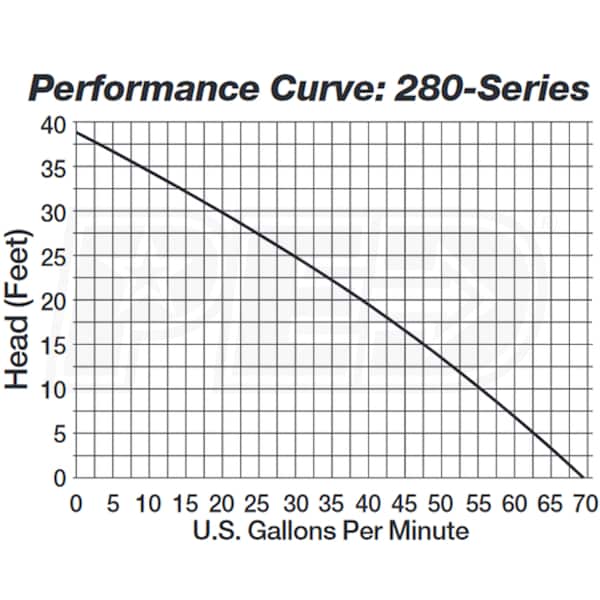

GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Max Head
38 Feet
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
280 PUMP
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
23
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Max Head
38 Feet
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
HC6000v2
General Information
Product Category
Water Pump Accessories
Motor
Voltage
120 Volt
Power Cord Length
12 Feet
Rated Capacity
14
Nominal Voltage
120 Volt
Pump
Float Type
Electronic
Overview
Product Category
Water Pump Accessories
Consumer Warranty
5 Years
