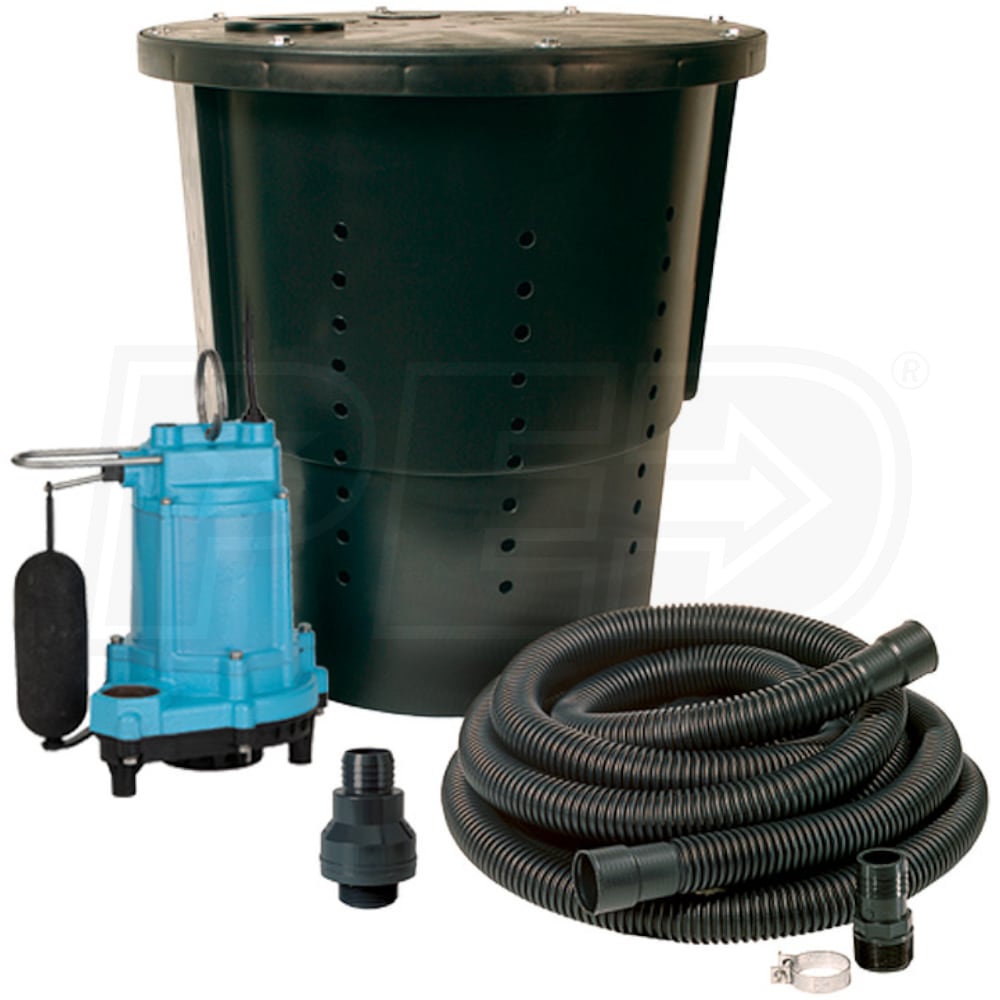

Little Giant CS-SS - 1/3 HP Pre-Assembled Crawl Space Automatic Sump / Effluent Pump System w/ 20' Cord
Model:
14940655
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical
- Little Giant CS-SS Pre-Assembled Crawl Space Sump Pump System
- Helps prevent water and moisture from collecting in the low areas
- For crawl space, yard, patio or driveway applications
- Automatic Submersible Sump Pump
- Continuous duty rated for sump & light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/3 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Vertical Float Switch
- Double-seal design minimizes switch corrosion
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- Also Includes
- 18" x 22" Lightweight perforated polypropylene basin
- Structural foam cover with slip fit flanges
- 1-1/4" x 24' Discharge hose kit
- 1-1/2" MNPT Barbed check valve
- 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
14940655
General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Motor
Voltage
120 Volt
Running Amps
6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
12
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Vertical Float

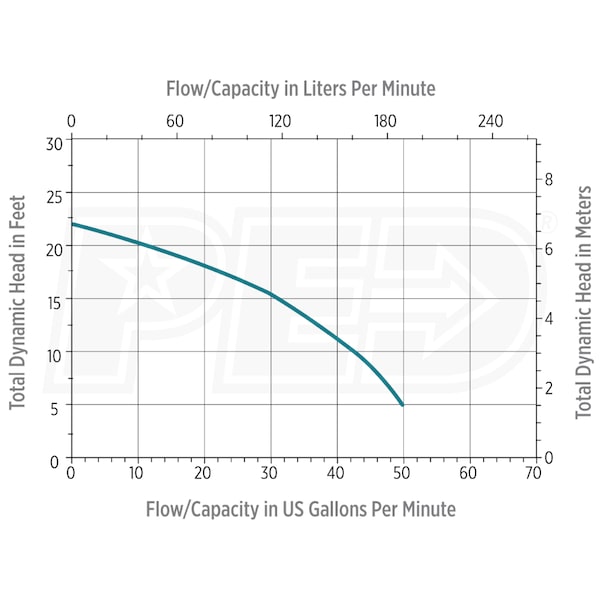

GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2520
GPH @ 15 feet
1800
GPH @ 20 feet
600
Discharge Port Size
1-1/2 Inch
Manual Override
No
Max Head
28 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
19 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
21 Inches
Product Width
21 Inches
Product Height
22.1 Inches
UPC
010121113381
