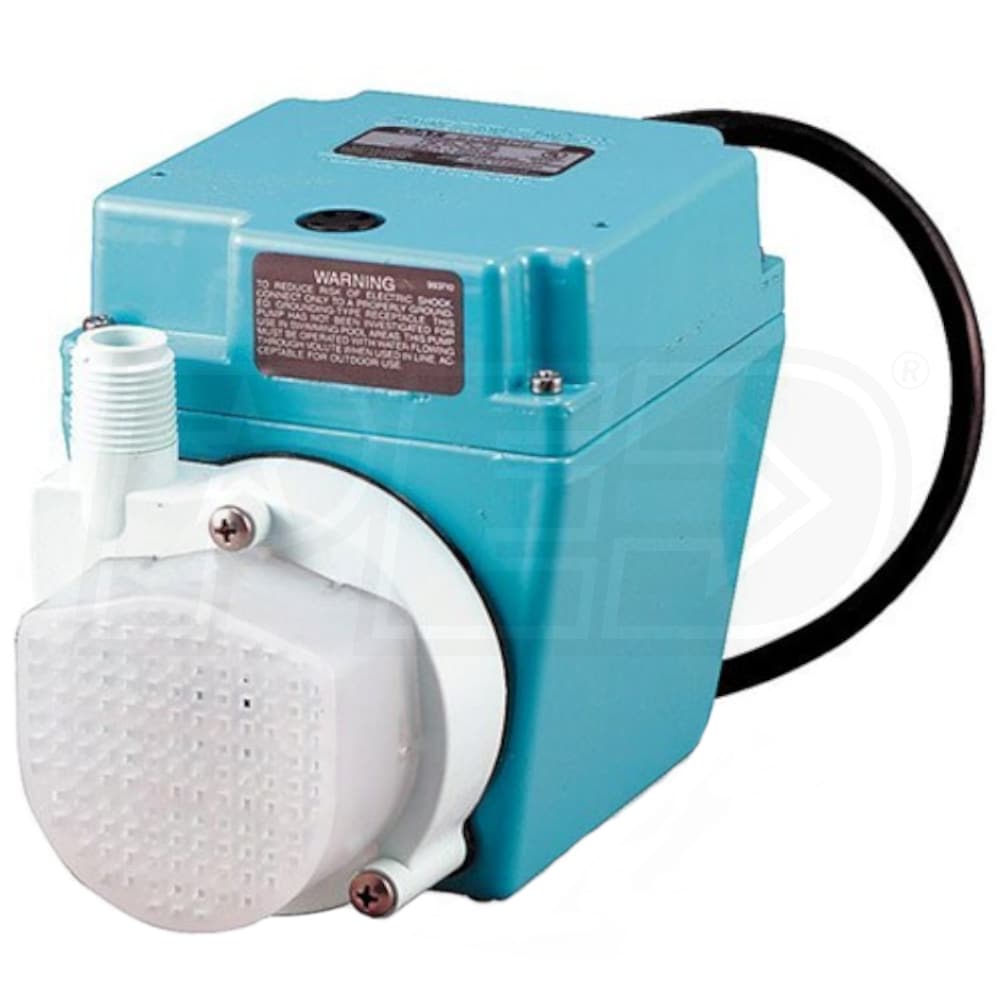

Little Giant 3E-12N - 8.3 GPM 1/15 HP Dual-Purpose Submersible Fountain Pump

Model:

503103

Write A Review
$209.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601
Little Giant 3E-12N - 8.3 GPM 1/15 HP Dual-Purpose Submersible Fountain Pump
Little Giant 3E-12N - 8.3 GPM 1/15 HP Dual-Purpose Submersible Fountain Pump
Model: 503103
$209.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Fountain

GPM

8.3 Gallons

  • Little Giant 3E-12N Oil-Filled Direct Drive Pump
  • For water transfer/recirculation/displays & machine tool colants
  • For Submersible or In-Line Use
  • 1/15 HP Oil-Filled Motor
  • Epoxy Coated Cast Aluminum Housing & Cover
  • Nylon Volute
  • Aluminum Backplate
  • Viton Shaft Seal
  • Polypropylene Screen
  • UL Listed
  • Additional Specs:

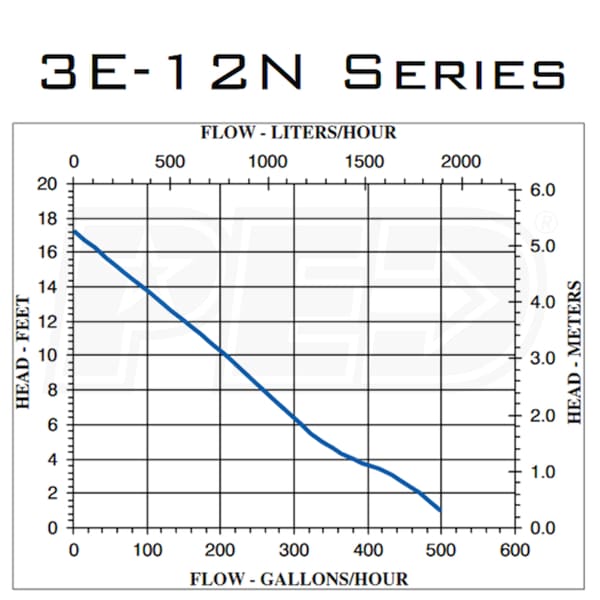

  • Capacity: 500 GPH @ 1'
  • Shut Off: 17'
  • Liquid Temprature: Up to 120°F
  • Discharge: 1/2" MNPT
  • Intake: 1/2" FNPT
  • Impeller: Nylon
  • Cord: 6'
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

503103
specs product image PID-10801
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
3.2
Thermal Protection
Yes
Power Cord Length
6 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
8.3 Gallons
Outlet Diameter
1/2 Inch
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Total Head Lift
17.3 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
Yes
Shaft Seal
Viton
Horsepower
0.06 HP
Overview
Product Category
Water Pump
Weight
8 Pounds
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.4 Inches
Product Height
5.4 Inches
UPC
010121031036
