Little Giant 503603
Little Giant 503603
Little Giant 503603
Hover to zoom
1 Of 5
Little Giant 503603
Little Giant 503603

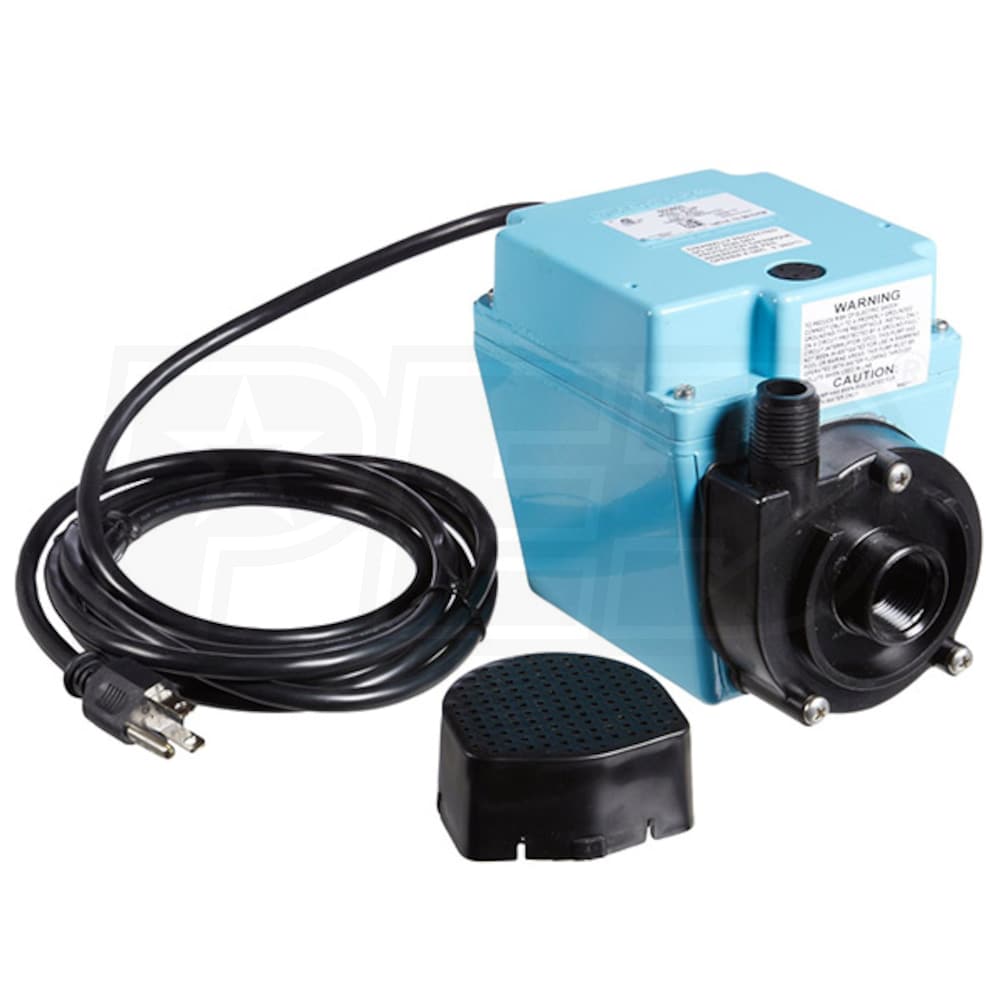

Little Giant 3E-34N - 115-Volt, 1/15 HP, 670 GPH Dual Purpose In-Line or Small Submersible, Oil-Filled Pump, 10-Ft. Cord

Model:

503603

Write A Review
$219.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601
Little Giant 3E-34N - 115-Volt, 1/15 HP, 670 GPH Dual Purpose In-Line or Small Submersible, Oil-Filled Pump, 10-Ft. Cord
Little Giant 3E-34N - 115-Volt, 1/15 HP, 670 GPH Dual Purpose In-Line or Small Submersible, Oil-Filled Pump, 10-Ft. Cord
Model: 503603
$219.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3/4 Inch

Style

Fountain

GPM

11.1 Gallons

  • Little Giant 3E-34N Oil-Filled Direct Drive Pump
  • For water transfer/recirculation/displays & machine tool colants
  • For Submersible or In-Line Use
  • 1/15 HP Oil-Filled Motor
  • Epoxy Coated Cast Aluminum Housing & Cover
  • Nylon Volute
  • Stainless Steel Backplate
  • Viton Shaft Seal
  • Polypropylene Screen
  • UL Listed
  • Additional Specs:

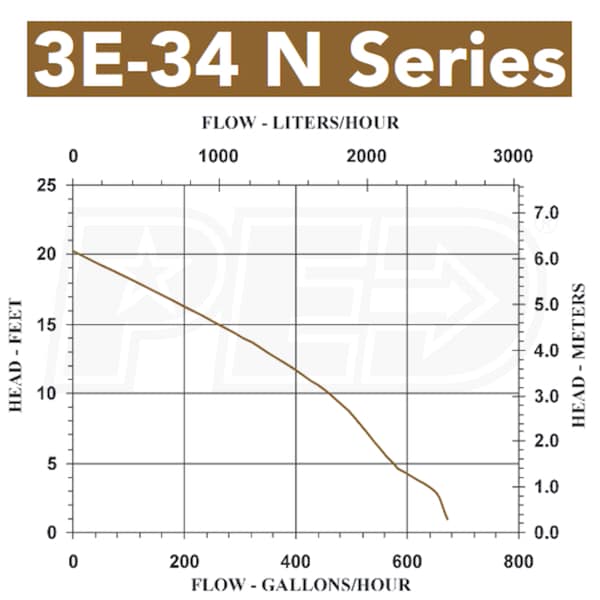

  • Capacity: 670 GPH @ 1'
  • Shut Off: 20.3'
  • Liquid Temprature: Up to 120°F
  • Discharge: 1/2" MNPT
  • Intake: 3/4" FNPT
  • Impeller: Nylon
  • Cord: 10'
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

503603
specs product image PID-10802
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
3.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Gallons Per Minute
11.1 Gallons
Inlet Diameter
3/4 Inch
Outlet Diameter
1/2 Inch
Housing Material
Aluminum
Impeller Material
Nylon
Handles Solids
No
Submersible
Yes
Engine
Oil-Cooled
Yes
Shaft Seal
Viton
Overview
Product Category
Water Pump
Consumer Warranty
1 Year
Product Length
7 Inches
Product Width
4.4 Inches
Product Height
5.4 Inches
UPC
010121036031
