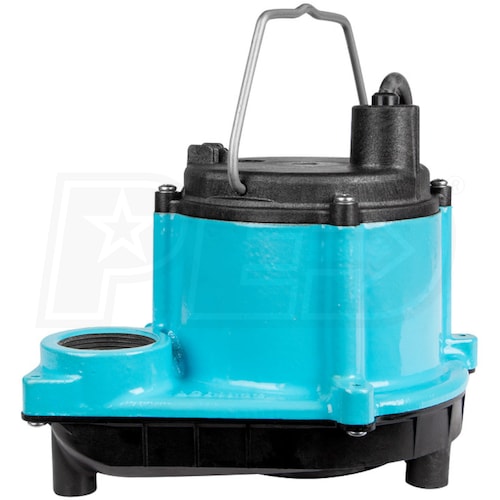

Little Giant 6-CIM-R - 1/3 HP Cast Iron Automatic Sump Pump w/ 25' Cord (Non-Automatic)

Model:

506274

Write A Review
$168.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Nov 13th
Shipping to60601
Little Giant 6-CIM-R - 1/3 HP Cast Iron Automatic Sump Pump w/ 25' Cord (Non-Automatic)
Little Giant 6-CIM-R - 1/3 HP Cast Iron Automatic Sump Pump w/ 25' Cord (Non-Automatic)
Model: 506274
$168.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

2760 Gallons

Switch Type

None

  • ***NON-AUTOMATIC - Requires Float Switch***
  • Little Giant 506274 - 6-CIA-R - 1/3 HP Sump Pump (115V)
  • Continuous duty rated for basement & crawlspace applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Reduces clogging while providing consistent pumping
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper & Lower Sintered-Sleeve Bearing
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 25' Power Cord
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506274
specs product image PID-153275
General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
14.3
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Handles Solids
No
Float Type
No Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Manual Override
No
Max Head
18 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
16.5 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
7.25 Inches
UPC
010121062740
