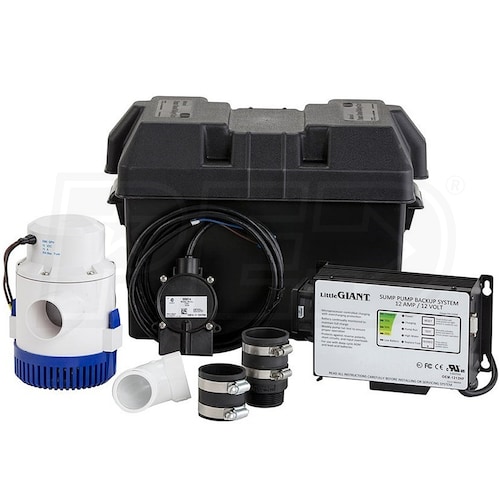

Little Giant SPBS-12HF - Battery Backup Sump Pump System (1440 GPH @ 10')

Model:

506407

Write A Review
$442.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Little Giant SPBS-12HF - Battery Backup Sump Pump System (1440 GPH @ 10')
Little Giant SPBS-12HF - Battery Backup Sump Pump System (1440 GPH @ 10')
Model: 506407
$442.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Back-up

GPH

3180 Gallons

Switch Type

Diaphragm

  • Protect Your Home + Added Peace Of Mind
  • Secondary sump pump, flood protection, and emergency dewatering
  • Automatically starts when your existing sump pump fails
  • Senses power outages and begins using battery power
  • Battery Backup Sump Pump
  • Empties the sump pit after a malfunction, outage or excess water
  • 3180 GPH at 0' and 1440 GPH @ 10'
  • 23' shut off/maximum lift
  • 12-Volt DC Backup Pump
  • Durable non-corrosive pump housing with stainless steel fasteners
  • Easily removed bottom suction screen for serviceability and maintenance
  • Capable of handling 1/8 inch solids in sump applications
  • 12-Amp Controller/Charger/Alarm Unit
  • Test button to manually run backup pump to insure proper operation
  • Battery continually monitored to maintain full charge
  • 6' power cord on pump and charging unit
  • BATTERY SOLD SEPARATELY
  • Use only with 12 VDC deep cycle battery (Size 27)
  • Rated 85-140Ah, lead-acid or AGM
  • Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
  • For Indoor Use Only
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506407
specs product image PID-70658
General Information
Product Category
Sump Pump
Motor
Voltage
12 Volt DC
Running Amps
15
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Quick Clean Out
Yes
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Maximum PSI
10
Float Type
Diaphragm
GPH @ 0 feet
3180
GPH @ 5 feet
2340
GPH @ 10 feet
1440
GPH @ 15 feet
780
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Float On
13.5
Float Off
9
Battery Recharger
12 Amps
Max Head
23 Feet
Overview
Product Category
Sump Pump
Weight
11.5 Pounds
Consumer Warranty
2 Years
UPC
010121148031
Accessories
Alarm
Yes
Wi-Fi enabled
No
