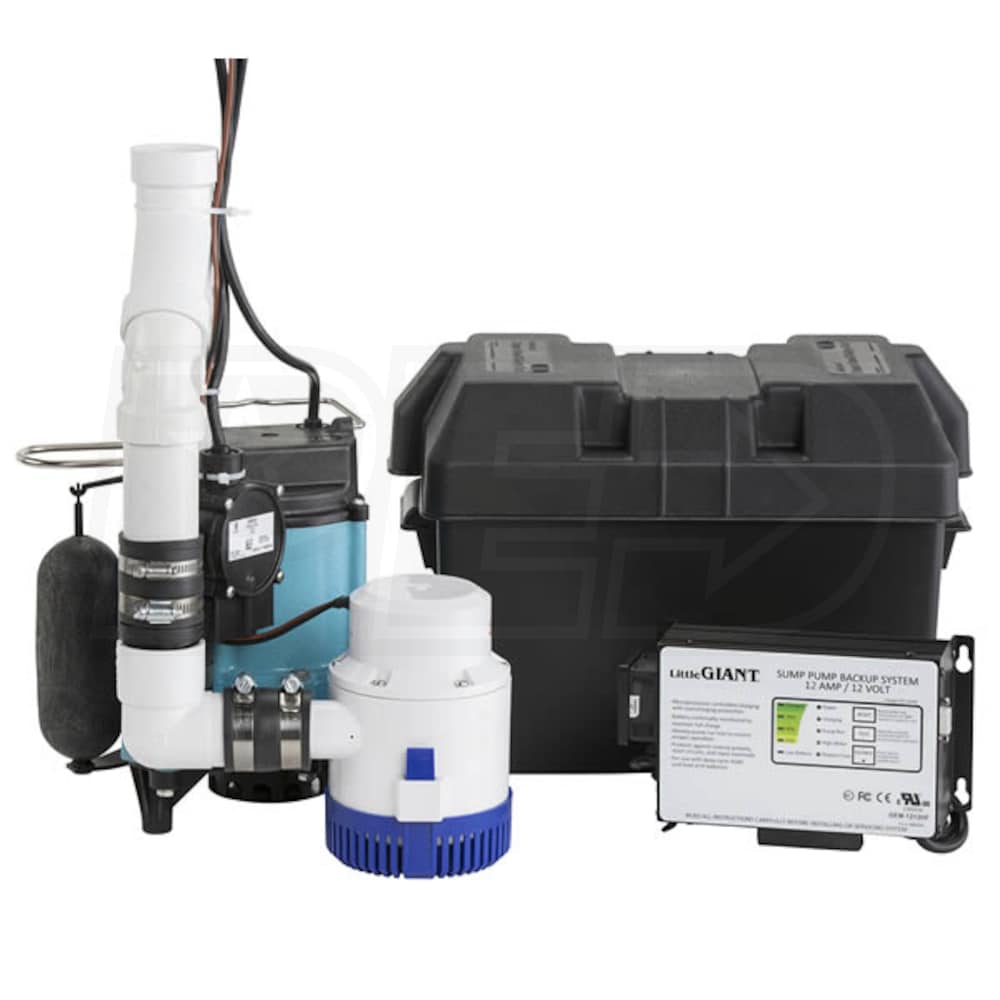

Little Giant SPBS-12HF-10 - 1/2 HP Combination Primary & Backup Sump Pump System

Model:

506410

Write A Review
$817.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Little Giant SPBS-12HF-10 - 1/2 HP Combination Primary & Backup Sump Pump System
Little Giant SPBS-12HF-10 - 1/2 HP Combination Primary & Backup Sump Pump System
Model: 506410
$817.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Combo

GPH

4020 Gallons

Switch Type

Diaphragm

  • Protect Your Home + Added Peace Of Mind
  • Easy and quick installation
  • Check valve, elbow connector, & pump coupling included
  • Diaphragm switch eliminates moving parts switch error
  • 12-Volt DC Backup Pump
  • Empties the sump pit after a malfunction, outage or excess water
  • 3180 GPH at 0' and 1440 GPH @ 10'
  • 23' shut off/maximum lift
  • 1/2 HP Primary Pump (10EC-CIA-SFS)
  • Energy-efficient permanent split capacitor (PSC) motor
  • Automatic reset thermal overload protection
  • Heavy-duty cast iron construction
  • 12-Amp Controller/Charger/Alarm Unit
  • Test button to manually run backup pump to insure proper operation
  • Battery continually monitored to maintain full charge
  • 6' power cord on pump and charging unit
  • BATTERY & BATTERY ACID IS SOLD SEPARATELY
  • Use only with 12 VDC deep cycle battery
  • Rated 85-140Ah, lead-acid or AGM
  • Diaphragm Switch, Check Valve, Elbow Connector, & Pump Coupling Included
  • For Indoor Use Only
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506410
specs product image PID-70660
General Information
Product Category
Sump Pump
Motor
Running Amps
15
Battery Included
No
Power Cord Length
6 Feet
Starting Amps
32
Pump
Outlet Diameter
1-1/2 Inch
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Housing Material
Cast Iron
Solids Handling Size
1/8 inch
Handles Solids
No
Maximum PSI
15.6
Total Head Lift
36 Feet
Float Type
Diaphragm
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3420
GPH @ 20 feet
2820
Backup GPH @ 0 feet
3180
Check Valve Included
Yes
Float On
13.5
Float Off
9
Backup GPH @ 5 feet
2340
Backup GPH @ 10 feet
1440
Backup GPH @ 15 feet
780
Battery Recharger
12 Amps
Max Head
23 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
31.5 Pounds
Consumer Warranty
2 Years
UPC
010121148116
