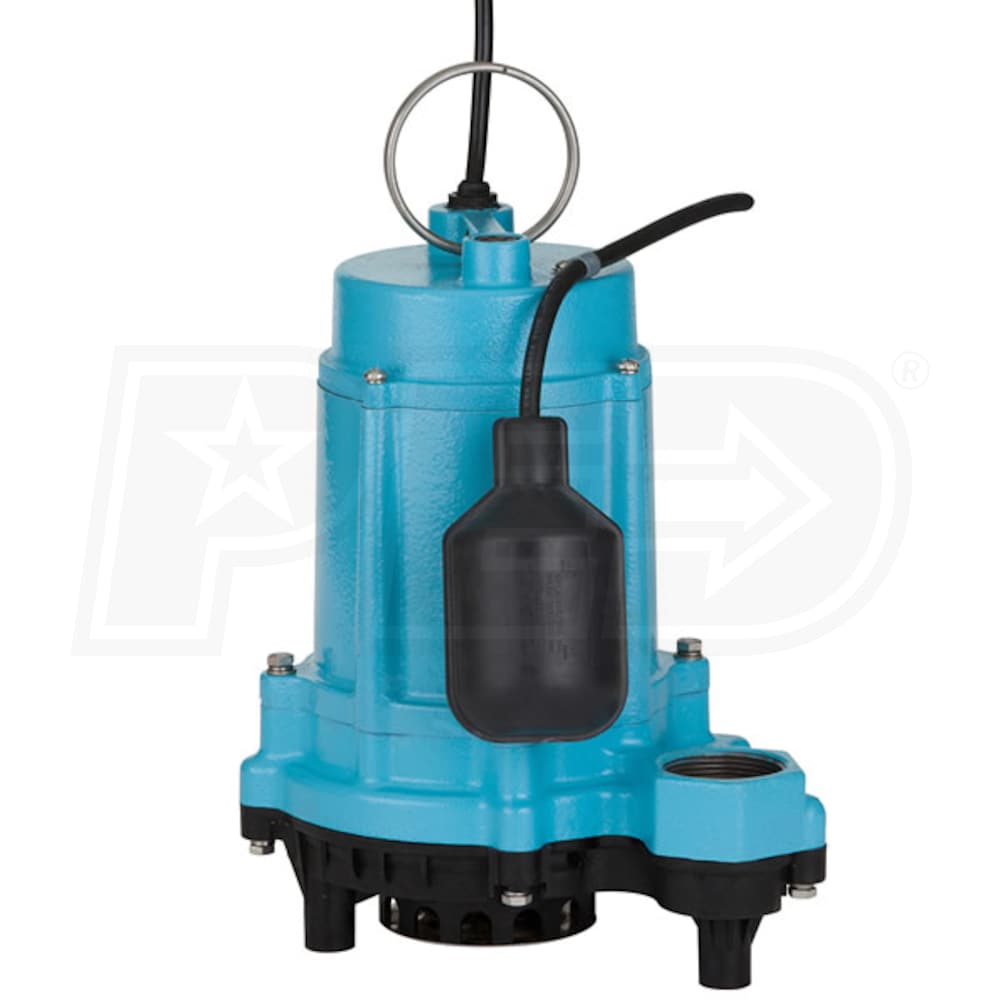

Little Giant 6EC-CIA-RF - 1/3 HP Submersible Sump Pump w/ Piggyback Tether Float Switch

Model:

506803

Write A Review
$216.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks
Little Giant 6EC-CIA-RF - 1/3 HP Submersible Sump Pump w/ Piggyback Tether Float Switch
Little Giant 6EC-CIA-RF - 1/3 HP Submersible Sump Pump w/ Piggyback Tether Float Switch
Model: 506803
$216.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3180 Gallons

Switch Type

Piggy-Back Tether

  • Automatic Submersible Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Piggyback Tether Float Switch
  • Increase cycle time for optimal water removal
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506803
specs product image PID-70639
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Maximum PSI
12.1
Total Head Lift
28 Feet
Float Type
Piggy-Back Tether Switch

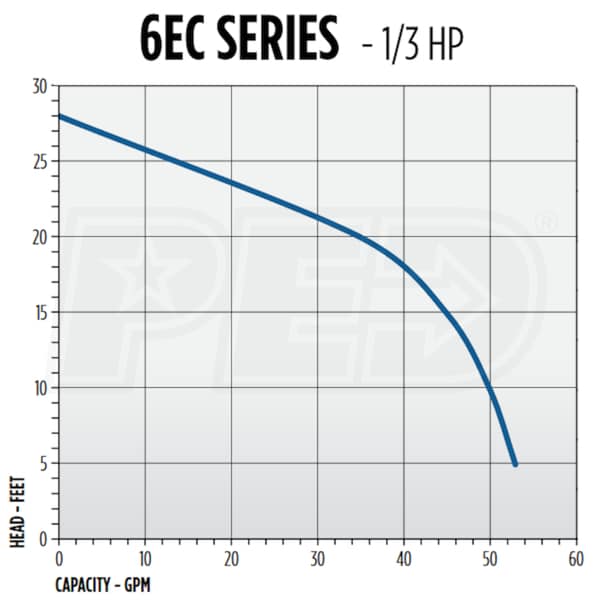

GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
13-15 Inches
Float Off
6-8 Inches
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
27.5 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121149045
