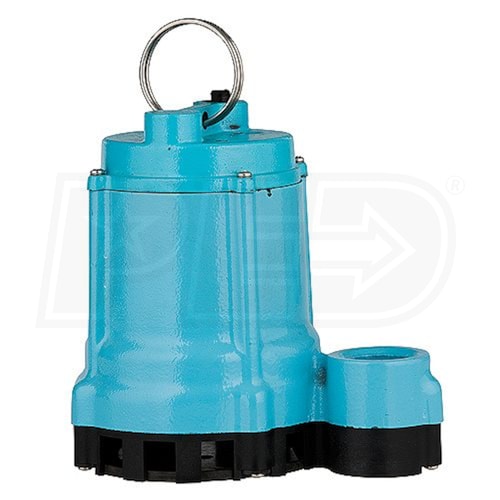

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (30' Cord) (Non-Automatic)

Model:

509808

Write A Review
$317.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks

Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (30' Cord) (Non-Automatic)
Little Giant 9EC-CIM - 4/10 HP Cast Iron Effluent Pump (30' Cord) (Non-Automatic)
Model: 509808
$317.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Style

Effluent

GPH

4200 Gallons

Switch Type

None

  • *NON-AUTOMATIC - Float Switch Req'd For Auto Operation *
  • Continuous Duty Rated Automatic Submersible Effluent Pump
  • For sump & effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 4/10 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (7.5-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 3/4" solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 30-Foot Power Cord
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509808
specs product image PID-109621
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7.5
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

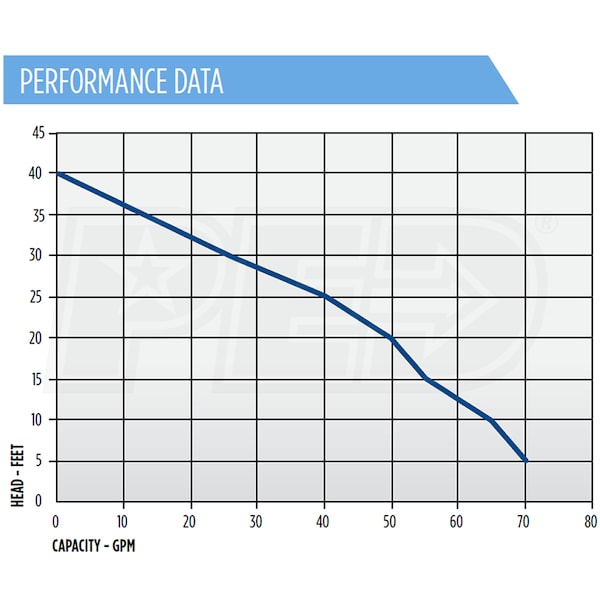

GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
38.5 Pounds
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
UPC
010121003217
