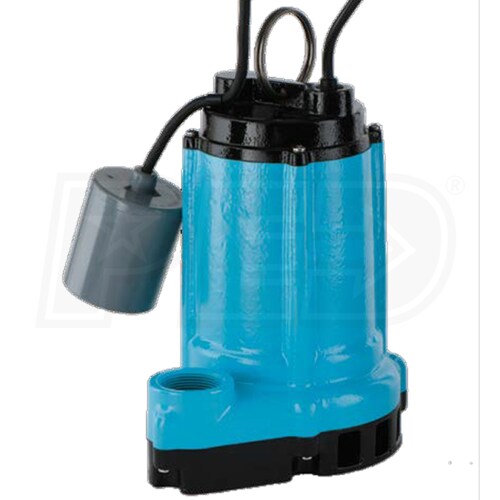

Little Giant 10ECH-CIA-RF - 1/2 HP Cast Iron High Head Effluent / Sump Pump w/ Piggyback Tether Float Switch (30' Cord)

Model:

511622

Write A Review
$549.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks

Little Giant 10ECH-CIA-RF - 1/2 HP Cast Iron High Head Effluent / Sump Pump w/ Piggyback Tether Float Switch (30' Cord)
Little Giant 10ECH-CIA-RF - 1/2 HP Cast Iron High Head Effluent / Sump Pump w/ Piggyback Tether Float Switch (30' Cord)
Model: 511622
$549.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

3600 Gallons

Switch Type

Piggy-Back Tether

  • Continuous Duty Rated Automatic Effluent / Sump Pump
  • Designed For High Head Applications
  • Capable of delivering heads up to 60-feet
  • Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (9-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solds
  • Piggyback Tethered Float Switch
  • Switch can be bypassed to run pump manually in an emergency
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 30-Foot Power Cord
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

511622
specs product image PID-110287
General Information
Product Category
Sump Pump
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
Yes
Pump
Housing Material
Cast Iron
Solids Handling Size
.75 inch
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3000
GPH @ 20 feet
2700
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
60 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
39 Pounds
Consumer Warranty
2 Years
Product Length
8.5 Inches
Product Width
8.4 Inches
Product Height
11.3 Inches
UPC
010121003064
