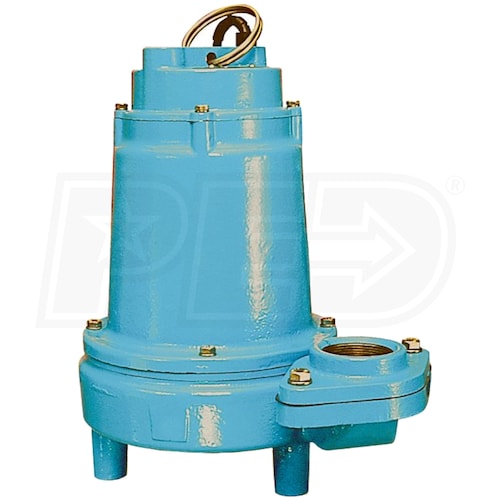

Little Giant 16EH-CIM - 1 HP Cast Iron Effluent Pump (Non-Automatic) (208-240V 3-Phase)
Model:
514530
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5400 Gallons
Switch Type
None
- ***NON-AUTOMATIC - Requires Control Panel***
- Little Giant 16EH-CIM - 1 HP Cast Iron Effluent Pump (208-240V 3-Phase)
- Continuous duty rated for high-flow and high-head applications
- Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
- Minimizes rust & corrosion to extend overall pump life
- 1 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (6.6-Amps full load)
- Cooler running motor which extends the life of the pump
- Epoxy Coated Cast Iron Volute w/ Cast Iron Impeller
- Non-clogging design passes up to 3/4" spherical solids
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection is harsh wastewater conditions
- Upper & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Screws, Bolts & Handle
- Designed to prevent rust and corrosion
- 20-Foot SJTW-A Power Cord w/ Bare Leads (No Plug)
- 81' Max Shutoff Head
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
514530
Base
Base Material
Cast Iron
Motor
Voltage
230 Volt 3-Phase
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
25
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

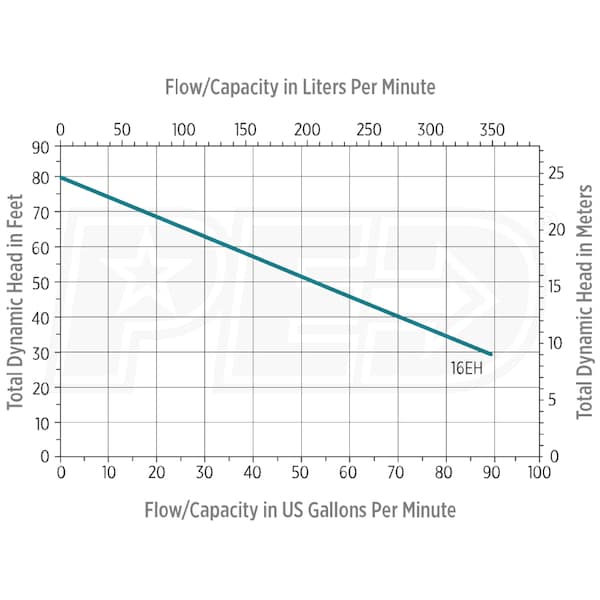

GPH @ 0 feet
5400
GPH @ 5 feet
5400
GPH @ 10 feet
5400
GPH @ 15 feet
5400
GPH @ 20 feet
5400
Discharge Port Size
2 Inch
Manual Override
Yes
Max Head
81 Feet
Submersible
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
82 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
14.1 Inches
Product Width
9.9 Inches
Product Height
16.2 Inches
UPC
010121145306
