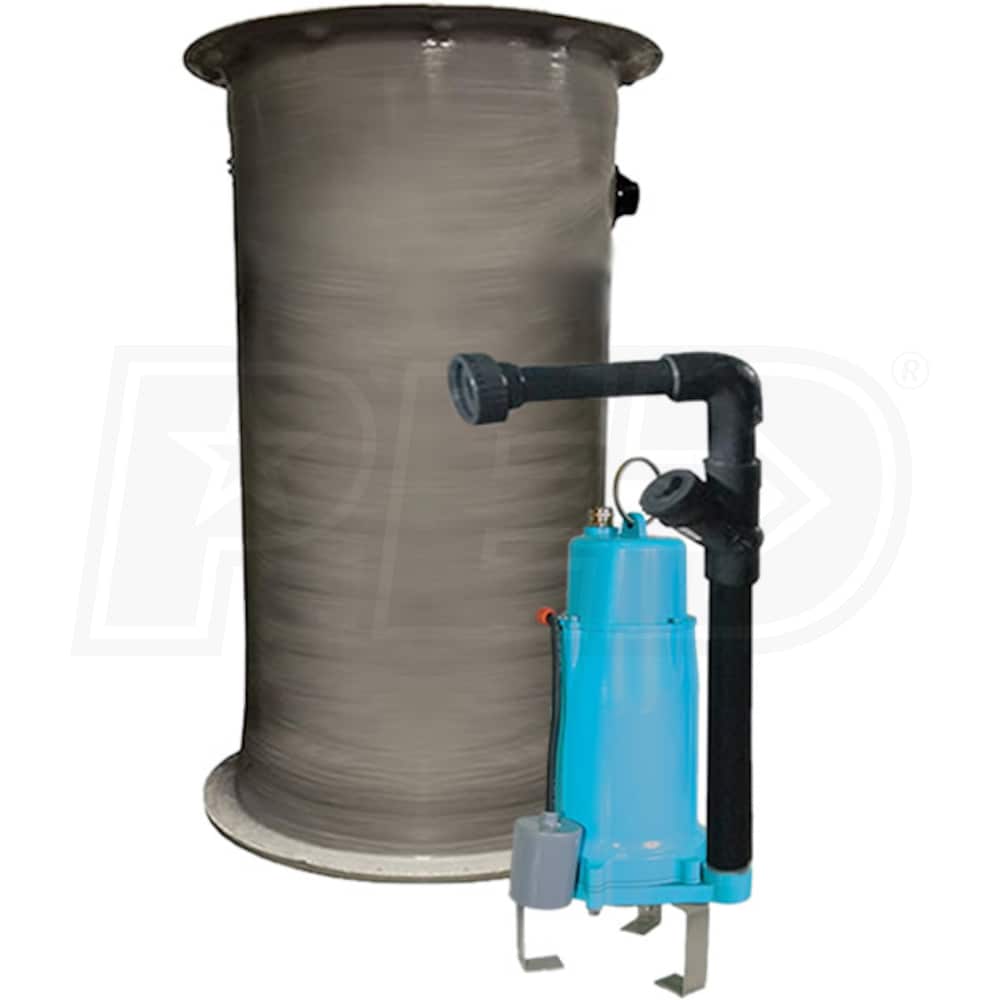

Little Giant GP-SMPXFG-HP - 2 HP GP Series Hard-Piped Simplex Grinder Pump System (24"x 60" - 208-230V 1Ø)
Model:
520825
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
1920 Gallons
Switch Type
Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- GP-SMPXFG-HP - 2 HP Simplex Grinder Package (208-230V 1P)
- Basin comes configured with hard pipe installation
- SCH 80 PVC discharge piping with union disconnect
- Automatic Operation Without A Control Panel
- Starting components are integrated into pump
- Eliminates the need for a separate control panel
- 24" x 60" (Deep) Heavy-Duty Fiberglass Basin
- Ribbed structural foam cover blends into outdoor terrain
- 4" Adapt-A-Flex inlet hub for easy connection to drain line
- Wide Angle, Piggyback Tether Float Switch
- Provides reliable automatic operation in sewage applications

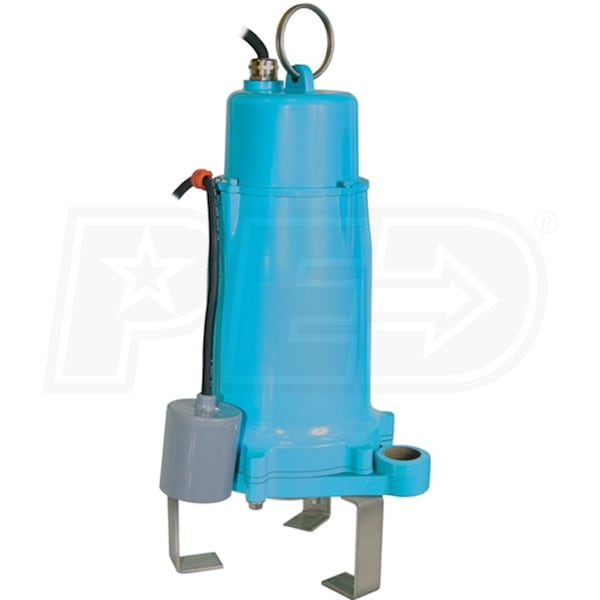

- Little Giant GP-A231 2 HP Grinder Pump (208-230V Single Phase)
- Thermally protected, heavy-duty motor provides Up to 130' Lift
- Epoxy Powder Coated Cast Iron Construction
- Provides excellent corrosion-resistance & durability
- Hardened Stainless Steel, Patented Cutter Design
- Tight cutting clearances for better shearing action; 414,000 cuts/hour
- 1-1/4" SCH 80 PVC Check Valve & Ball Valve
- Meets backflow requirements for most applications
- 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
520825
Base
Base Material
Cast Iron
Motor
Voltage
208/230 Volt
Running Amps
13.9
Thermal Protection
Yes
Power Cord Length
15 Feet
Pump
Housing Material
Cast Iron
Float Type
Tether Switch
GPH @ 0 feet
1920
GPH @ 5 feet
1920
GPH @ 10 feet
1920
GPH @ 15 feet
1920
GPH @ 20 feet
1920
Discharge Port Size
1-1/4 Inch
Check Valve Included
Yes
Manual Override
Yes
Engine
Horsepower
2 HP
Overview
Weight
219 Pounds
Consumer Warranty
2 Years
Product Length
28 Inches
Product Width
24 Inches
Product Height
70 Inches
