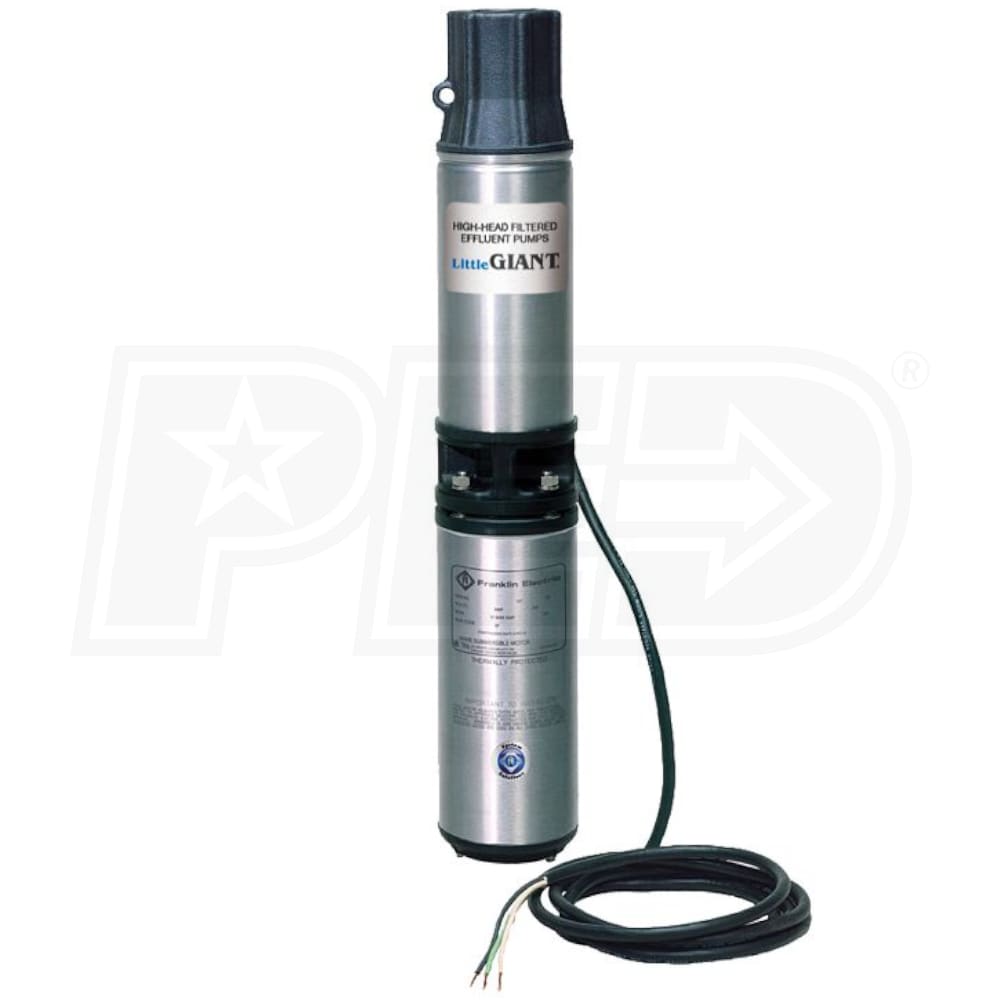

Little Giant WE10G05P4-22 - 1/2 HP 10 GPM High Head Submersible 4" Stainless Steel Filtered Effluent / Fountain Pump (2W 230V)
Model:
558222
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Inlet Size
N/A
Style
Dewatering
GPM
10 Gallons
- WE Series - WE10G05P4-22 - 1/2 HP 10 GPM Filtered Effluent Pump (115V)
- Pump treated effluent longer distances for deep water and higher head applications
- Ideal for aeration, ornamental fountains and water fountains
- 4" Submersible Pump (2-Wire 230V)
- 15 GPM @ 50'; 10 GPM @ 150'
- 1/2 HP Franklin Electric Submersible Motor
- Heavy-duty 300 V 10' SJOW jacketed leads
- Stainless Steel Housing
- Proven PPO staging allows close tolerances and increased performance
- High Quality Top Bearing
- For maximum durability and years of reliable service
- Hex Rubber Bearing
- Extra-large surface for shaft stability
- Multiple flow channels for keeping particles away from bearing surfaces
- Additional Features
- Removable built-in check valve
- Non-corrosive thermoplastic discharge and motor brackets
- Stainless steel up thrust washer prevents excessive wear in service applications
- cCSAus Listed
- 36-Month Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
558222
General Information
Product Category
Water Pump
Motor
Voltage
230 Volt
Running Amps
5
Wire
2-Wire
Power Cord Length
10 Feet
Starting Amps
23.2
Pump
Gallons Per Minute
10 Gallons
Outlet Diameter
1-1/4 Inch
Housing Material
Stainless Steel
Impeller Material
Plastic
Handles Solids
Yes
Check Valve Included
Yes
Max Head
260 Feet
Submersible
Yes
Engine
Horsepower
0.5 HP
Overview
Product Category
Water Pump
Weight
24 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
21.9 Inches
Product Width
3.75 Inches
UPC
010121118294
