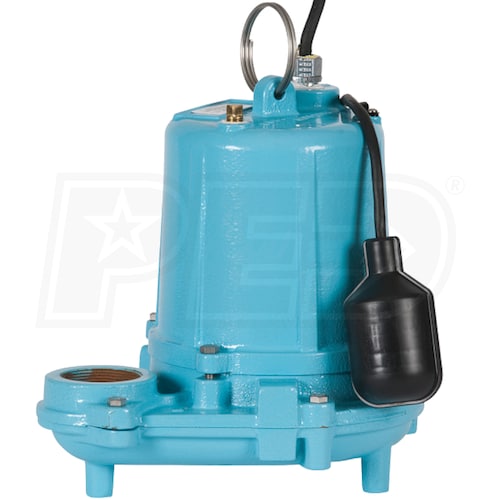

Little Giant WS30AM - 1/3 HP Cast Iron Effluent Pump (2") w/ PB Tether Float (20' Cord)
Model:
620000
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5400 Gallons
Switch Type
Piggy-Back Tether
- Little Giant WS30AM - 1/3 HP Cast Iron Auto Effluent Pump (115V)
- Continuous duty rated for wastewater removal, dewatering or transfer
- Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/3 HP Split-Phase Motor w/ Thermal Overload Protection
- High-torque design w/ low amp draw (10.4-Amps full load)
- Piggyback Tethered Float Switch
- Versatile design allows for automatic or manual operation
- Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller
- Non-clogging design passes up to 3/4" solids
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection in harsh wastewater conditions
- 2" FNPT Discharge
- Easily connect to your current discharge without any changes
- Upper & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Screws, Bolts & Handle
- Designed to prevent rust and corrosion
- 20-Foot SJOW Power Cord
- 28' Max Shutoff Head
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
620000
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
10.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
50.4
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch

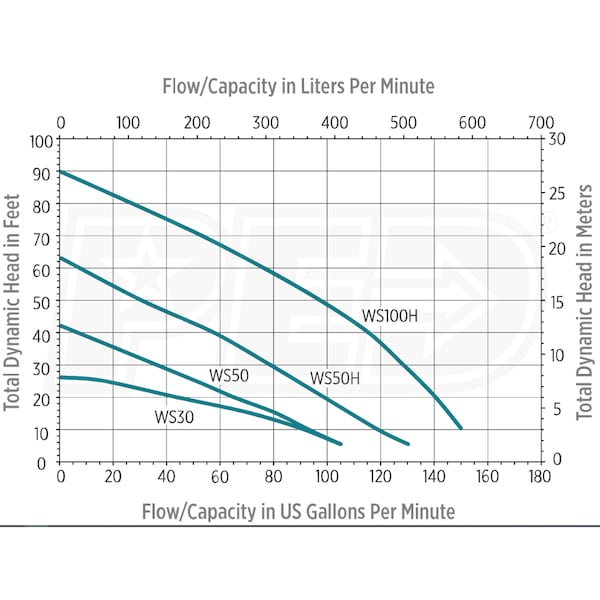

GPH @ 0 feet
5400
GPH @ 5 feet
5400
GPH @ 10 feet
5400
GPH @ 15 feet
4200
GPH @ 20 feet
2700
Discharge Port Size
2 Inch
Manual Override
Yes
Max Head
28 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
53 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.25 Inches
Product Width
9.38 Inches
Product Height
11.25 Inches
UPC
010121121287
