Little Giant WS52AM - 1/2 HP Cast Iron Automatic Sewage Pump (2") w/ PB Tether Float & 20' Cord

Model:

620003

Write A Review
$554.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Little Giant WS52AM - 1/2 HP Cast Iron Automatic Sewage Pump (2
Little Giant WS52AM - 1/2 HP Cast Iron Automatic Sewage Pump (2") w/ PB Tether Float & 20' Cord
Model: 620003
$554.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

8100 Gallons

Switch Type

None

  • Little Giant WS52AM - 1/2 HP Cast Iron Automatic Sewage Pump (115V)
  • Continuous duty rated for light to medium demands
  • Epoxy Coated Cast Iron Pump Housing w/ 2" Discharge
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (11.6-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller
  • Non-clogging design passes up to 2" spherical solids
  • Piggyback Tether Float Switch
  • Provides reliable automatic operation
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection is harsh wastewater conditions
  • Upper & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Stainless Steel Screws, Bolts & Handle
  • Designed to prevent rust and corrosion
  • 20-Foot SJTW Power Cord
  • 23' Max Shutoff Head
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

620003
specs product image PID-153027
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
11.6
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

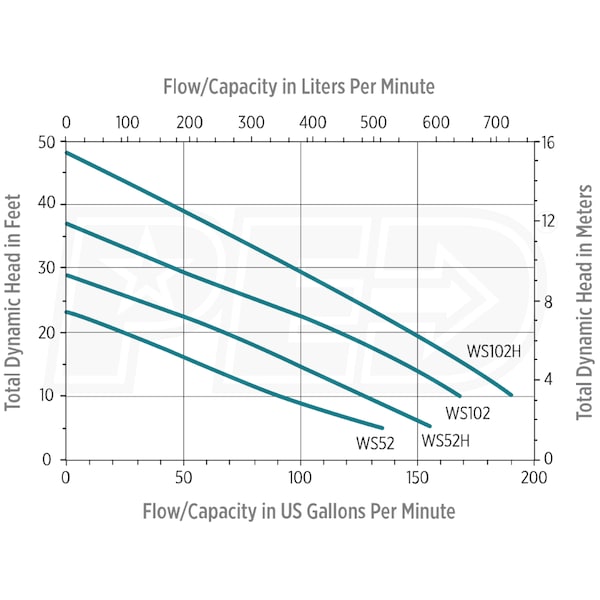

GPH @ 0 feet
8100
GPH @ 5 feet
8100
GPH @ 10 feet
5400
GPH @ 15 feet
2820
GPH @ 20 feet
840
Discharge Port Size
2 Inch
Max Head
23 Feet
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
56.99 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.25 Inches
Product Width
9.38 Inches
Product Height
14 Inches
UPC
010121121300
