Little Giant 25LGIL1100N4 - Inline Constant Pressure System (230V)

Model:

90411101

Write A Review
$3,445.60
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

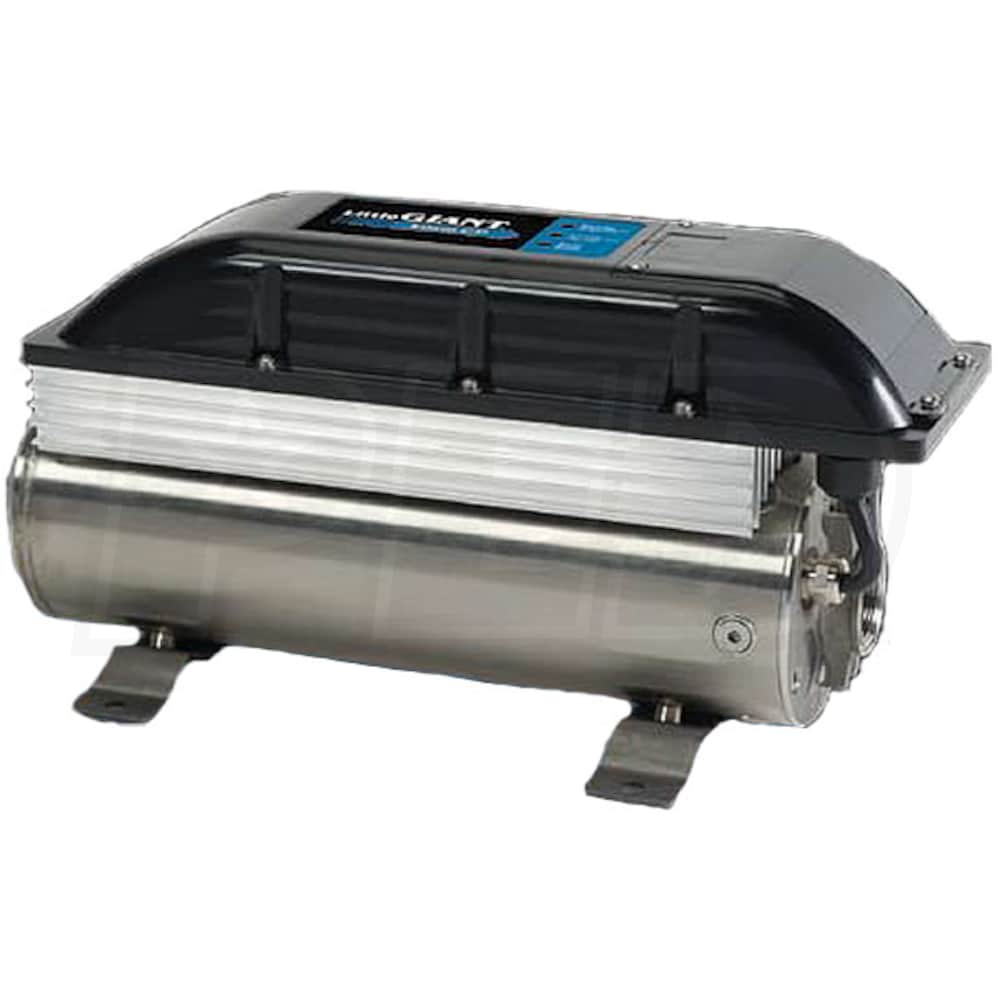

Little Giant 25LGIL1100N4 - Inline Constant Pressure System (230V)
Little Giant 25LGIL1100N4 - Inline Constant Pressure System (230V)
Model: 90411101
$3,445.60
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Inlet Size

1-1/4 Inch

Style

GPM

35 Gallons



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Inline CP Constant Pressure System (230V)
  • Provides constant pressure for both wells & city water
  • Boosted & constant pressure from water storage tanks/cisterns
  • Packaged System - Pump, Motor, Drive & Pressure Sensor
  • Add a 2-4 gallon pressure tank (Not Included) and you're ready
  • Stainless Steel Construction w/ NEMA 4 Electronics Enclosure
  • Designed for years of reliable operation
  • Quiet & Cool Operation

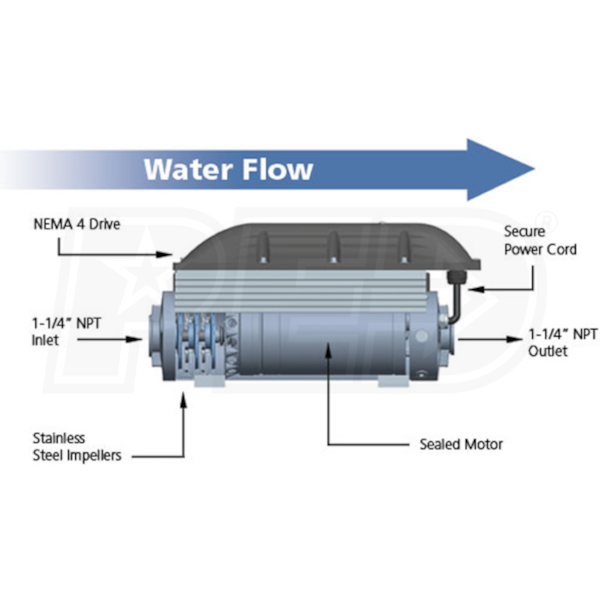

  • Integrated motor design allows water to flow around it
  • Built-In System Protections
  • Surge protection, voltage underload, locked pump, etc.
  • Small & Compact Design w/ Multiple Mounting Configurations
  • Fits into small areas, even between floor joists
  • Can be installed horizontal, vertical and even upside down
  • Simple & Easy Installation
  • Step-by-step illustrated instructions
  • Please Note - Not Designed To Draw/Lift Water
  • Requires Minimum 3 PSI Incoming Pressure or Flooded Intake
  • 2-Year Warranty

Specifications

90411101
specs product image PID-12417
General Information
Product Category
Water Pump
Motor
Voltage
240 Volt Single-Phase
Running Amps
12
Pump
Gallons Per Minute
35 Gallons
Inlet Diameter
1-1/4 Inch
Outlet Diameter
1-1/4 Inch
Maximum PSI
80
Submersible
No
Engine
Continuous Operation
Yes
Oil-Cooled
No
Horsepower
1.2 HP
Overview
Product Category
Water Pump
Weight
50 Pounds
Consumer Warranty
2 Years
Product Length
18.8 Inches
Product Width
8 Inches
Product Height
9.3 Inches
UPC
010121006089

Reviews

(5)
Little Giant 90411101 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
Do you have any additional information on this system and the installation?
Bob J
from Illinois
January 14, 2014
