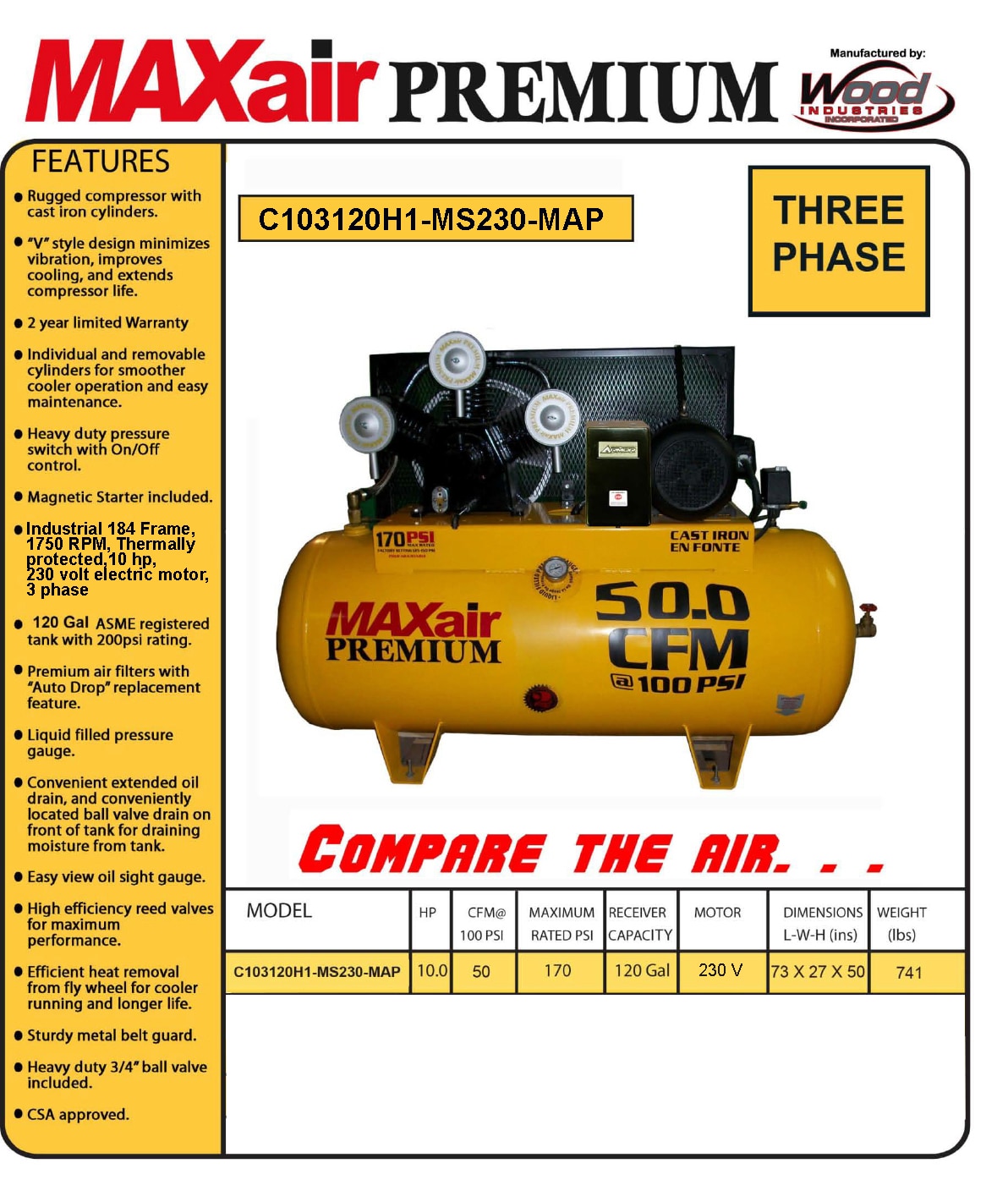

MAXair Premium 10-HP 120-Gallon Single-Stage Air Compressor (230V 3-Phase)

Model:

C103120H1-MS230-MAP

Write A Review
$3,674.99
Was $4,899.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

MAXair Premium 10-HP 120-Gallon Single-Stage Air Compressor (230V 3-Phase)
MAXair Premium 10-HP 120-Gallon Single-Stage Air Compressor (230V 3-Phase)
Model: C103120H1-MS230-MAP
$3,674.99
Was $4,899.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

CFM

50

Tank Size

120

  • MaxAir Premium Single-Stage Stationary Air Compressor
  • Advanced features and superior performance
  • Can be installed and operated in all garages, farm shops & industrial applications
  • 10-HP Industrial 1750 RPM Electric Motor
  • Durable 184 frame and thermal protection
  • Low RPM design reduces heat for less & tear
  • Rugged Cast Iron "V" Style 3 Cylinder Pump
  • High efficiency reed valves for maximum performance
  • V-style minimizes vibration, improves cooling for longer service
  • Removable cylinders for smooth operation & easy maintenance
  • Efficient heat removal from flywheel for cooler running & longer life
  • Reliable High-Quality Features
  • Prewired magnetic starter for a trouble-free operation
  • Pressure switch with On/Off control for efficient air demand
  • Premium "Auto Drop" Air Filters
  • Automotive style filter elements; no hassle replacement
  • 120 Gallon ASME Certified Air Tank
  • Heavy duty 3/4" ball valve included
  • Government registered tank; rated to 200 PSI
  • Pro-Style Gauges
  • Liquid filled pressure gauge is easy to read
  • Easy-view oil sight gauge for optimum maintenance
  • Convenient Drains
  • Extended oil drain allows for easy access
  • Moisture drain on front of tank eliminates scraped knuckles
  • Generous 2-Year Commercial Manufacturer Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

C103120H1-MS230-MAP
specs product image PID-161497
Motor
Voltage
230 Volt AC
Phase
3-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
50
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
120 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor
Weight
741 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
72 Inches
Product Width
27 Inches
Product Height
50 Inches
Power Type
Electric
UPC
020791502323
