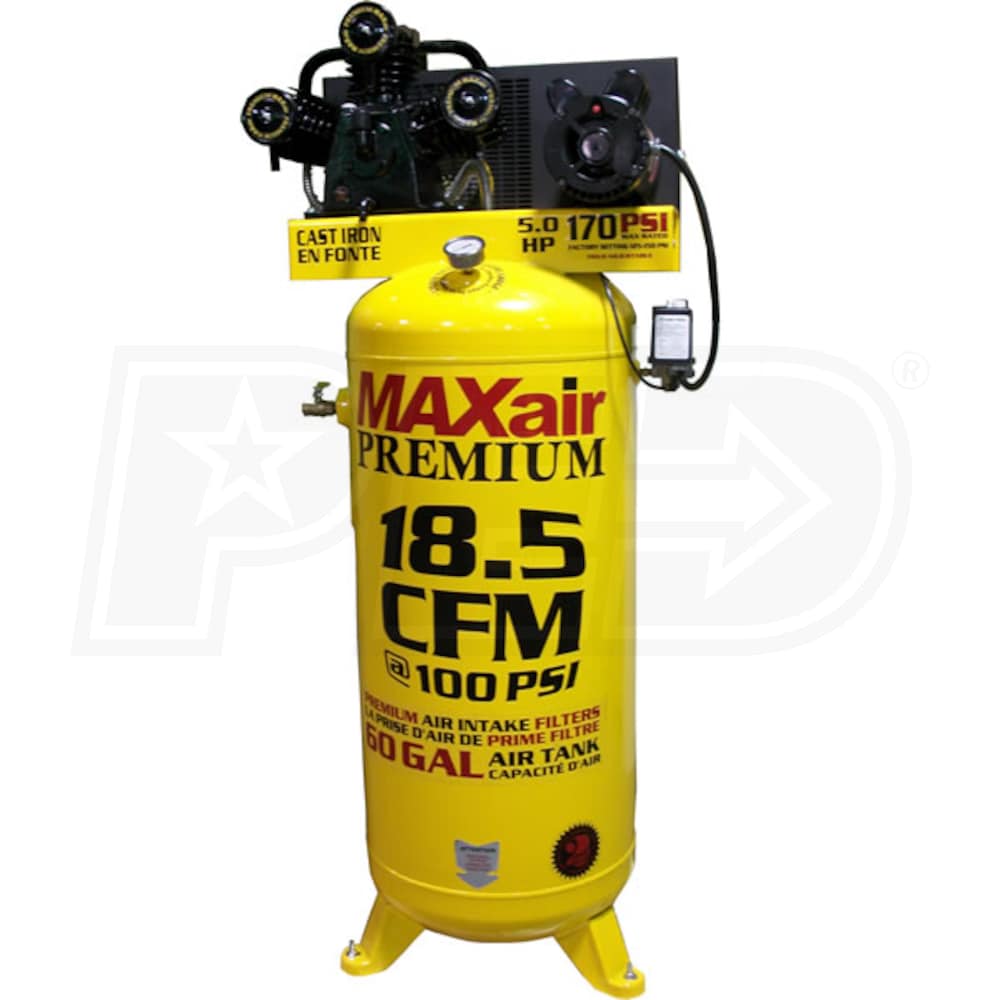

MAXair 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)

Model:

C5160V1-MAP

Write A Review
$1,689.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability February 03, 2025
Shipping to60601

MAXair 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
MAXair 5-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase)
Model: C5160V1-MAP
$1,689.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

18.5

Tank Size

60

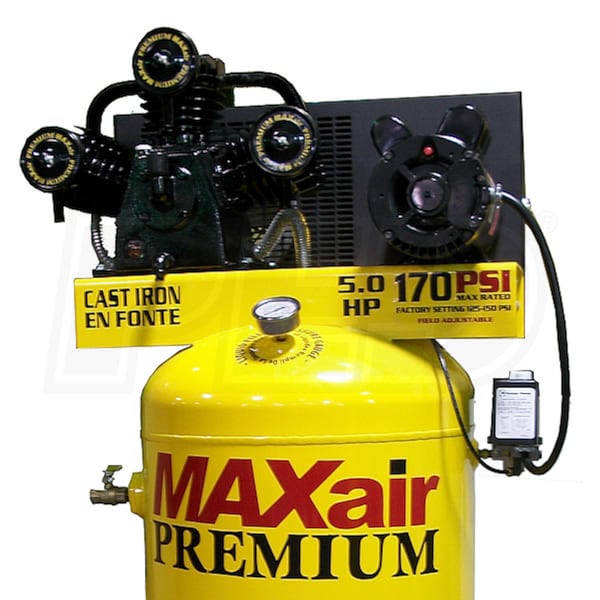

  • Rugged Cast Iron Cylinders
  • Built to work hard and last a long time
  • "V" Design
  • Minimizes vibration, improves cooling, extends compressor life
  • Individual & Removable Cylinders
  • For smoother & cooler operation
  • Heavy Duty Pressure Switch
  • With convenient on/off control
  • Metal Air Filters With "Auto Drop" Feature
  • Extends compressor life, easy to maintain
  • 208/230V Single Phase Motor
  • Thermally protected; mag starter not required
  • 60 Gallon ASME Tank Rated To 150 PSI
  • Liquid filled pressure gauge is easy to read
  • Convenient oil drain on front of unit
  • Easy view oil sight gauge
  • 2 Year Manufacturer's Warranty
  • Extends to 3 years with Maintenance Kit added at time of purchase
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

C5160V1-MAP
specs product image PID-5497
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
280 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
31 Inches
Product Width
23 Inches
Product Height
67 Inches
Power Type
Electric
UPC
777589002717

Reviews

(19)
MAXair C5160V1-MAP Reviews & Ratings

Product Q&A

(2)
Expert avatar photo
Product Questions Answered by Melissa, the Air Compressor Expert
What amp breaker is recommended?
Bryan M.
from California
April 13, 2020
Hi Steve, I'm doing a wiring walkthrough on my new garage on Tuesday. Looking at single stage 60 to 80 gallon compressor with enough flow to run a HVLP paint gun. Looks llike this MAXair model is right for my needs. Could you tell me the amperage draw of this compressor so I can get it in my specs?
Jon Williams
from Iowa
June 28, 2015
