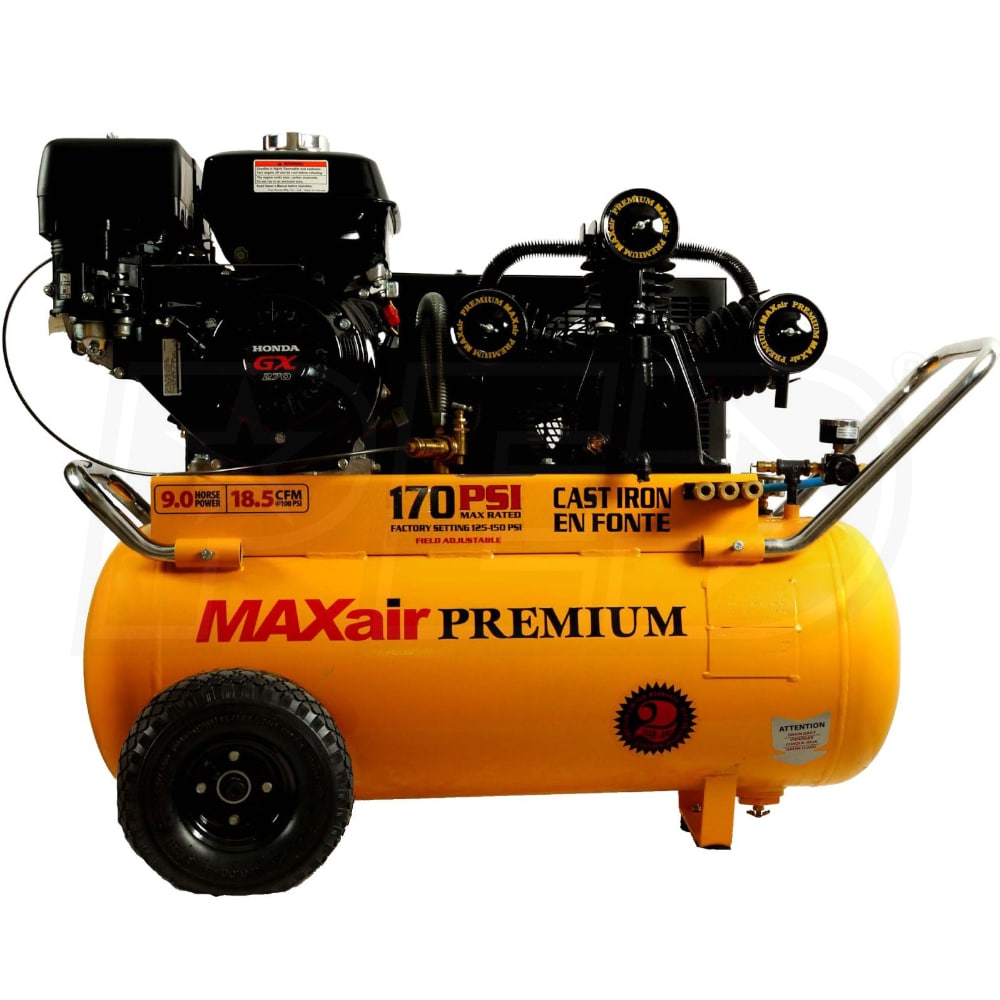

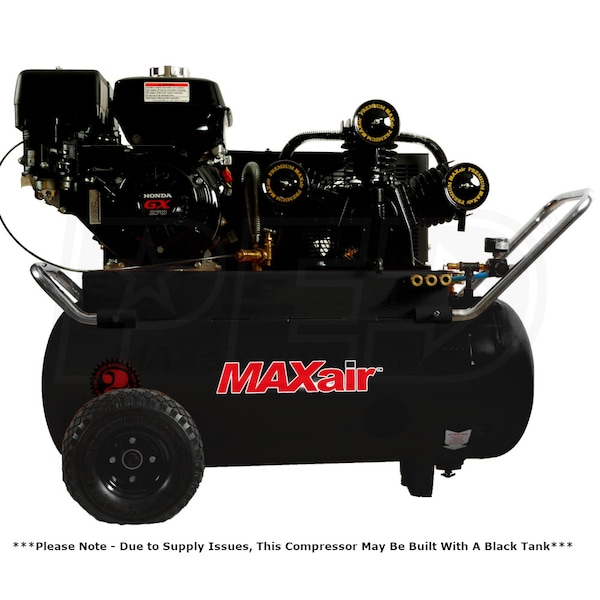

MAXair 9-HP 25-Gallon (Belt Drive) Air Compressor w/ Electric Start Honda GX270 Engine
Model:
P90GE25H1+MAP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Portable - Horizontal
Engine Brand
Honda GX
CFM
22
Tank Size
25
- Cast Iron Pump And Premium Air Filters
- Long lasting and easy to maintain
- "V" Design Minimizes Vibration
- Improves cooling and extends compressor life
- Individual & Removable Cylinders
- For smoother and cooler operation
- Electric Start w/ Recoil Backup
- Makes this compressor easy to start
- (Battery & Battery Cables Not Included)
- Reliable 9-HP Honda GX270 Engine - CARB Approved
- Commercial grade engine for reliable, smooth and quieter operation
- 25 Gallon Air Tank (ASME) w/ Liquid Filled Pressure Gauge
- Rated to 170 PSI; 22 CFM @ 100 PSI runs powerful tools
- Sturdy Pneumatic Tires
- Easy handling & maneuverability
- Efficient Heat Removal From Pulley-Fan
- For cooler running and longer life
- Sturdy Metal Belt Guard
- Protects you and the belt during operation & transport
- Outlet Valve & Regulator Included
- Easy view oil sight glass makes maintenance simple
- Generous 2 Year Factory Warranty
- Protects your investment
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
P90GE25H1+MAP
Engine
HP
9
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
25 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
200 Pounds
Certification
ASME
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
41 Inches
Product Width
19 Inches
Product Height
37 Inches
Power Type
Gas
UPC
020791502477
