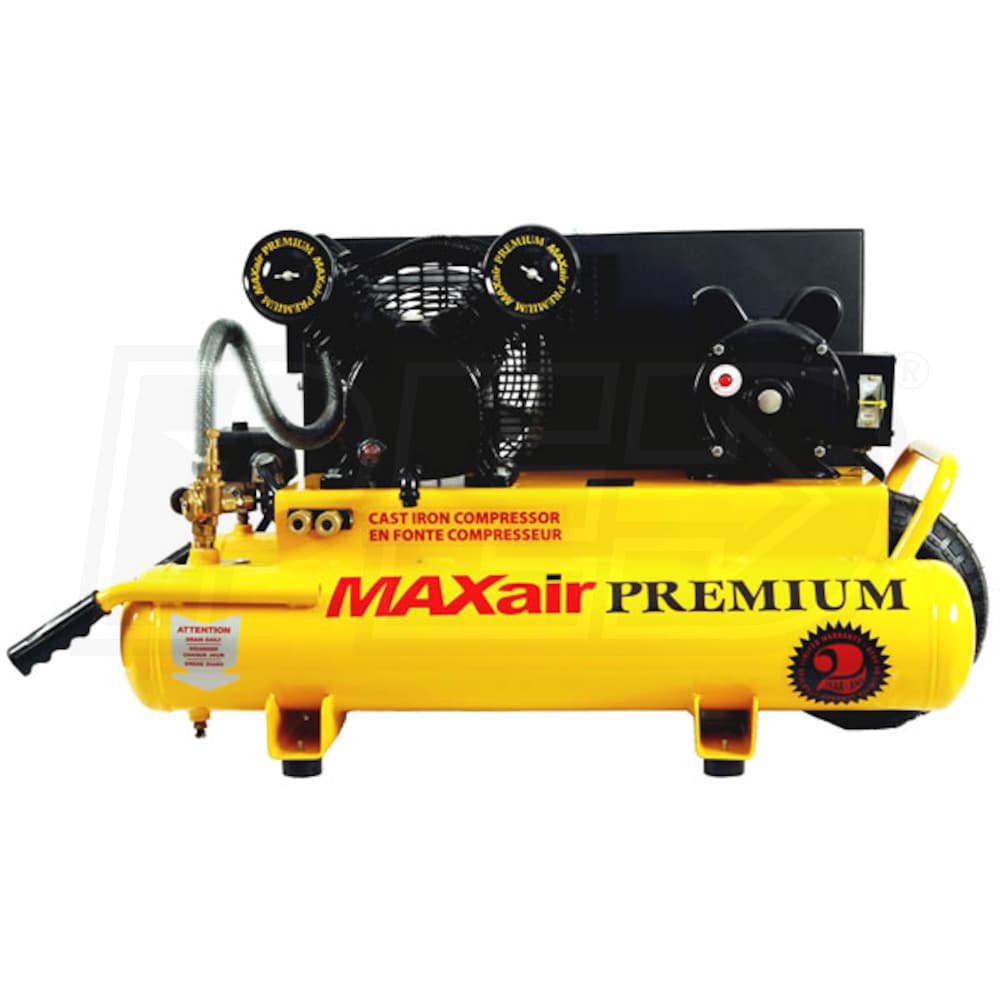

MAXair 3-HP 8-Gallon Electric Wheelbarrow Air Compressor (115V 1-Phase)
Model:
TT318E-DV-MAP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
CFM
6
Tank Size
8

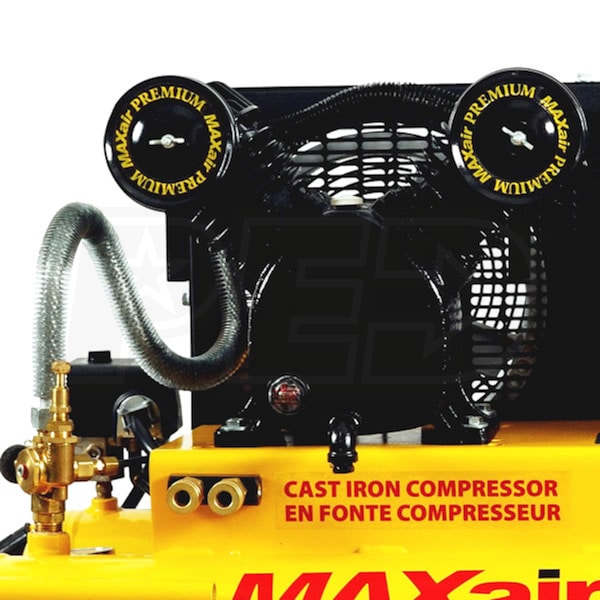

- Solid Cast Iron Pump Produces 6 CFM @ 100 PSI
- Rugged and durable to handle the tough jobs
- "V" Design
- Minimizes vibration, improves cooling, extends compressor
- Individual & Removable Cylinders
- For smoother, cooler operation & easy maintainence
- Thermally Protected 3-HP Motor
- Wired for 115 volt, single phase power; needs 15 amp circuit
- Can be changed to 230V, 7.5 amp service
- Twin Tank Wheelbarrow Style
- 8 gallons total of air in an easy to manuver configuration
- Easy To Maintain
- Convenient oil drain on front of unit
- Easy view sight gauge
- Metal Air Filters With Auto Drop Feature
- Keeps motor running cooler & lasting longer
- Two 1/4" Quick Connectors
- Easy access to run multiple tools at once
- 2 Year Manufacturer's Warranty
- Extends to 3 years with Service Kit added at time of purchase
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TT318E-DV-MAP
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Amp Draw
12.5
Engine
HP
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
6
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
Oil Type
Oil Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
160 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
48 Inches
Product Width
18 Inches
Product Height
22 Inches
Power Type
Electric
UPC
020791502026
