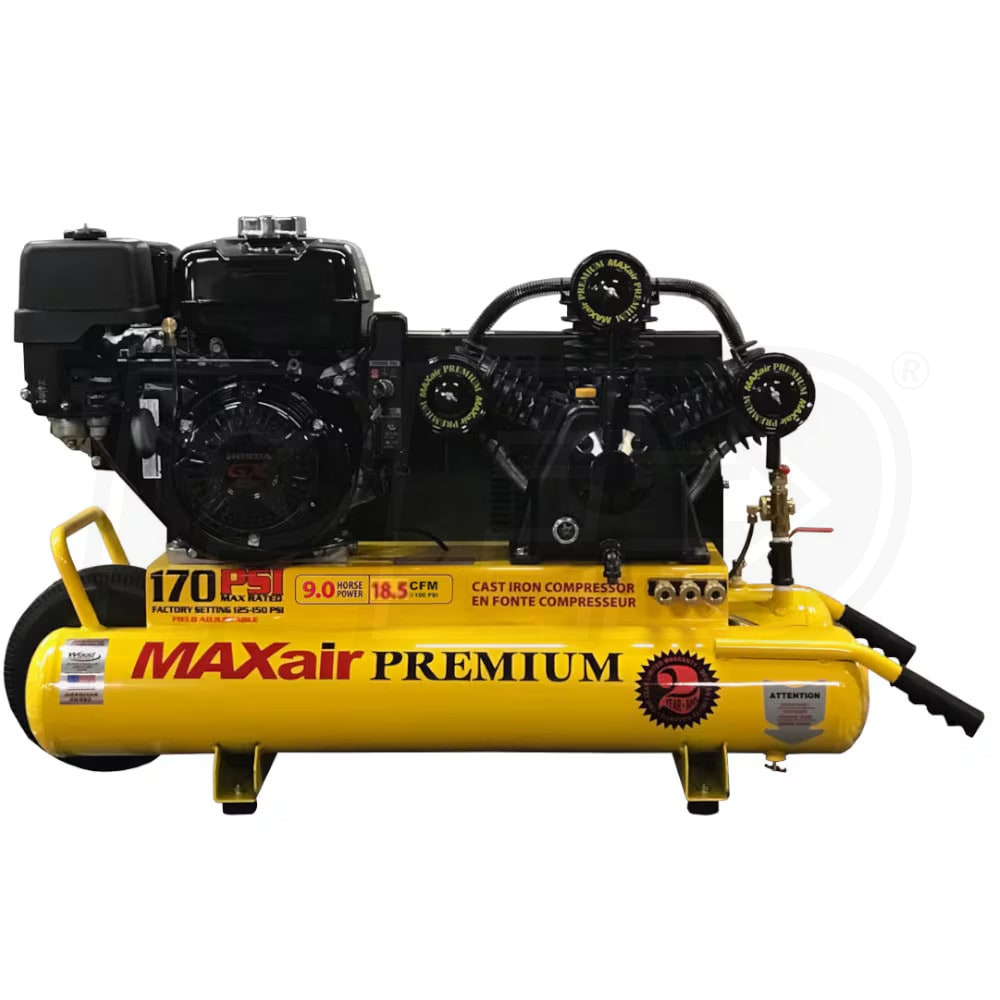

MAXair 9-HP 10-Gallon Gas Wheelbarrow Air Compressor w/ Honda Engine
Model:
TT90G-MAP
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda GX
CFM
18.5
Tank Size
10
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

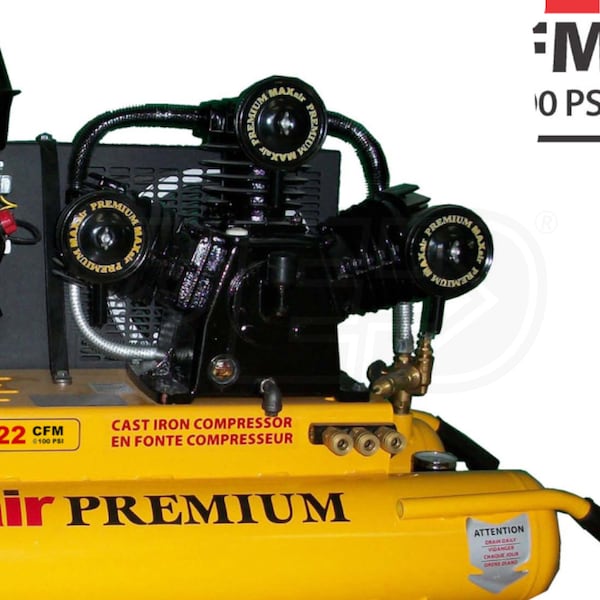

- Solid Cast Iron Pump
- Rugged and durable to handle the tough jobs
- "V" Design
- Minimizes vibration, improves cooling, extends compressor life
- Individual & Removable Cylinders
- For smoother, cooler operation & easy maintainence

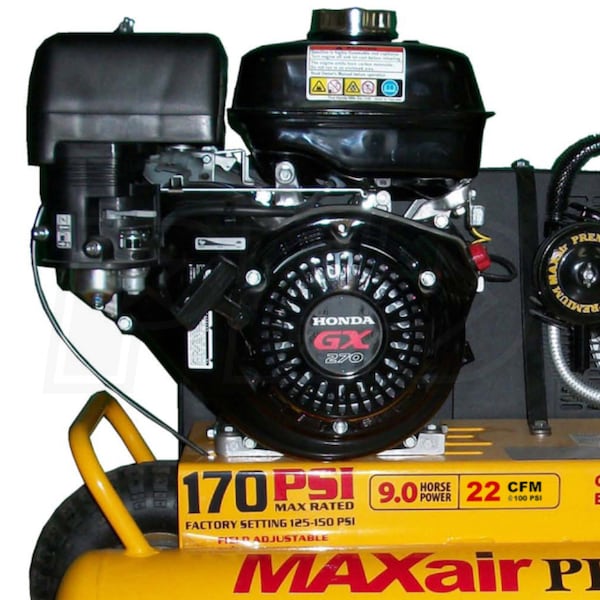

- Reliable Honda GX Engine- CARB Approved
- Commercial grade engine is easy to start, runs quietly
- Engine Slow-Down Control
- Reduces operating costs and unnecessary wear
- 10 Gallon Twin Air Tanks
- Largest in the industry
- Premium Air Filters
- Auto Drop feature is easy to maintain
- Outlet Control With 3 Quick Couplers
- Run several tools at the same time
- Steel Rim Tire
- Easy handling and manueverability
- Generous Factory Warranty
- 2 years for consumer or commercial use; 90 days on parts
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
TT90G-MAP
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18.5
CFM Rated @
100 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
170 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
10 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
215 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
50 Inches
Product Width
18 Inches
Product Height
28 Inches
Power Type
Gas
UPC
777589002779
