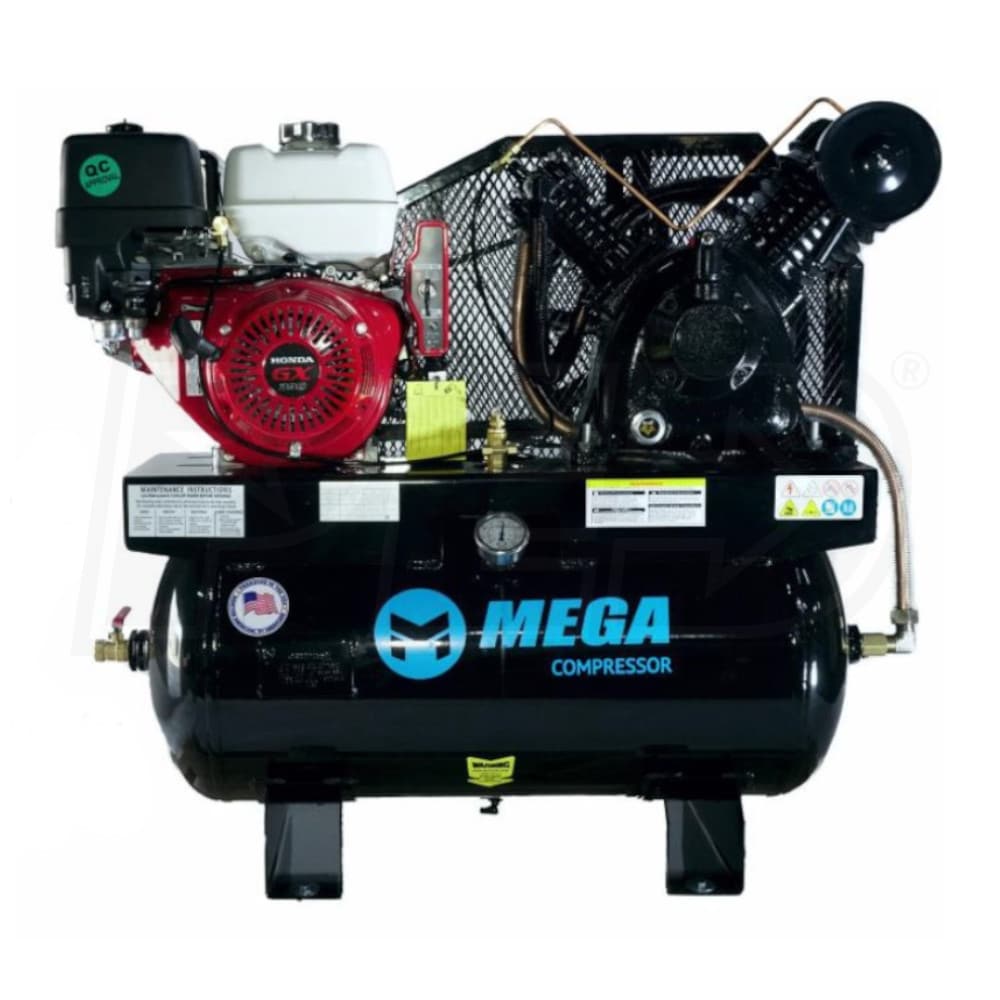

MEGA 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
MP-13030GTU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
19
Tank Size
30
- MEGA Truck Mounted 2-Stage Compressor
- Sturdy and reliable air pressure wherever you need it
- Designed for automotive, light industrial & other demanding jobs
- Powerful 13-HP Honda GX390 Electric Start Engine
- Reliable engine is easy to start; runs smooth & quiet
- OHV design for increased efficiency and optimal power transfer
- Electric and manual start for ease of operation (Battery & Cables Not Included)
- Produces 19 CFM @ 175 PSI: Max 180 PSI
- Plenty of power to run a wide range of air tools
- Low 880 RPM for less wear and tear & longer life span
- Cast Iron Splash Lubricated Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- One-Piece Cast Iron Crankcase
- "V" Design minimizes vibration and improves cooling
- Durable automotive-style ball bearing and stainless-steel reed valves
- Easy Viewing Oil Sight Glass
- Simply check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 30-Gallon ASME Tank w/ Pressure Gauge
- Sturdy metal belt guard protects the belt and the user
- Manual tank drain for quick tank draining to prevent rust
- 1-Year Limited Warranty
- Protects your investment
- Shipped with 100% full synthetic air compressor oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MP-13030GTU
General Information
Product Category
Air Compressor - Portable
Engine
HP
13
CC
389
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
19
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
500 Pounds
CARB Compliant
No
Certification
ASME
Consumer Warranty
1 Year
Product Length
28 Inches
Product Width
48 Inches
Product Height
46 Inches
Power Type
Gas
UPC
376204971263
