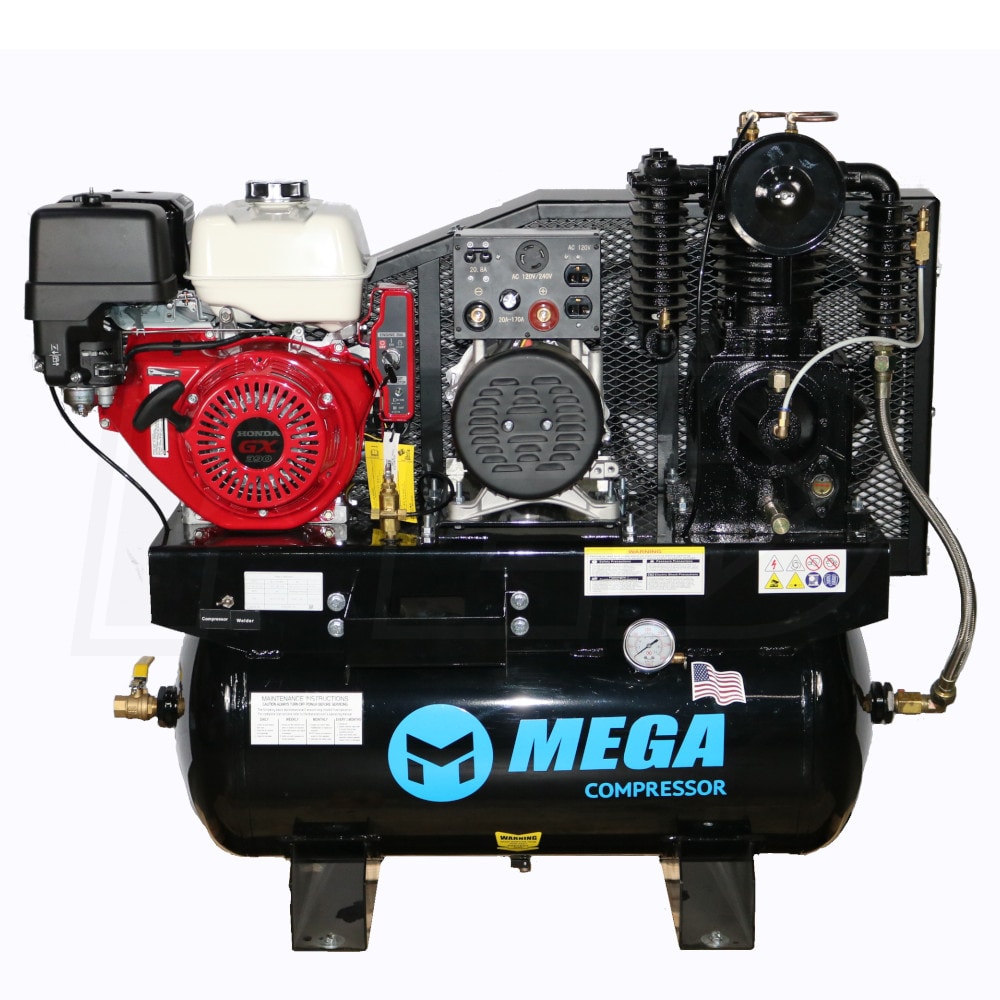

MEGA 13-HP 30-Gallon Two-Stage Truck Mount 3-In-1 Air Compressor /Generator/ Welder w/ Electric Start GX390 Honda Engine
Model:
MP-13030HWG
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
18
Tank Size
30
- MEGA 3-in-1 30 Gallon Air Compressor-Generator-Welder
- Supports the products needed for commercial service trucks
- Perfect for those remote jobs when electricity is not available
- Ideal for remote agricultural field service, construction & industrial applications
- 2-Stage Cast Iron Oil Lubricated Pump
- Runs the most demanding air tools; Max 175 PSI
- CFM Delivered 18.0 CFM @ 175 PSI; CFM Displaced 28 CFM
- Commercial-Grade Honda GX390 Electric Start Engine
- GX Series offers premium features with easy starting
- Low oil shutdown, quieter performance, and lower fuel consumption
- 5500-Watt Continuous Generator
- Great for providing power on the job
- (2) 120V 20-Amp Outlets & (1) 120/240V 30-Amp Twistlock Outlet
- 170 AMP (200 AMP Max) DC Stick Welder
- Designed for shielded metal arc welding and is capable of welding steel
- 30-Gallon ASME Tank
- Conveniently mounts to most truck beds
- Powder coated to resist rust and corrosion
- Belt Drive w/ Fully Enclosed Metal Belt Guard
- Dependable operation and low maintenance cost
- Sturdy metal belt guard protects the belt and the user
- ***Electric Start Battery & Cables Not Included; Must Be Purchased Separately***
Specifications
MP-13030HWG
Engine
HP
13
CC
389
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Battery Included
No
Engine Low Oil Shut-off
Yes
Consumer Engine Warranty
3
Commercial Engine Warranty
3
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
30 Gallons
Tank Included
Yes
Tank Outlet
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
602 Pounds
CARB Compliant
No
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
48 Inches
Product Height
48 Inches
Power Type
Gas
UPC
376204971379
