Features
Grade
Consumer
Style
Portable - Vertical
CFM
5.8
Tank Size
20

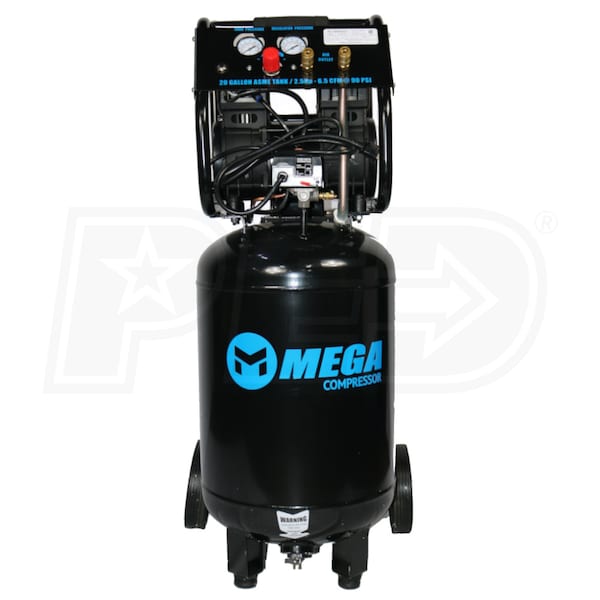

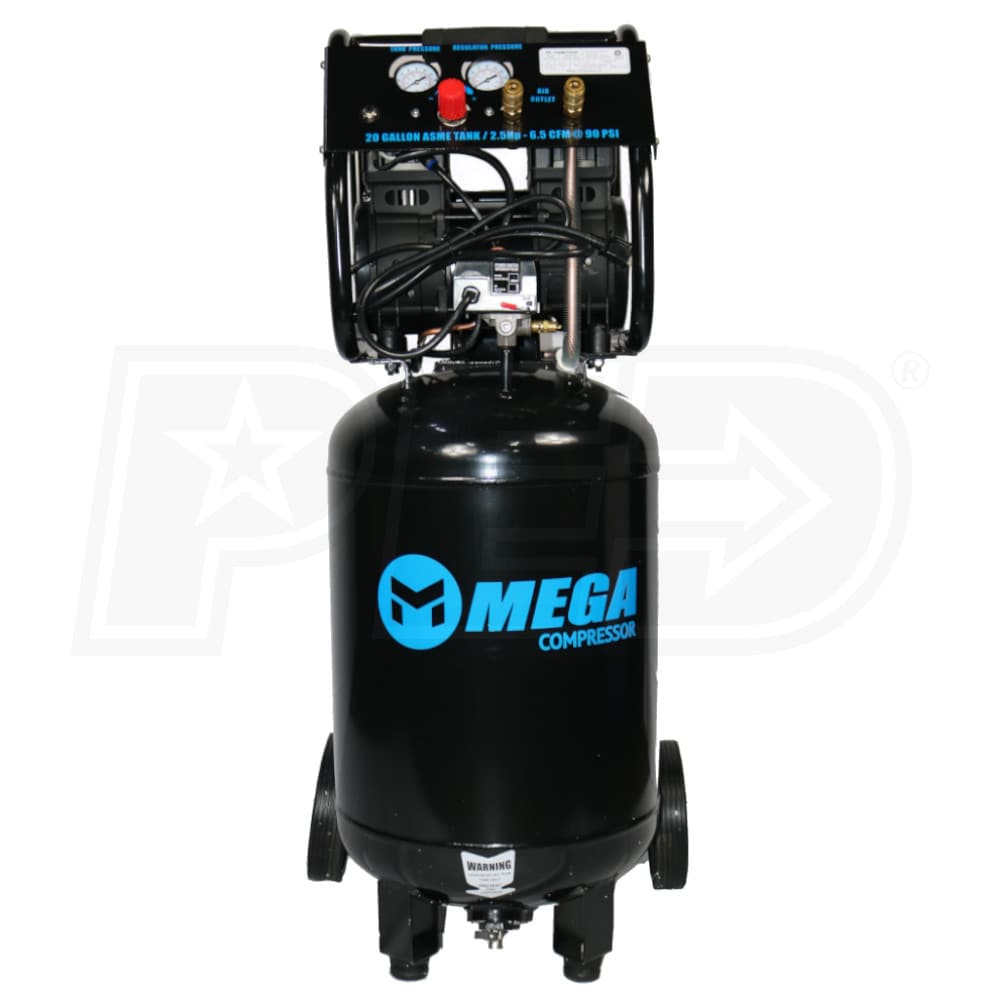

- MEGA 2-HP Portable Electric Air Compressor
- Great for powering inside finish air tools
- Ideal for indoor use where noise is an issue
- 110V Motor with Low 1725 RPM
- Includes overload reset; CSA Approved
- Produces only 63 dB, about the same as a conversation
- Oil-Free Pump
- Better cooling and works in a variety of temperatures
- Aluminum pump head dissipates heat for longer pump life
- Delivers 5.8 CFM @ 90 PSI; Max 125 PSI
- Use on the job or at home with all types of air tools
- Perfect for staple nail guns, airbrushes, inflating tires and more
- 20-Gallon Air Tank
- Includes wheels to easily move around
- Roll cage design protects vital components

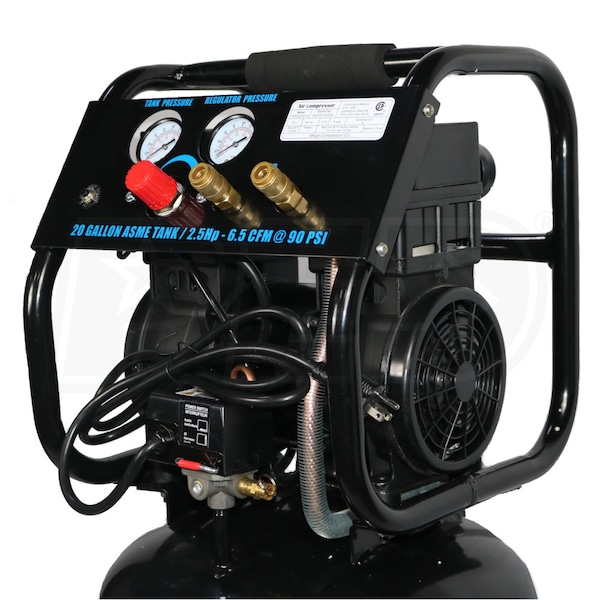

- Top Mounted Controls
- Two 1/4" air hose quick connector simplifies tool use
- Dual pressure gauges and built-in regulator for accurate pressure
- Manual Tank Drain
- Prevents air contamination with routine draining
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MP-2020EVO

General Information
Product Category
Air Compressor - Portable
Motor
Voltage
110 Volt AC
Phase
1-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
63
Amp Draw
13
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.8
CFM Rated @
90 PSI
CFM @ 40 PSI
7.2
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
20 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
130 Pounds
Certification
CSA
Consumer Warranty
1 Year
Product Length
18 Inches
Product Width
18 Inches
Product Height
46 Inches
Power Type
Electric
UPC
376204971447
